MATRIX / Ultra
Calf extension
Ultra Calf Extension
A selectorized weight stack station for leg and glute training.
- Contoured seat for support during exercise.
- Dedicated personal storage.
- Static dimensions
- 169 × 120 × 135 cm
- In-use dimensions
- 169 × 120 × 150 cm
- Weight stack
- 180 kg
PRODUCT DATA / G7-S77
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Performance & training system
- Maximum training weight
- 186.8 kg / 415 lbs
- Consistent 53-inch weight stack height
- Yes
- Weight stack guarding
- Full front and rear guards
- Cable system
- Internally lubricated cables & fittings
- Weight increments
- 9 kg / 20 lbs
- Total stack weight
- 180 kg / 400 lbs
- Incremental weight system
- 2.3, 4.5, 6.8 kg / 5, 10, 15 lbs
Dimensions, weight & installation
- In-use dimensions
- 169 x 120 x 150 cm / 66.5” x 47.2” x 59”
- Machine weight
- 291 kg / 642 lbs
- Static dimensions
- 169 x 120 x 135 cm / 66.5” x 47.2” x 53”
Construction, comfort & adjustment
- Rear placards
- Color-coded machine identification, exercise specific stretching
- Contoured seat
- Yes
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- Front placards
- Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Machine anchoring
- Independent machine anchoring brackets
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Integrated leveling system
- Yes, top-down leveler
- Placard color coding
- Blue (lower body)
- User adjustment range
- 8 User start options
- Color-coded pivots and adjustment points
- Yes
- Available frame colors
- Iced Silver, Matte Black, Gloss Black, Lace White, Polarized Titanium
Display, data & connectivity
- Equipment usage tracking
- Service mode tracks total reps and hours of use
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
- Rep counter battery life
- Approximately 3 years
- Rep counter power supply
- Two AA batteries
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.
Base Heavy

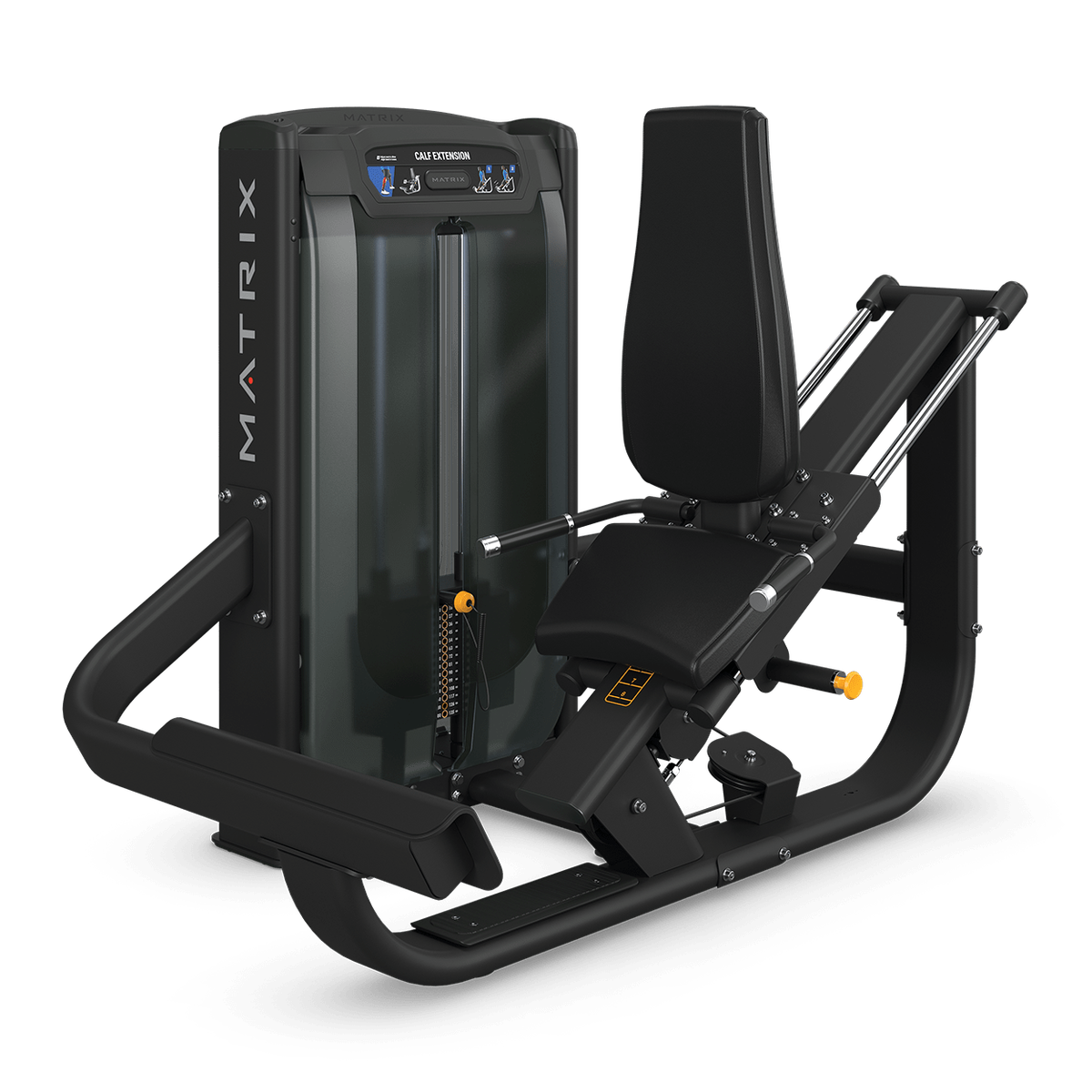

Official Matrix Base Trim image, shared by the B and BH models. The weight stack and specifications shown here refer to BH.
Version specifications
Performance & training system
- Maximum training weight (G7-S77BH)
- 180 kg / 400 lbs.
- Total Stack Weight (G7-S77BH)
- 180 kg / 400 lbs.
- Stack Height
- 135 cm / 53”
- Weight increments
- 9 kg / 20 lbs.
- Incremental weight system
- No
- Weight stack guarding
- Full front and rear guards
- Cable system
- Internally lubricated cables and fittings
Dimensions, weight & installation
- Maximum user weight
- 136 kg / 300 lbs.
- Machine weight (G7-S77BH)
- 285 kg / 628 lbs.
- In-use dimensions
- 169 x 120 x 150 cm / 66.5” x 47.2” x 59”
- Static dimensions
- 169 x 120 x 135 cm / 66.5” x 47.2” x 53”
Construction, comfort & adjustment
- Front placards
- Muscle call outs, exercise-specific stretching, start and finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Rear placards
- Color-coded machine identification, exercise-specific stretching
- Placard color coding
- Blue (lower body)
- Personal storage
- Two tactile storage mats and one personal device cradle
- Contoured seat
- Yes
- User adjustment range
- 8 user start options
- Integrated leveling system
- Yes, top-down leveler
- Machine anchoring
- Independent machine anchoring brackets
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Available frame colors
- Iced Silver, Matte Black, Graphite Grey, Gloss Black, Lace White, Polarized Titanium
- Color-coded pivots and adjustment points
- Yes
Display, data & connectivity
- Rep counter
- No
Premium
ONYX

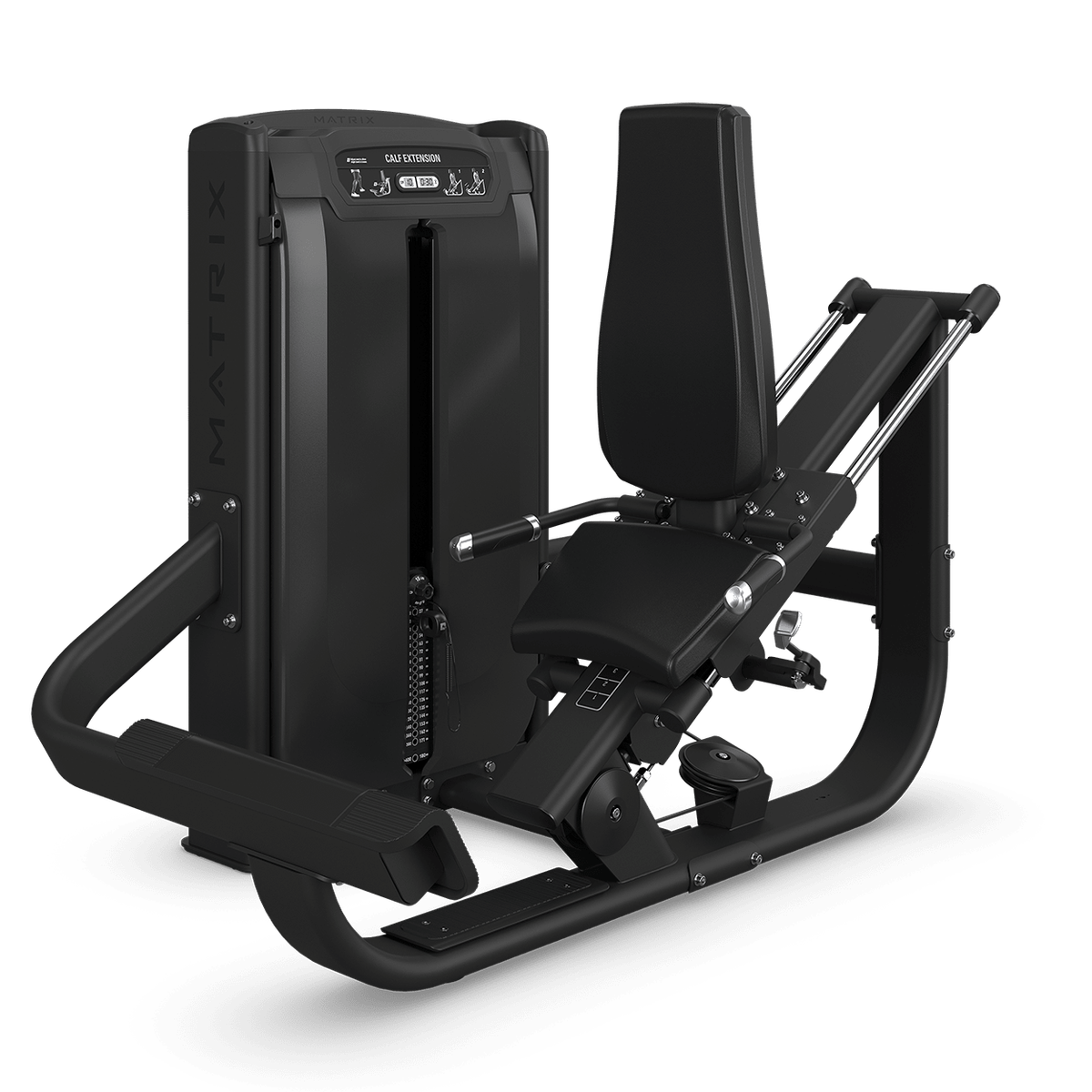

Manufacturer image of the ONYX version in Matte Black.
Version specifications
Performance & training system
- Maximum training weight
- 186.8 kg / 415 lbs
- Consistent 53-inch weight stack height
- Yes
- Weight stack guarding
- Full front and rear guards
- Cable system
- Internally lubricated cables & fittings
- Weight increments
- 9 kg / 20 lbs
- Total stack weight
- 180 kg / 400 lbs
- Incremental weight system
- 2.3, 4.5, 6.8 kg / 5, 10, 15 lbs
Dimensions, weight & installation
- In-use dimensions
- 169 x 120 x 150 cm / 66.5” x 47.2” x 59”
- Machine weight
- 291 kg / 642 lbs
- Static dimensions
- 169 x 120 x 135 cm / 66.5” x 47.2” x 53”
Construction, comfort & adjustment
- Rear placards
- Color-coded machine identification, exercise specific stretching
- Contoured seat
- Yes
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- Front placards
- Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Machine anchoring
- Independent machine anchoring brackets
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Integrated leveling system
- Yes, top-down leveler
- Placard color coding
- Blue (lower body)
- User adjustment range
- 8 User start options
- Color-coded pivots and adjustment points
- Yes
- Available frame colors
- Matte Black
Display, data & connectivity
- Equipment usage tracking
- Service mode tracks total reps and hours of use
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
- Rep counter battery life
- Approximately 3 years
- Rep counter power supply
- Two AA batteries
