MATRIX / Ultra
Linked-arm biceps curl
Ultra Dependent Arm Curl
A selectorized weight stack station for arm training.
- Contoured seat for support during exercise.
- Dedicated personal storage.
- Static dimensions
- 115.5 × 106.5 × 135 cm
- In-use dimensions
- 149 × 106.5 × 135 cm
- Weight stack
- 90 kg
- Maximum user weight
- 136 kg
PRODUCT DATA / G7-S41
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Construction, comfort & adjustment
- Color-coded pivots and adjustment points
- Yes
- Available frame colors
- Iced Silver, Matte Black, Gloss Black, Lace White, Polarized Titanium
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Front placards
- Muscle call outs, exercise-specific stretching, start and finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Rear placards
- Color-coded machine identification, exercise-specific stretching
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- Contoured seat
- Yes
- Rotating arm supports
- Yes
- Action Specific Grips™
- Exercise-specific grips improving feel, function and form during use, rotating grips for added comfort
- Placard color coding
- Yellow (upper body)
- Elbow guards
- Yes
- Integrated leveling system
- Yes, top-down leveler
- User adjustment range
- 7-position seat
- Machine anchoring
- Independent machine anchoring brackets
Dimensions, weight & installation
- Machine weight
- 225.7 kg / 498 lbs.
- Maximum user weight
- 136 kg / 300 lbs.
- Static dimensions
- 115.5 x 106.5 x 135 cm / 45.5” x 42” x 53”
- In-use dimensions
- 149 x 106.5 x 135 cm / 59” x 42” x 53”
Performance & training system
- Cable system
- Internally lubricated cables and fittings
- Consistent 53-inch weight stack height
- Yes
- Weight stack guarding
- Full front and rear guards
- Weight increments
- 4.5 kg / 10 lbs.
- Incremental weights
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs.
- Weight stack
- 90 kg / 200 lbs.
- Maximum training weight
- 93.4 kg / 207.5 lbs.
Display, data & connectivity
- Rep counter battery life
- Approximately 3 years
- Equipment usage tracking
- Service mode tracks total reps and hours of use
- Rep counter power supply
- Two AA batteries
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.
Base Heavy

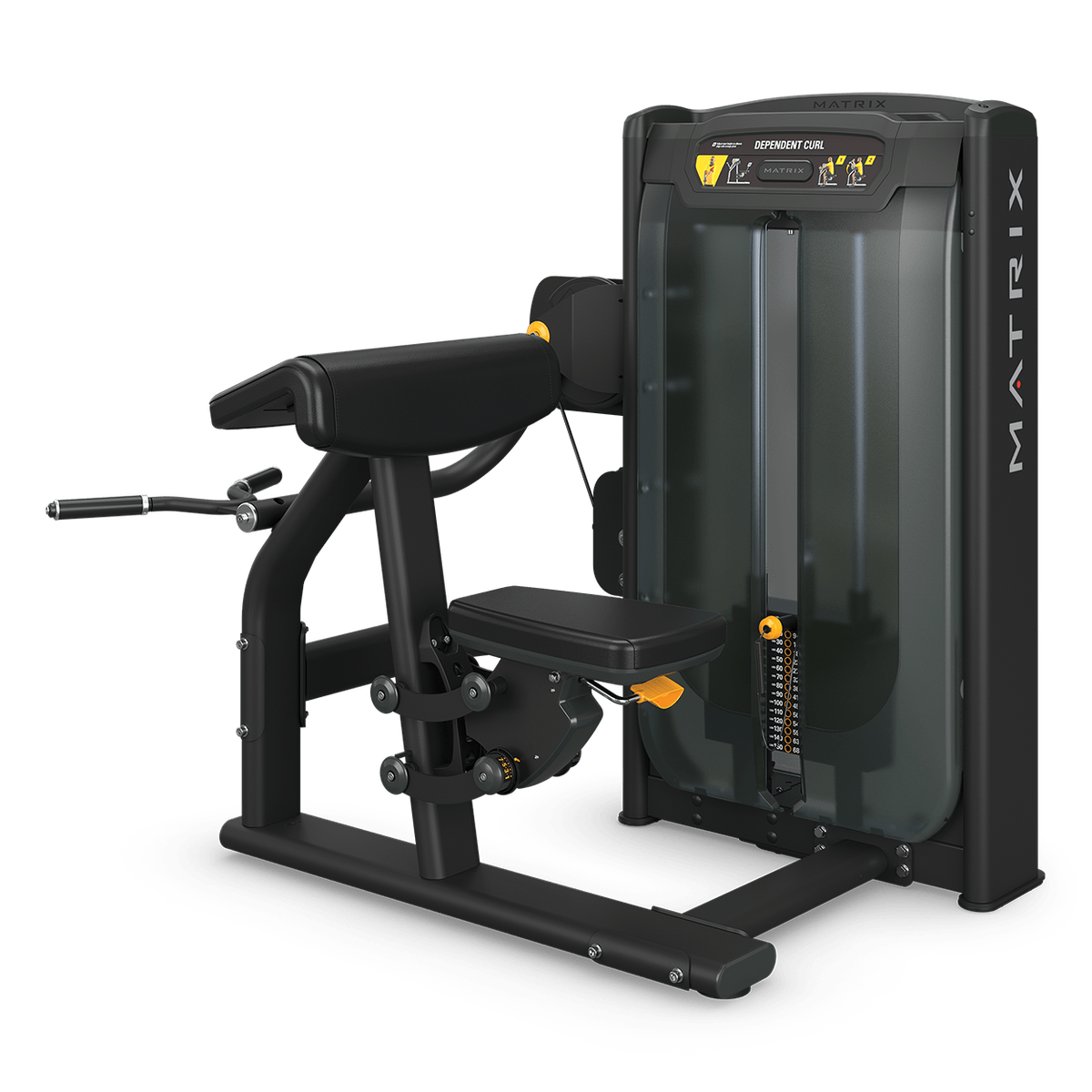

Official Matrix Base Trim image, shared by the B and BH models. The weight stack and specifications shown here refer to BH.
Version specifications
Dimensions, weight & installation
- Dimensions (L × W × H)
- 149 x 106.5 x 135 cm / 59” x 42” x 53”
- Maximum in-use dimensions
- 149 x 106.5 x 135 cm / 59” x 42” x 53”
- Machine weight (G7-S41BH)
- 221.2 kg / 488 lbs.
- Maximum user weight
- 136 kg / 300 lbs.
Performance & training system
- Maximum training weight (G7-S41BH)
- 90 kg / 200 lbs.
Premium
ONYX

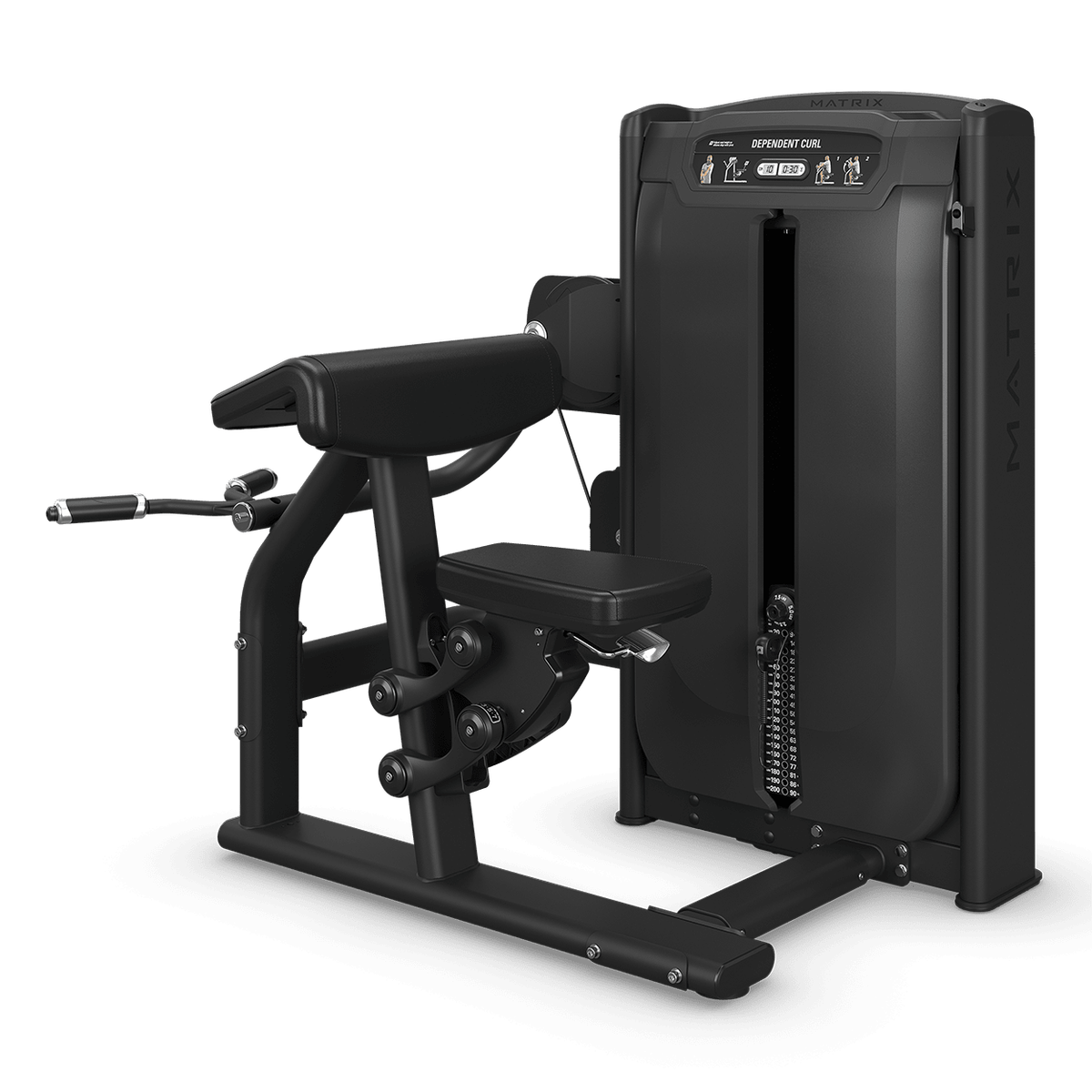

Manufacturer image of the ONYX version in Matte Black.
Version specifications
Construction, comfort & adjustment
- Color-coded pivots and adjustment points
- Yes
- Available frame colors
- Matte Black
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Front placards
- Muscle call outs, exercise-specific stretching, start and finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Rear placards
- Color-coded machine identification, exercise-specific stretching
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- Contoured seat
- Yes
- Rotating arm supports
- Yes
- Action Specific Grips™
- Exercise-specific grips improving feel, function and form during use, rotating grips for added comfort
- Placard color coding
- Yellow (upper body)
- Elbow guards
- Yes
- Integrated leveling system
- Yes, top-down leveler
- User adjustment range
- 7-position seat
- Machine anchoring
- Independent machine anchoring brackets
Dimensions, weight & installation
- Machine weight
- 225.7 kg / 498 lbs.
- Maximum user weight
- 136 kg / 300 lbs.
- Static dimensions
- 115.5 x 106.5 x 135 cm / 45.5” x 42” x 53”
- In-use dimensions
- 149 x 106.5 x 135 cm / 59” x 42” x 53”
Performance & training system
- Cable system
- Internally lubricated cables and fittings
- Consistent 53-inch weight stack height
- Yes
- Weight stack guarding
- Full front and rear guards
- Weight increments
- 4.5 kg / 10 lbs.
- Incremental weights
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs.
- Weight stack
- 90 kg / 200 lbs.
- Maximum training weight
- 93.4 kg / 207.5 lbs.
Display, data & connectivity
- Rep counter battery life
- Approximately 3 years
- Equipment usage tracking
- Service mode tracks total reps and hours of use
- Rep counter power supply
- Two AA batteries
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
