MATRIX / Ultra
Triceps extension
Ultra Triceps Extension
A selectorized weight stack station for arm training.
- Contoured seat for support during exercise.
- Dedicated personal storage.
- Static dimensions
- 116 × 106.5 × 135 cm
- In-use dimensions
- 144.5 × 106.5 × 135 cm
- Weight stack
- 81 kg
- Maximum user weight
- 136 kg
PRODUCT DATA / G7-S45
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Dimensions, weight & installation
- Maximum user weight
- 136 kg / 300 lbs.
- Static dimensions
- 116 x 106.5 x 135 cm / 45.75” x 42” x 53”
- In-use dimensions
- 144.5 x 106.5 x 135 cm / 57” x 42” x 53”
- Machine weight
- 239.2 kg / 527.5 lbs.
Performance & training system
- Weight stack guarding
- Full front and rear guards
- Cable system
- Internally lubricated cables and fittings
- Incremental weights
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs.
- Weight stack
- 81 kg / 180 lbs.
- Weight increments
- 4.5 kg / 10 lbs.
- Maximum training weight
- 84.4 kg / 187.5 lbs.
- Consistent 53-inch weight stack height
- Yes
Construction, comfort & adjustment
- Available frame colors
- Iced Silver, Matte Black, Gloss Black, Lace White, Polarized Titanium
- Color-coded pivots and adjustment points
- Yes
- Action Specific Grips™
- Exercise-specific grips improving feel, function and form during use, rotating grips for added comfort
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- User adjustment range
- 7-position seat
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- Integrated leveling system
- Yes, top-down leveler
- Machine anchoring
- Independent machine anchoring brackets
- Front placards
- Muscle call outs, exercise-specific stretching, start and finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Placard color coding
- Yellow (upper body)
- Rear placards
- Color-coded machine identification, exercise-specific stretching
- Elbow guards
- Yes
- Contoured seat
- Yes
- Rotating arm supports
- Yes
Display, data & connectivity
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
- Rep counter power supply
- Two AA batteries
- Rep counter battery life
- Approximately 3 years
- Equipment usage tracking
- Service mode tracks total reps and hours of use
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.

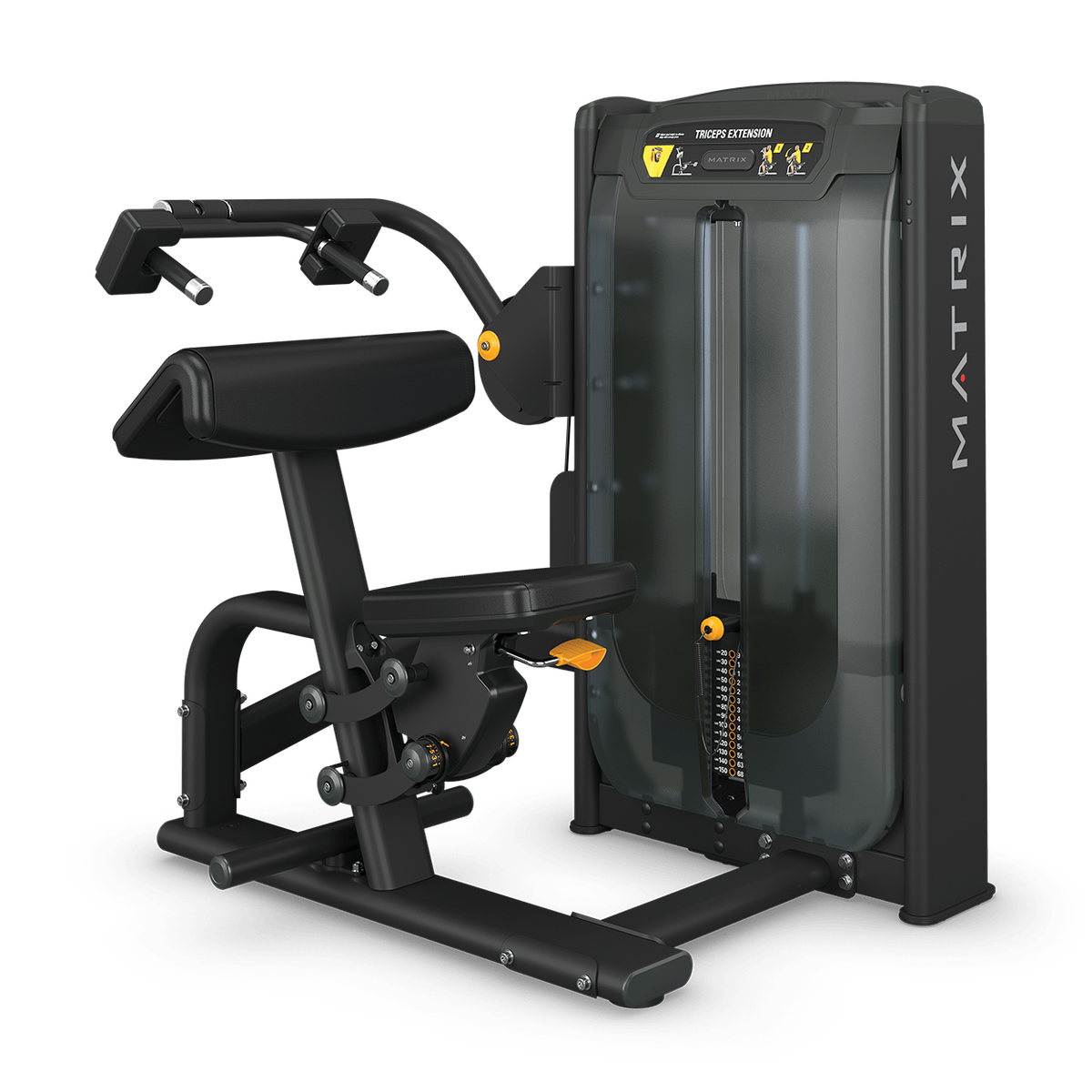

Base Heavy
Official Matrix Base Trim image, shared by the B and BH models. The weight stack and specifications shown here refer to BH.
Version specifications
Dimensions, weight & installation
- Maximum in-use dimensions
- 144.5 x 106.5 x 135 cm / 57” x 42” 53”
- Machine weight (G7-S45BH)
- 239.5 kg / 528 lbs.
- Dimensions (L × W × H)
- 116 x 106.5 x 135 cm / 45.75” x 42” x 53”
- Maximum user weight
- 136 kg / 300 lbs.
Performance & training system
- Maximum training weight (G7-S45BH)
- 81 kg / 180 lbs.
Premium

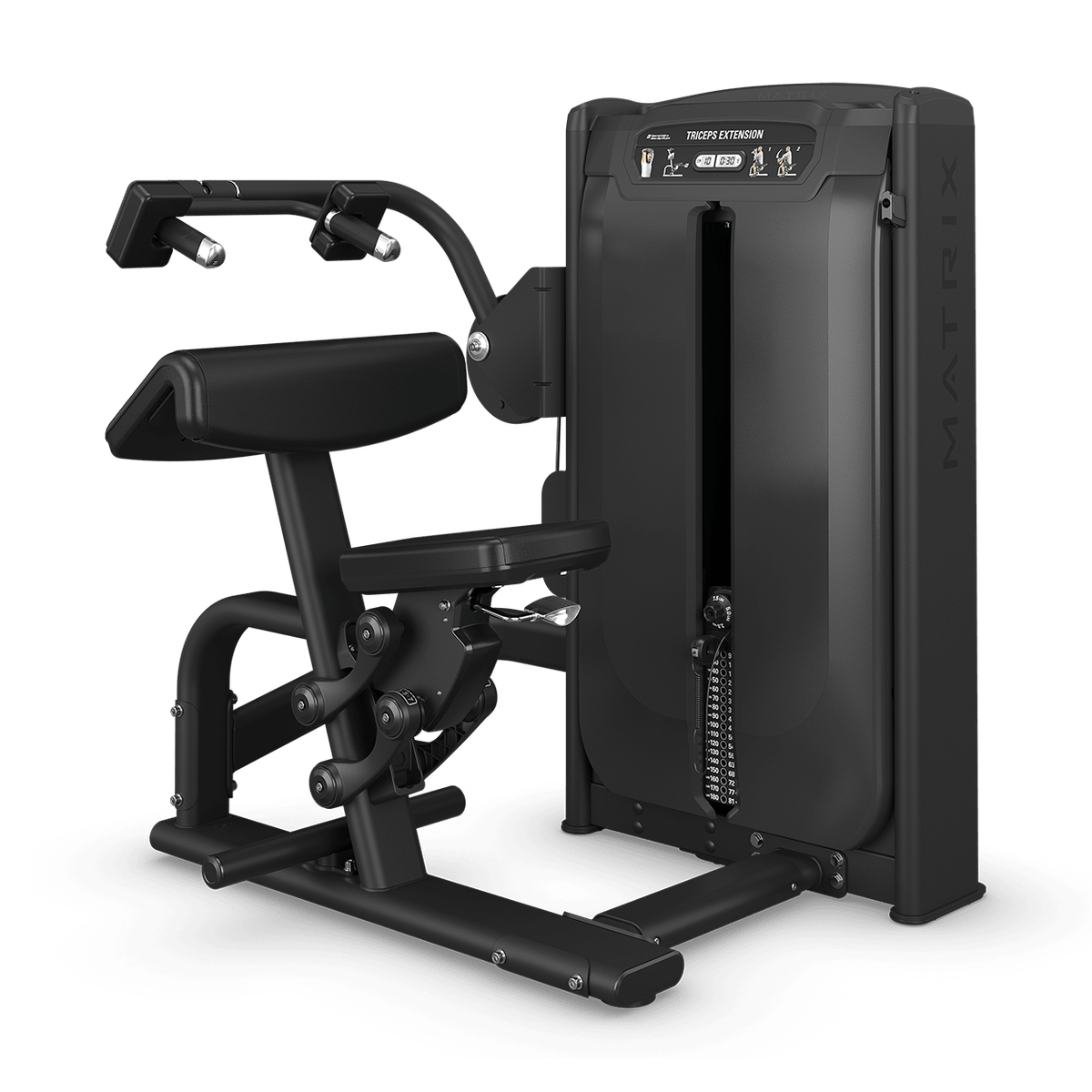

ONYX
Manufacturer image of the ONYX version in Matte Black.
Version specifications
Dimensions, weight & installation
- Maximum user weight
- 136 kg / 300 lbs.
- Static dimensions
- 116 x 106.5 x 135 cm / 45.75” x 42” x 53”
- In-use dimensions
- 144.5 x 106.5 x 135 cm / 57” x 42” x 53”
- Machine weight
- 239.2 kg / 527.5 lbs.
Performance & training system
- Weight stack guarding
- Full front and rear guards
- Cable system
- Internally lubricated cables and fittings
- Incremental weights
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs.
- Weight stack
- 81 kg / 180 lbs.
- Weight increments
- 4.5 kg / 10 lbs.
- Maximum training weight
- 84.4 kg / 187.5 lbs.
- Consistent 53-inch weight stack height
- Yes
Construction, comfort & adjustment
- Available frame colors
- Matte Black
- Color-coded pivots and adjustment points
- Yes
- Action Specific Grips™
- Exercise-specific grips improving feel, function and form during use, rotating grips for added comfort
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- User adjustment range
- 7-position seat
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- Integrated leveling system
- Yes, top-down leveler
- Machine anchoring
- Independent machine anchoring brackets
- Front placards
- Muscle call outs, exercise-specific stretching, start and finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Placard color coding
- Yellow (upper body)
- Rear placards
- Color-coded machine identification, exercise-specific stretching
- Elbow guards
- Yes
- Contoured seat
- Yes
- Rotating arm supports
- Yes
Display, data & connectivity
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
- Rep counter power supply
- Two AA batteries
- Rep counter battery life
- Approximately 3 years
- Equipment usage tracking
- Service mode tracks total reps and hours of use
DOCUMENTS / STAY IN THE DETAILS
Product dossier & manufacturer documents.
Printable product dossier
The images, specifications and options on this page, formatted for printing or saving as PDF through your browser.
Strength catalog 2026
The complete manufacturer catalog opens in a separate tab. Your product dossier stays open so you can continue selecting equipment.
Open catalog · PDFKnowledge library
More catalogs, PACE & seca, Resources for planning and equipment selection.
Explore the knowledge librarySources & manufacturer website
Specifications are based on data from MATRIX in this site’s catalog. Manufacturer specifications may change; final configuration, availability, warranty and delivery will be defined in the Eurotec quotation.
Open the source page at MATRIX ↗EXPLORE THE SERIES
