MATRIX / Ultra
Seated leg curl
G7-S72
Ultra Seated Leg Curl
A selectorized weight stack station for leg and glute training.
- Contoured seat for support during exercise.
- Dedicated personal storage.
- Static dimensions
- 148.5 × 117 × 135 cm
- In-use dimensions
- 148.5 × 117 × 135 cm
- Weight stack
- 90 kg
PRODUCT DATA / G7-S72
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Construction, comfort & adjustment
- Available frame colors
- Iced Silver, Matte Black, Gloss Black, Lace White, Polarized Titanium
- Machine anchoring
- Independent machine anchoring brackets
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- Color-coded pivots and adjustment points
- Yes
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Rear placards
- Color-coded machine identification, exercise specific stretching
- Assisted adjustment
- Spring assisted back pad
- User adjustment range
- 8 position back pad, 5 start positions, 4 position ankle pad, 10 position thigh pad (including top rest position)
- Contoured seat
- Yes
- Integrated leveling system
- Yes, top-down leveler
- Placard color coding
- Blue (lower body)
- Front placards
- Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
Performance & training system
- Weight stack guarding
- Full front and rear guards
- Maximum training weight
- 93.4 kg / 207.5 lbs
- Cable system
- Internally lubricated cables & fittings
- Consistent 53-inch weight stack height
- Yes
- Weight increments
- 4.5 kg / 10 lbs
- Total stack weight
- 90 kg / 200 lbs.
- Incremental weight system
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
Display, data & connectivity
- Equipment usage tracking
- Service mode tracks total reps and hours of use
- Rep counter battery life
- Approximately 3 years
- Rep counter power supply
- Two AA batteries
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
Dimensions, weight & installation
- Machine weight
- 314.7 kg / 694 lbs.
- In-use dimensions
- 148.5 x 117 x 135 cm / 58.4” x 46” x 53”
- Static dimensions
- 148.5 x 117 x 135 cm / 58.4” x 46” x 53”
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.
Base Heavy
G7-S72BH

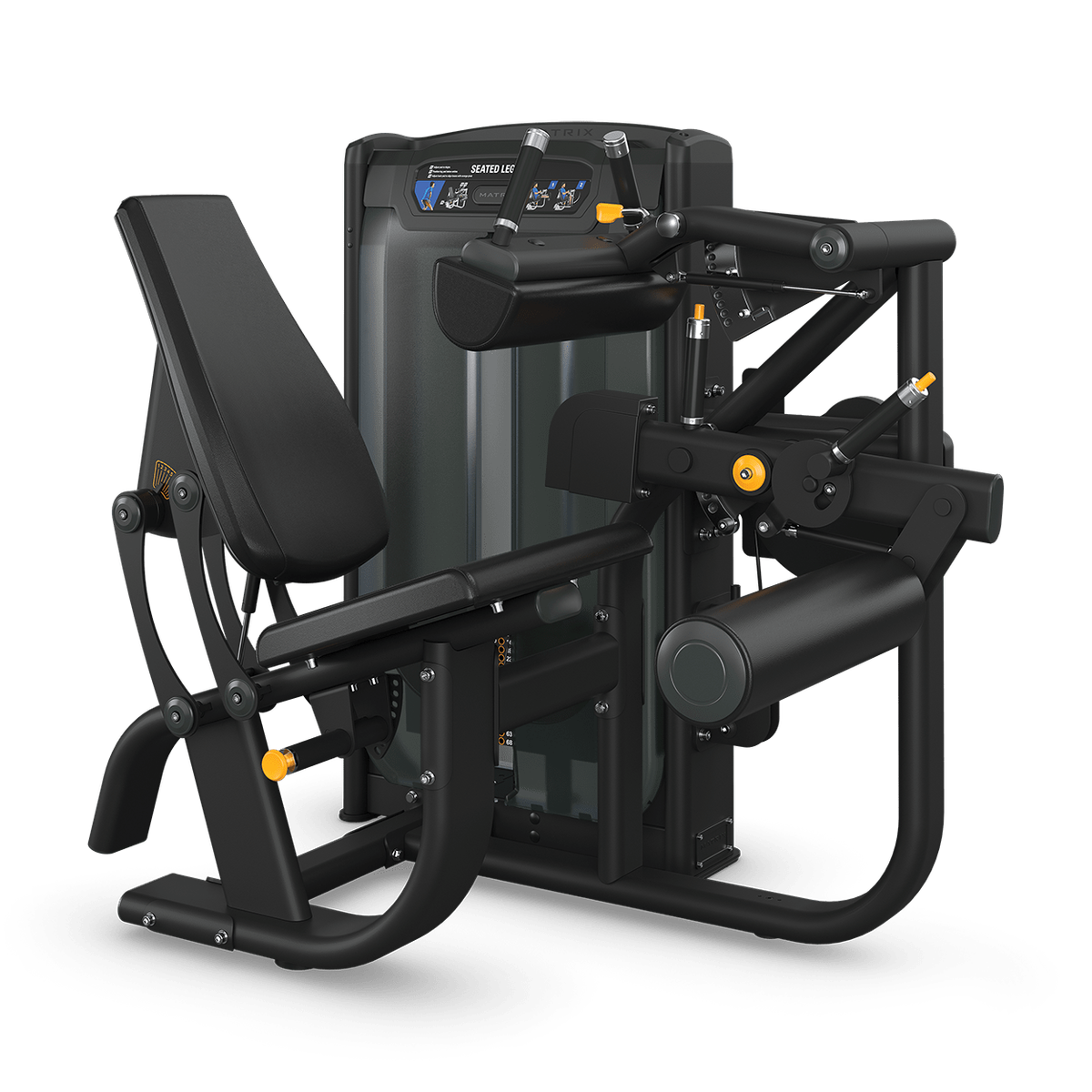

Official Matrix Base Trim image, shared by the B and BH models. The weight stack and specifications shown here refer to BH.
Version specifications
Construction, comfort & adjustment
- Placard color coding
- Blue (lower body)
- Front placards
- Muscle call outs, exercise-specific stretching, start and finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Integrated leveling system
- Yes, top-down leveler
- Personal storage
- Two tactile storage mats and one personal device cradle
- User adjustment range
- 8-position back pad, 5 start positions, 4-position ankle pad, 10-position thigh pad (including top rest position)
- Color-coded pivots and adjustment points
- Yes
- Machine-assisted User Adjustments
- Gas-assisted back pad
- Rear placards
- Color-coded machine identification, exercise-specific stretching
- Contoured seat
- Yes
- Available frame colors
- Iced Silver, Matte Black, Graphite Grey, Gloss Black, Lace White, Polarized Titanium
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Machine anchoring
- Independent machine anchoring brackets
Display, data & connectivity
- Rep counter
- No
Performance & training system
- Weight stack guarding
- Full front and rear guards
- Maximum training weight (G7-S72BH)
- 90 kg / 200 lbs.
- Total Stack Weight (G7-S72BH)
- 90 kg / 200 lbs.
- Weight increments
- 4.5 kg / 10 lbs.
- Stack Height
- 135 cm / 53”
- Incremental weight system
- No
- Cable system
- Internally lubricated cables and fittings
Dimensions, weight & installation
- Machine weight (G7-S72BH)
- 309.7 kg / 683 lbs.
- In-use dimensions
- 148.5 x 117 x 135 cm / 58.4” x 46” x 53”
- Maximum user weight
- 136 kg / 300 lbs.
Premium
G7-S72
Select this versionONYX
G7-S72-OE

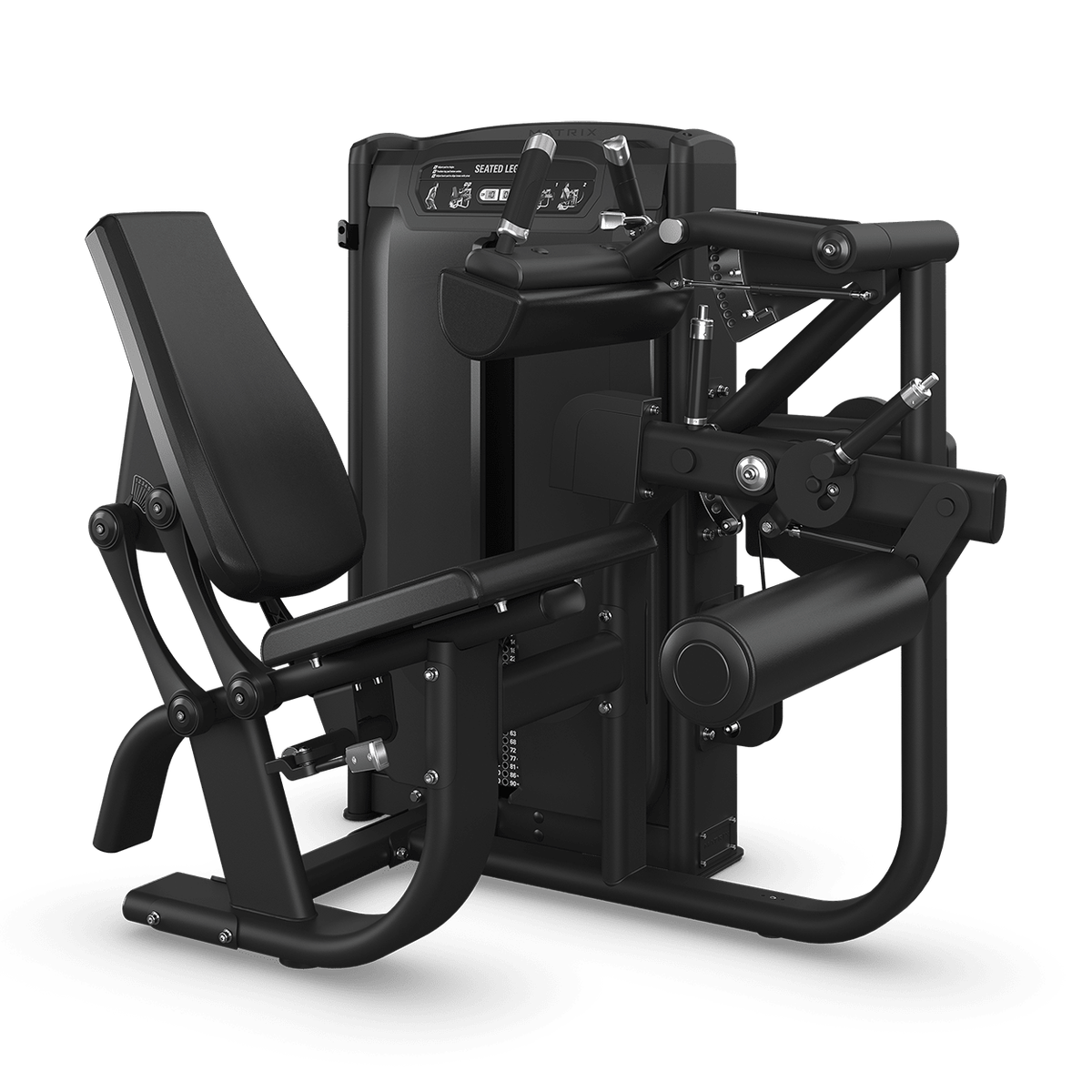

Manufacturer image of the ONYX version in Matte Black.
Version specifications
Construction, comfort & adjustment
- Available frame colors
- Matte Black
- Machine anchoring
- Independent machine anchoring brackets
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- Color-coded pivots and adjustment points
- Yes
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Rear placards
- Color-coded machine identification, exercise specific stretching
- Assisted adjustment
- Spring assisted back pad
- User adjustment range
- 8 position back pad, 5 start positions, 4 position ankle pad, 10 position thigh pad (including top rest position)
- Contoured seat
- Yes
- Integrated leveling system
- Yes, top-down leveler
- Placard color coding
- Blue (lower body)
- Front placards
- Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
Performance & training system
- Weight stack guarding
- Full front and rear guards
- Maximum training weight
- 93.4 kg / 207.5 lbs
- Cable system
- Internally lubricated cables & fittings
- Consistent 53-inch weight stack height
- Yes
- Weight increments
- 4.5 kg / 10 lbs
- Total stack weight
- 90 kg / 200 lbs.
- Incremental weight system
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
Display, data & connectivity
- Equipment usage tracking
- Service mode tracks total reps and hours of use
- Rep counter battery life
- Approximately 3 years
- Rep counter power supply
- Two AA batteries
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
Dimensions, weight & installation
- Machine weight
- 314.7 kg / 694 lbs.
- In-use dimensions
- 148.5 x 117 x 135 cm / 58.4” x 46” x 53”
- Static dimensions
- 148.5 x 117 x 135 cm / 58.4” x 46” x 53”
DOCUMENTS / STAY IN THE DETAILS
Product dossier & manufacturer documents.
PRODUCT DOSSIER
Printable product dossier
The images, specifications and options on this page, formatted for printing or saving as PDF through your browser.
MATRIX 2026 / OFFICIAL PDF
Strength catalog 2026
The complete manufacturer catalog opens in a separate tab. Your product dossier stays open so you can continue selecting equipment.
Open catalog · PDFMATRIX KNOWLEDGE
Knowledge library
More catalogs, PACE & seca, Resources for planning and equipment selection.
Explore the knowledge librarySources & manufacturer website
Specifications are based on data from MATRIX in this site’s catalog. Manufacturer specifications may change; final configuration, availability, warranty and delivery will be defined in the Eurotec quotation.
