MATRIX / Ultra

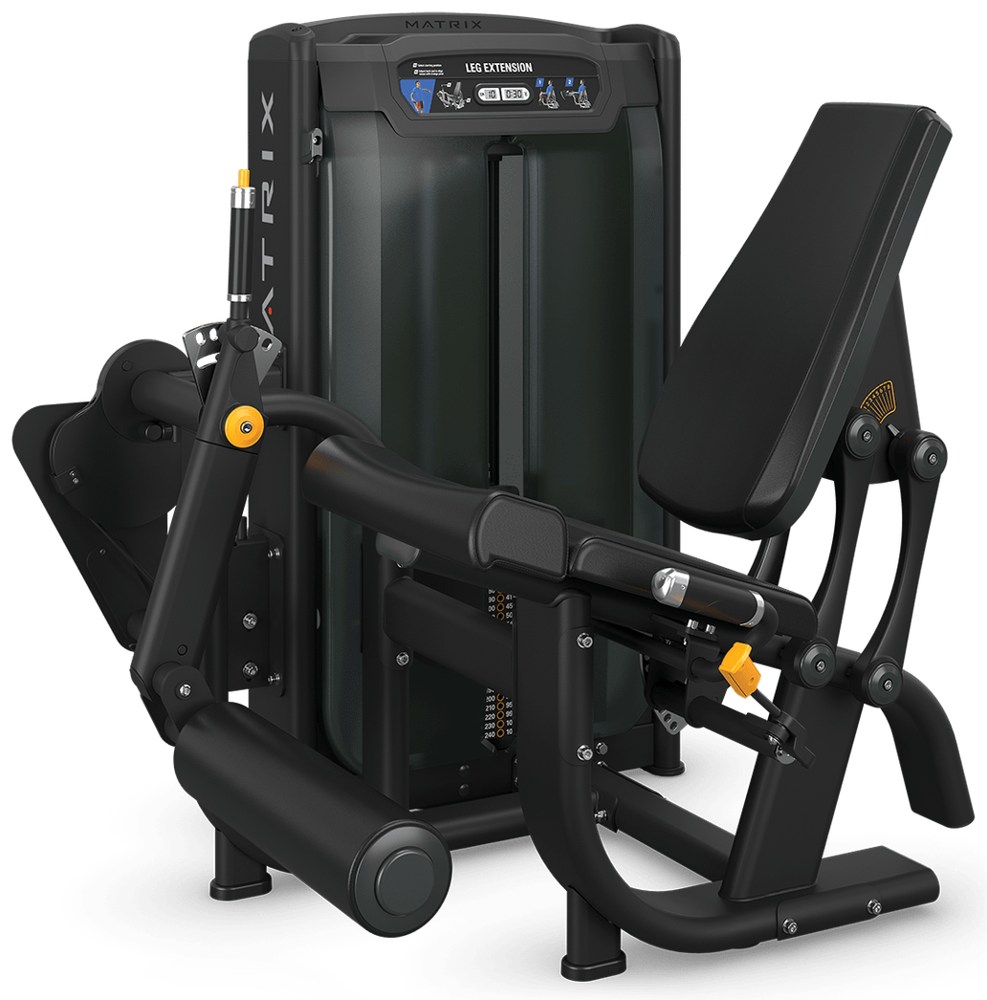

Leg extension
G7-S71
Ultra Leg Extension
A selectorized weight stack station for leg and glute training.
- Contoured seat for support during exercise.
- Dedicated personal storage.
- Static dimensions
- 122 × 125.9 × 135 cm
- In-use dimensions
- 152.4 × 125.9 × 135 cm
- Weight stack
- 108 kg
PRODUCT DATA / G7-S71
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Construction, comfort & adjustment
- Color-coded pivots and adjustment points
- Yes
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- User adjustment range
- 8 position back pad w/total range of 40 degrees, 6 Tibia pad positions 10 degrees apart
- Rear placards
- Color-coded machine identification, exercise specific stretching
- Available frame colors
- Iced Silver, Matte Black, Gloss Black, Lace White, Polarized Titanium
- Machine anchoring
- Independent machine anchoring brackets
- Integrated leveling system
- Yes, top-down leveler
- Contoured seat
- Yes
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Front placards
- Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Placard color coding
- Blue (lower body)
Display, data & connectivity
- Rep counter power supply
- Two AA batteries
- Rep counter battery life
- Approximately 3 years
- Equipment usage tracking
- Service mode tracks total reps and hours of use
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
Dimensions, weight & installation
- In-use dimensions
- 152.4 x 125.9 x 135 cm / 60” x 49.6” x 53”
- Machine weight
- 299.7 kg / 661 lbs.
- Static dimensions
- 122 x 125.9 x 135 cm / 48” x 49.6” x 53”
Performance & training system
- Total stack weight
- 108 kg / 240 lbs
- Weight increments
- 4.5 kg / 10 lbs
- Weight stack guarding
- Full front and rear guards
- Consistent 53-inch weight stack height
- Yes
- Maximum training weight
- 111.4 kg / 247.5 lbs
- Incremental weight system
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
- Cable system
- Internally lubricated cables & fittings
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.
Base Heavy
G7-S71BH

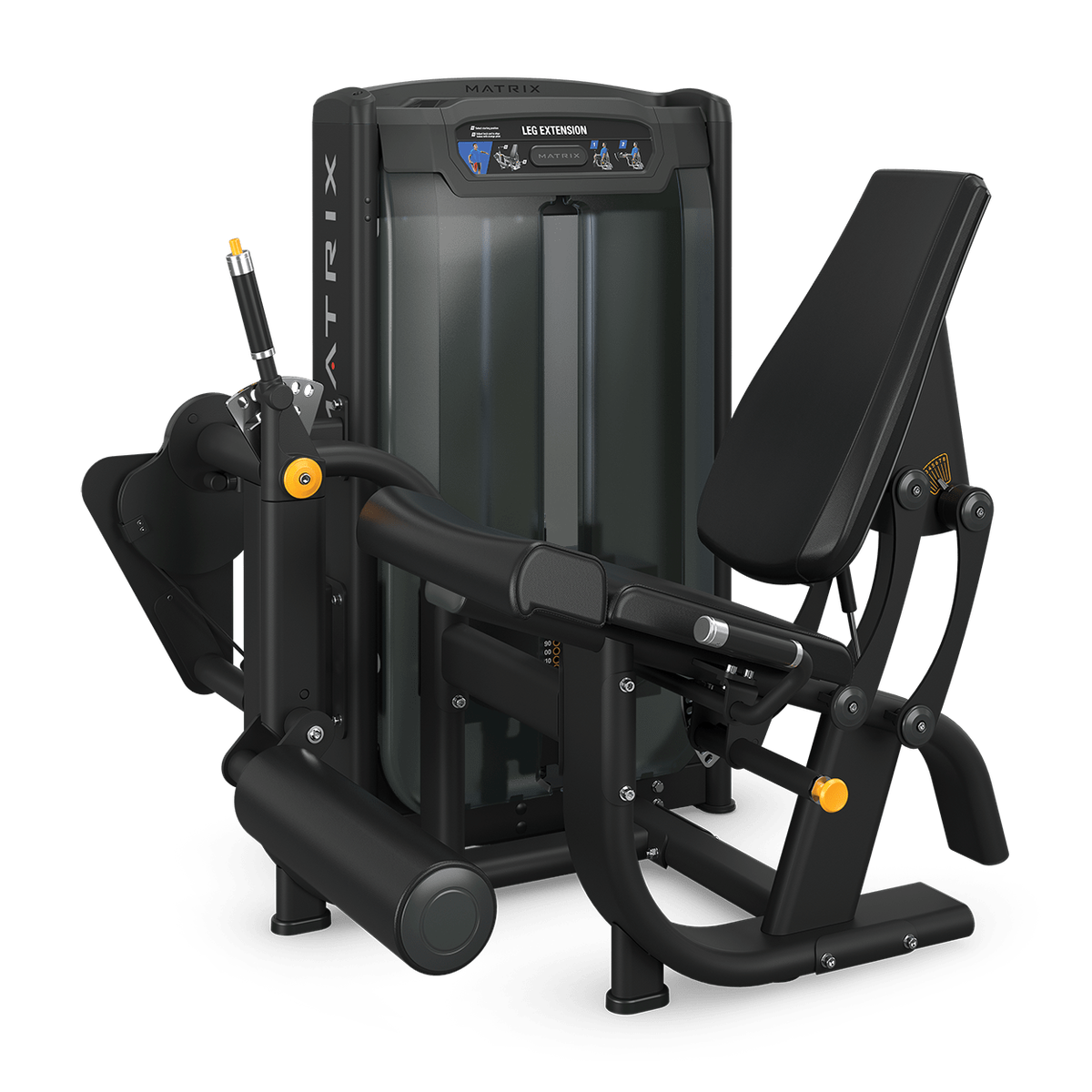

Official Matrix Base Trim image, shared by the B and BH models. The weight stack and specifications shown here refer to BH.
Version specifications
Construction, comfort & adjustment
- Front placards
- Muscle call outs, exercise-specific stretching, start and finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Integrated leveling system
- Yes, top-down leveler
- Rear placards
- Color-coded machine identification, exercise-specific stretching
- Personal storage
- Two tactile storage mats and one personal device cradle
- Placard color coding
- Blue (lower body)
- Contoured seat
- Yes
- Machine-assisted User Adjustments
- Gas-assisted back pad, self-aligning tibia pad
- Available frame colors
- Iced Silver, Matte Black, Graphite Grey, Gloss Black, Lace White, Polarized Titanium
- User adjustment range
- 8-position back pad with total range of 40 degrees, 6 tibia pad positions 10 degrees apart
- Machine anchoring
- Independent machine anchoring brackets
- Color-coded pivots and adjustment points
- Yes
- Frame finish
- Manufacturer’s proprietary two-coat powder process
Dimensions, weight & installation
- Maximum user weight
- 136 kg / 300 lbs.
- In-use dimensions
- 152.4 x 125.9 x 135 cm / 60” x 49.6” x 53”
- Static dimensions
- 122 x 125.9 x 135 cm / 48” x 49.6” x 53”
- Machine weight (G7-S71BH)
- 297 kg / 655 lbs.
Display, data & connectivity
- Rep counter
- No
Performance & training system
- Total Stack Weight (G7-S71BH)
- 108 kg / 240 lbs.
- Stack Height
- 135 cm / 53”
- Incremental weight system
- No
- Weight stack guarding
- Full front and rear guards
- Weight increments
- 4.5 kg / 10 lbs.
- Cable system
- Internally lubricated cables and fittings
- Maximum training weight (G7-S71BH)
- 108 kg / 240 lbs.
Premium
G7-S71
Select this versionONYX
G7-S71-OE

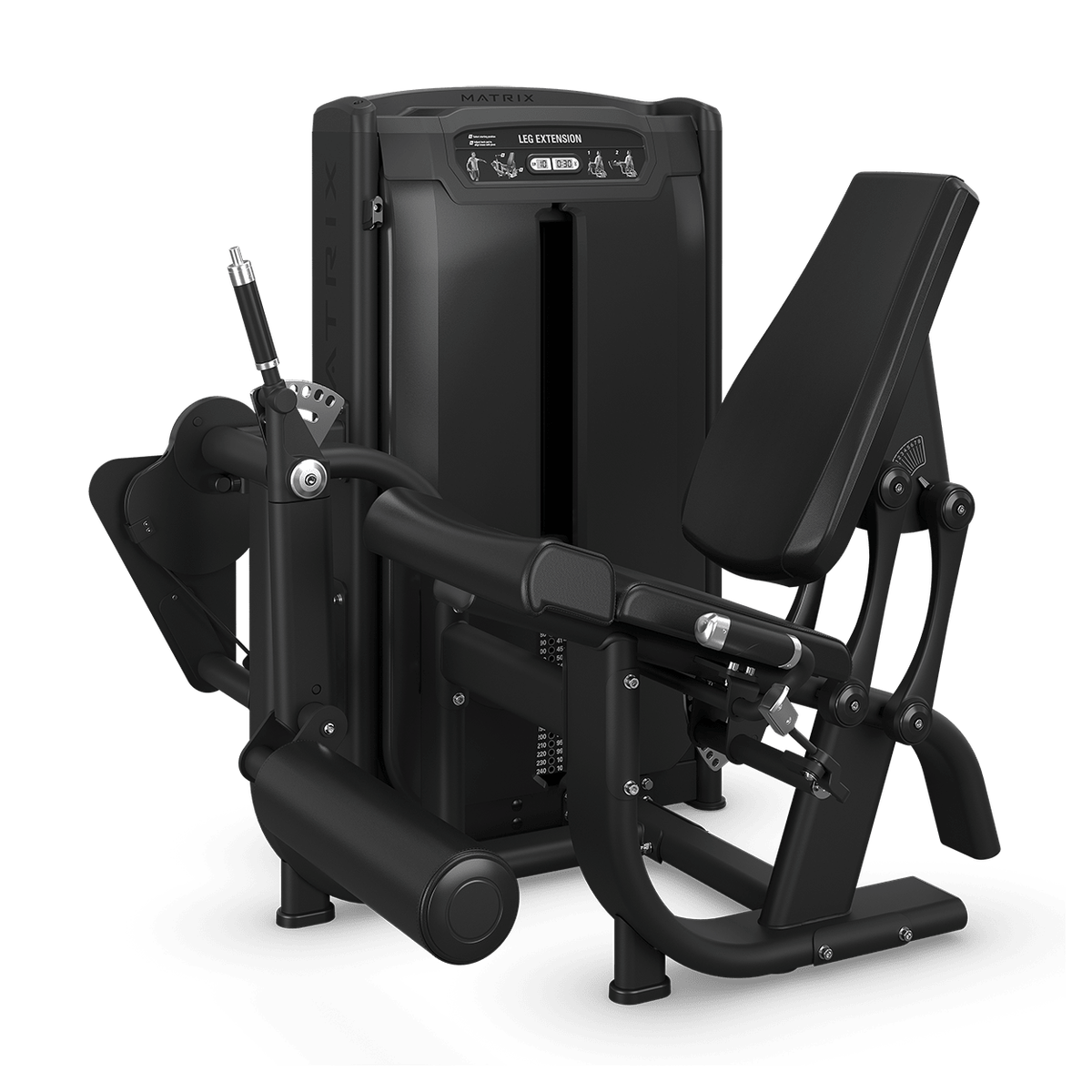

Manufacturer image of the ONYX version in Matte Black.
Version specifications
Construction, comfort & adjustment
- Color-coded pivots and adjustment points
- Yes
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- User adjustment range
- 8 position back pad w/total range of 40 degrees, 6 Tibia pad positions 10 degrees apart
- Rear placards
- Color-coded machine identification, exercise specific stretching
- Available frame colors
- Matte Black
- Machine anchoring
- Independent machine anchoring brackets
- Integrated leveling system
- Yes, top-down leveler
- Contoured seat
- Yes
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Front placards
- Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Placard color coding
- Blue (lower body)
Display, data & connectivity
- Rep counter power supply
- Two AA batteries
- Rep counter battery life
- Approximately 3 years
- Equipment usage tracking
- Service mode tracks total reps and hours of use
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
Dimensions, weight & installation
- In-use dimensions
- 152.4 x 125.9 x 135 cm / 60” x 49.6” x 53”
- Machine weight
- 299.7 kg / 661 lbs.
- Static dimensions
- 122 x 125.9 x 135 cm / 48” x 49.6” x 53”
Performance & training system
- Total stack weight
- 108 kg / 240 lbs
- Weight increments
- 4.5 kg / 10 lbs
- Weight stack guarding
- Full front and rear guards
- Consistent 53-inch weight stack height
- Yes
- Maximum training weight
- 111.4 kg / 247.5 lbs
- Incremental weight system
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
- Cable system
- Internally lubricated cables & fittings
DOCUMENTS / STAY IN THE DETAILS
Product dossier & manufacturer documents.
PRODUCT DOSSIER
Printable product dossier
The images, specifications and options on this page, formatted for printing or saving as PDF through your browser.
MATRIX 2026 / OFFICIAL PDF
Strength catalog 2026
The complete manufacturer catalog opens in a separate tab. Your product dossier stays open so you can continue selecting equipment.
Open catalog · PDFMATRIX KNOWLEDGE
Knowledge library
More catalogs, PACE & seca, Resources for planning and equipment selection.
Explore the knowledge librarySources & manufacturer website
Specifications are based on data from MATRIX in this site’s catalog. Manufacturer specifications may change; final configuration, availability, warranty and delivery will be defined in the Eurotec quotation.
