MATRIX / Ultra
Rotary torso

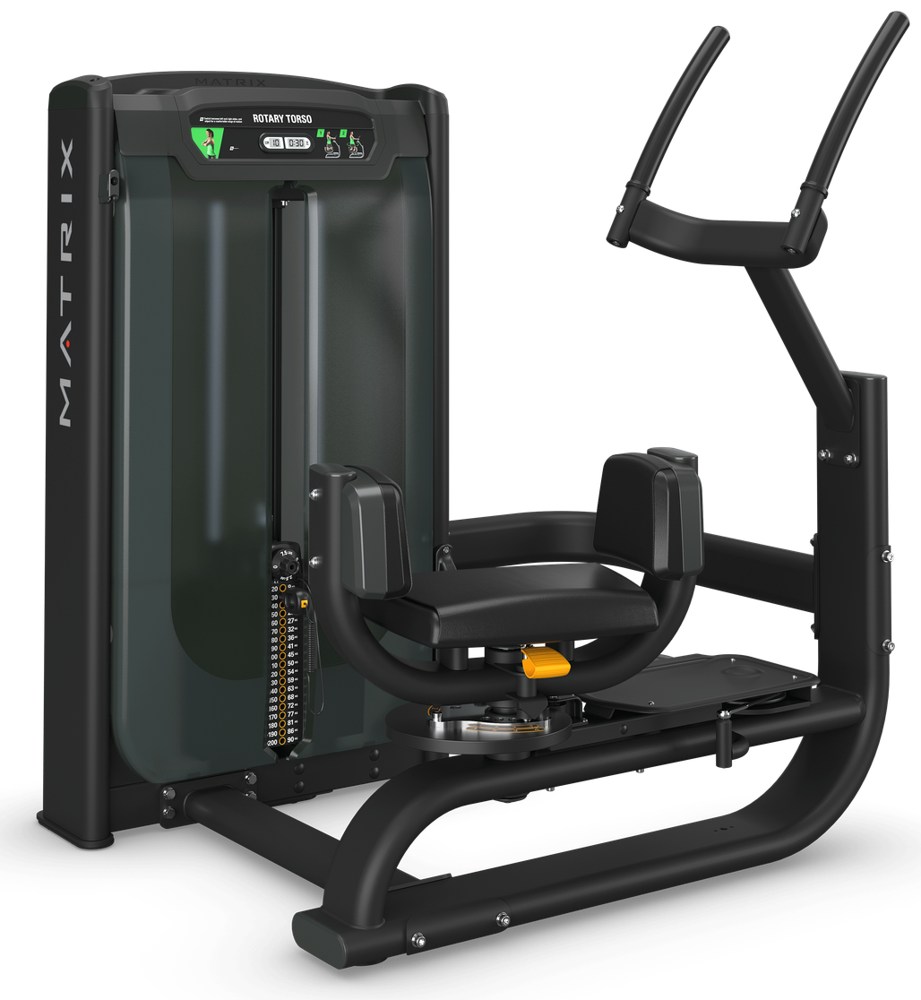

Ultra Rotary Torso
A selectorized weight stack station for abdominal and lower-back training.
- Contoured seat for support during exercise.
- Dedicated personal storage.
- Static dimensions
- 117 × 123 × 141 cm
- In-use dimensions
- 117 × 123 × 141 cm
- Weight stack
- 90 kg
PRODUCT DATA / G7-S55
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Construction, comfort & adjustment
- Color-coded pivots and adjustment points
- Yes
- Front placards
- Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
- User adjustment range
- 4 knee pad start positions on each side
- Rear placards
- Color-coded machine identification, exercise specific stretching
- Placard color coding
- Green (core)
- Knee Pad Wear Cover
- Yes
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- Contoured seat
- Yes
- Available frame colors
- Iced Silver, Matte Black, Gloss Black, Lace White, Polarized Titanium
- Machine anchoring
- Independent machine anchoring brackets
- Integrated leveling system
- Yes, top-down leveler
- Frame finish
- Manufacturer’s proprietary two-coat powder process
Display, data & connectivity
- Rep counter battery life
- Approximately 3 years
- Equipment usage tracking
- Service mode tracks total reps and hours of use
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
- Rep counter power supply
- Two AA batteries
Dimensions, weight & installation
- Machine weight
- 229 kg / 505 lbs.
- Static dimensions
- 117 x 123 x 141 cm / 45.8” x 48.2” x 55.2”
- In-use dimensions
- 117 x 123 x 141 cm / 45.8” x 48.2” x 55.2”
Performance & training system
- Maximum training weight
- 93.4 kg / 207.5 lbs
- Weight increments
- 4.5 kg / 10 lbs
- Weight stack guarding
- Full front and rear guards
- Total stack weight
- 90 kg / 200 lbs.
- Incremental weight system
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
- Consistent 53-inch weight stack height
- Yes
- Cable system
- Internally lubricated cables & fittings
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.
Base Heavy

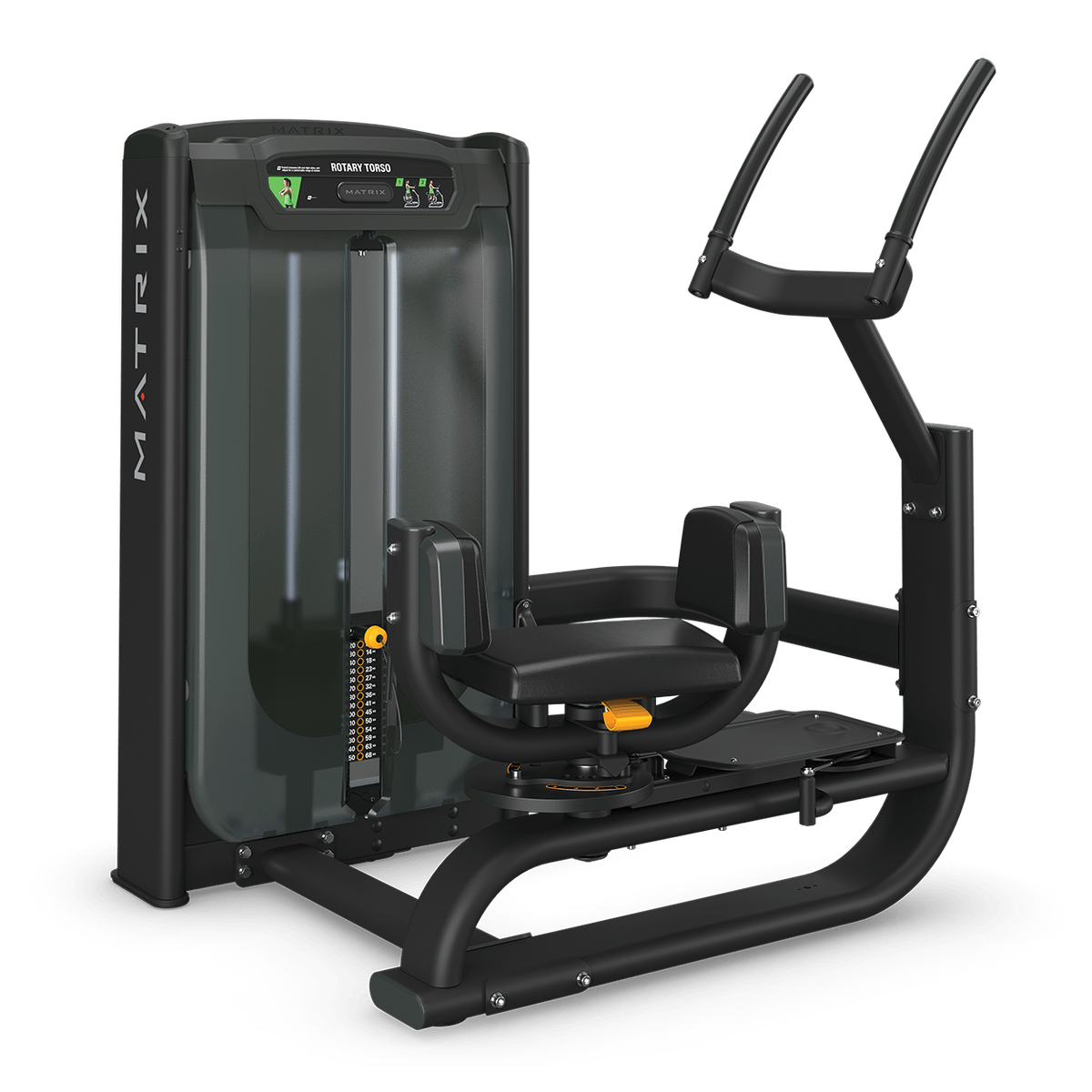

Official Matrix Base Trim image, shared by the B and BH models. The weight stack and specifications shown here refer to BH.
Version specifications
Performance & training system
- Maximum training weight (G7-S55BH)
- 90 kg / 200 lbs.
- Cable system
- Internally lubricated cables and fittings
- Total Stack Weight (G7-S55BH)
- 90 kg / 200 lbs.
- Stack Height
- 135 cm / 53”
- Weight increments
- 4.5 kg / 10 lbs.
- Incremental weight system
- No
- Weight stack guarding
- Full front and rear guards
Dimensions, weight & installation
- Maximum user weight
- 136 kg / 300 lbs.
- In-use dimensions
- 117 x 123 x 141 cm / 45.8” x 48.2” x 55.2”
- Static dimensions
- 117 x 123 x 141 cm / 45.8” x 48.2” x 55.2”
- Machine weight (G7-S55BH)
- 221.9 kg / 489.5 lbs.
Construction, comfort & adjustment
- Front placards
- Muscle call outs, exercise-specific stretching, start and finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Rear placards
- Color-coded machine identification, exercise-specific stretching
- Knee Pad Wear Cover
- Yes
- Contoured seat
- Yes
- Personal storage
- Two tactile storage mats and one personal device cradle
- Placard color coding
- Green (core)
- Machine anchoring
- Independent machine anchoring brackets
- Integrated leveling system
- Yes, top-down leveler
- User adjustment range
- 4 knee pad start positions on each side
- Color-coded pivots and adjustment points
- Yes
- Available frame colors
- Iced Silver, Matte Black, Graphite Grey, Gloss Black, Lace White, Polarized Titanium
- Frame finish
- Manufacturer’s proprietary two-coat powder process
Display, data & connectivity
- Rep counter
- No
Premium
ONYX

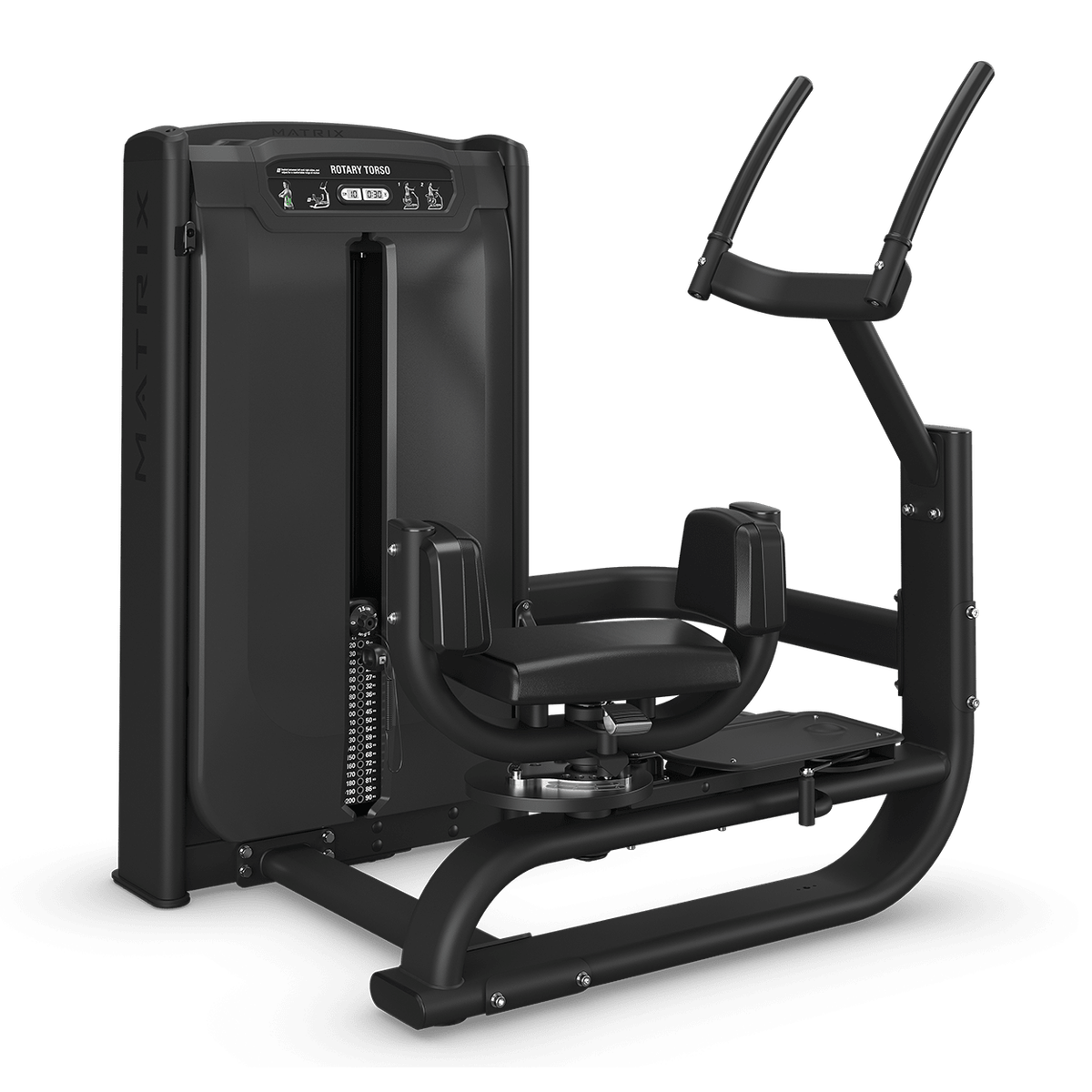

Manufacturer image of the ONYX version in Matte Black.
Version specifications
Construction, comfort & adjustment
- Color-coded pivots and adjustment points
- Yes
- Front placards
- Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
- User adjustment range
- 4 knee pad start positions on each side
- Rear placards
- Color-coded machine identification, exercise specific stretching
- Placard color coding
- Green (core)
- Knee Pad Wear Cover
- Yes
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- Contoured seat
- Yes
- Available frame colors
- Matte Black
- Machine anchoring
- Independent machine anchoring brackets
- Integrated leveling system
- Yes, top-down leveler
- Frame finish
- Manufacturer’s proprietary two-coat powder process
Display, data & connectivity
- Rep counter battery life
- Approximately 3 years
- Equipment usage tracking
- Service mode tracks total reps and hours of use
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
- Rep counter power supply
- Two AA batteries
Dimensions, weight & installation
- Machine weight
- 229 kg / 505 lbs.
- Static dimensions
- 117 x 123 x 141 cm / 45.8” x 48.2” x 55.2”
- In-use dimensions
- 117 x 123 x 141 cm / 45.8” x 48.2” x 55.2”
Performance & training system
- Maximum training weight
- 93.4 kg / 207.5 lbs
- Weight increments
- 4.5 kg / 10 lbs
- Weight stack guarding
- Full front and rear guards
- Total stack weight
- 90 kg / 200 lbs.
- Incremental weight system
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
- Consistent 53-inch weight stack height
- Yes
- Cable system
- Internally lubricated cables & fittings
DOCUMENTS / STAY IN THE DETAILS
Product dossier & manufacturer documents.
Printable product dossier
The images, specifications and options on this page, formatted for printing or saving as PDF through your browser.
Strength catalog 2026
The complete manufacturer catalog opens in a separate tab. Your product dossier stays open so you can continue selecting equipment.
Open catalog · PDFKnowledge library
More catalogs, PACE & seca, Resources for planning and equipment selection.
Explore the knowledge librarySources & manufacturer website
Specifications are based on data from MATRIX in this site’s catalog. Manufacturer specifications may change; final configuration, availability, warranty and delivery will be defined in the Eurotec quotation.
