MATRIX / Ultra
Pec fly / rear delt
G7-S22
Ultra Pec Fly Rear Delt
A selectorized weight stack station for chest training.
- Dedicated personal storage.
- Static dimensions
- 143.5 × 173.5 × 197 cm
- In-use dimensions
- 143.5 × 193.5 × 197 cm
- Weight stack
- 135 kg
PRODUCT DATA / G7-S22
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Display, data & connectivity
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
- Rep counter battery life
- Approximately 3 years
- Rep counter power supply
- Two AA batteries
- Equipment usage tracking
- Service mode tracks total reps and hours of use
Construction, comfort & adjustment
- User adjustment range
- 7 position seat, 8 user arm start positions (4 for Pec Fly and 4 for Rear Delt)
- Rear placards
- Color-coded machine identification, exercise specific stretching
- Integrated leveling system
- Yes, top-down leveler
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- Assisted adjustment
- Spring assisted seat
- Machine anchoring
- Independent machine anchoring brackets
- Available frame colors
- Iced Silver, Matte Black, Gloss Black, Lace White, Polarized Titanium
- Action Specific Grips
- Exercise specific grips improving feel, function and form during use
- Front placards
- Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Placard color coding
- Yellow (upper body)
- Color-coded pivots and adjustment points
- Yes
Performance & training system
- Cable system
- Internally lubricated cables & fittings
- Consistent 53-inch weight stack height
- Yes
- Maximum training weight
- 138.4 kg / 307.5 lbs
- Weight stack guarding
- Full front and rear guards
- Weight increments
- 4.5 kg / 10 lbs
- Incremental weight system
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
- Total stack weight
- 135 kg / 300 lbs
Dimensions, weight & installation
- Machine weight
- 322.2 kg / 710.5 lbs.
- In-use dimensions
- 143.5 x 193.5 x 197 cm / 56.4” x 76.1” x 77.6”
- Static dimensions
- 143.5 x 173.5 x 197 cm / 56.4” x 54.1” x 77.6”
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.
Base Heavy
G7-S22BH

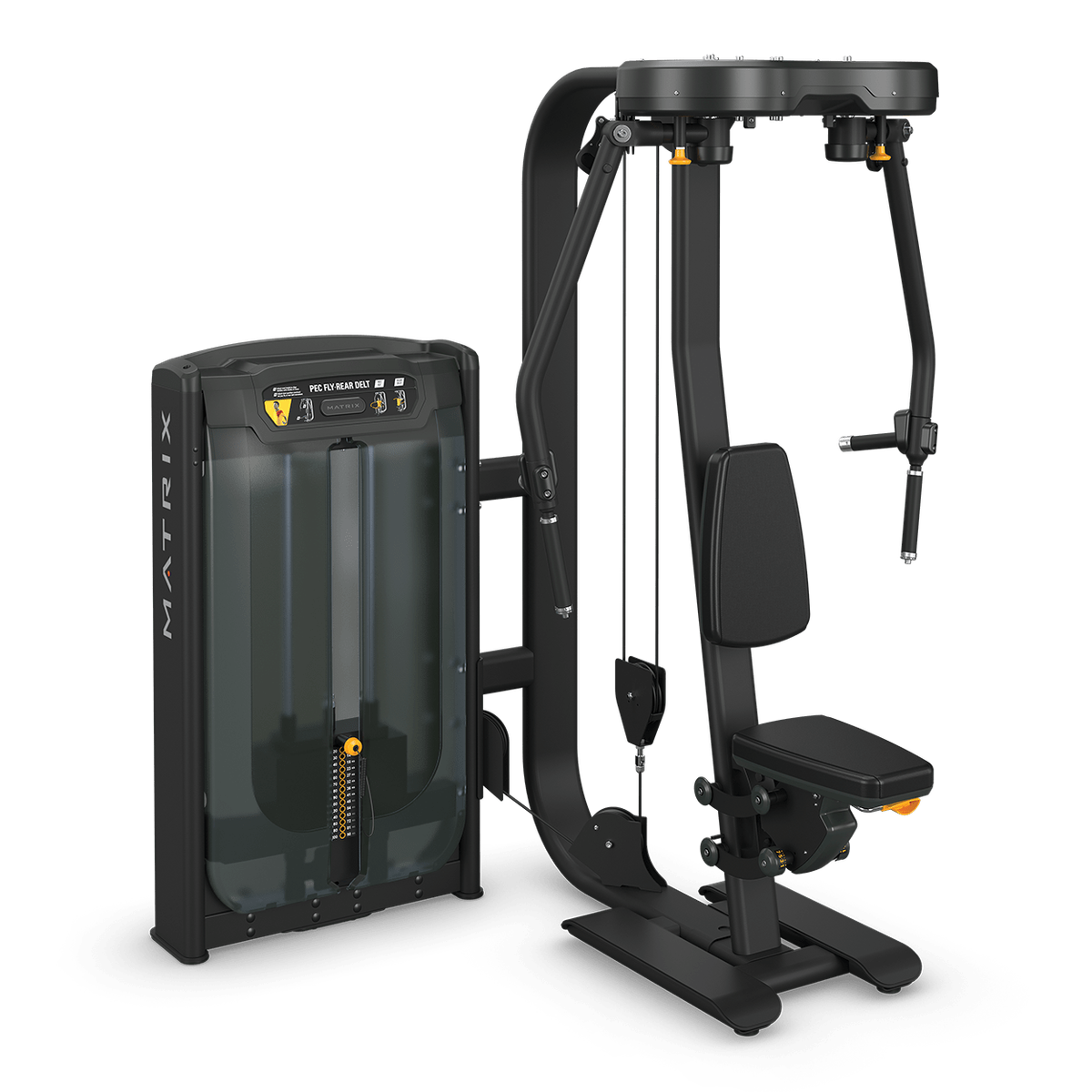

Official Matrix Base Trim image, shared by the B and BH models. The weight stack and specifications shown here refer to BH.
Version specifications
Construction, comfort & adjustment
- Machine-assisted User Adjustments
- Gas-assisted seat
- Integrated leveling system
- Yes, top-down leveler
- Machine anchoring
- Independent machine anchoring brackets
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Available frame colors
- Iced Silver, Matte Black, Graphite Grey, Gloss Black, Lace White, Polarized Titanium
- Color-coded pivots and adjustment points
- Yes
- User adjustment range
- 7-position seat, 8 user arm start positions (4 for Pec Fly and 4 for Rear Delt)
- Personal storage
- Two tactile storage mats and one personal device cradle
- Foot Platform
- Yes
- Action Specific Grips
- No
- Contoured seat
- Yes
- Front placards
- Muscle call outs, exercise-specific stretching, start and finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Rear placards
- Color-coded machine identification, exercise-specific stretching
- Placard color coding
- Yellow (upper body)
Performance & training system
- Cable system
- Internally lubricated cables and fittings
- Weight stack guarding
- Full front and rear guards
- Stack Height
- 135 cm / 53”
- Incremental weight system
- No
- Maximum training weight (G7-S22BH)
- 135 kg / 300 lbs.
- Total Stack Weight (G7-S22BH)
- 135 kg / 300 lbs.
- Weight increments
- 4.5 kg / 10 lbs.
Dimensions, weight & installation
- Static dimensions
- 143.5 x 173.5 x 197 cm / 56.4” x 54.1” x 77.6”
- In-use dimensions
- 143.5 x 193.5 x 197 cm / 56.4” x 76.1” x 77.6”
- Maximum user weight
- 136 kg / 300 lbs.
- Machine weight (G7-S22BH)
- 316.7 kg / 698.5 lbs.
Display, data & connectivity
- Rep counter
- No
Premium
G7-S22
Select this versionONYX
G7-S22-OE

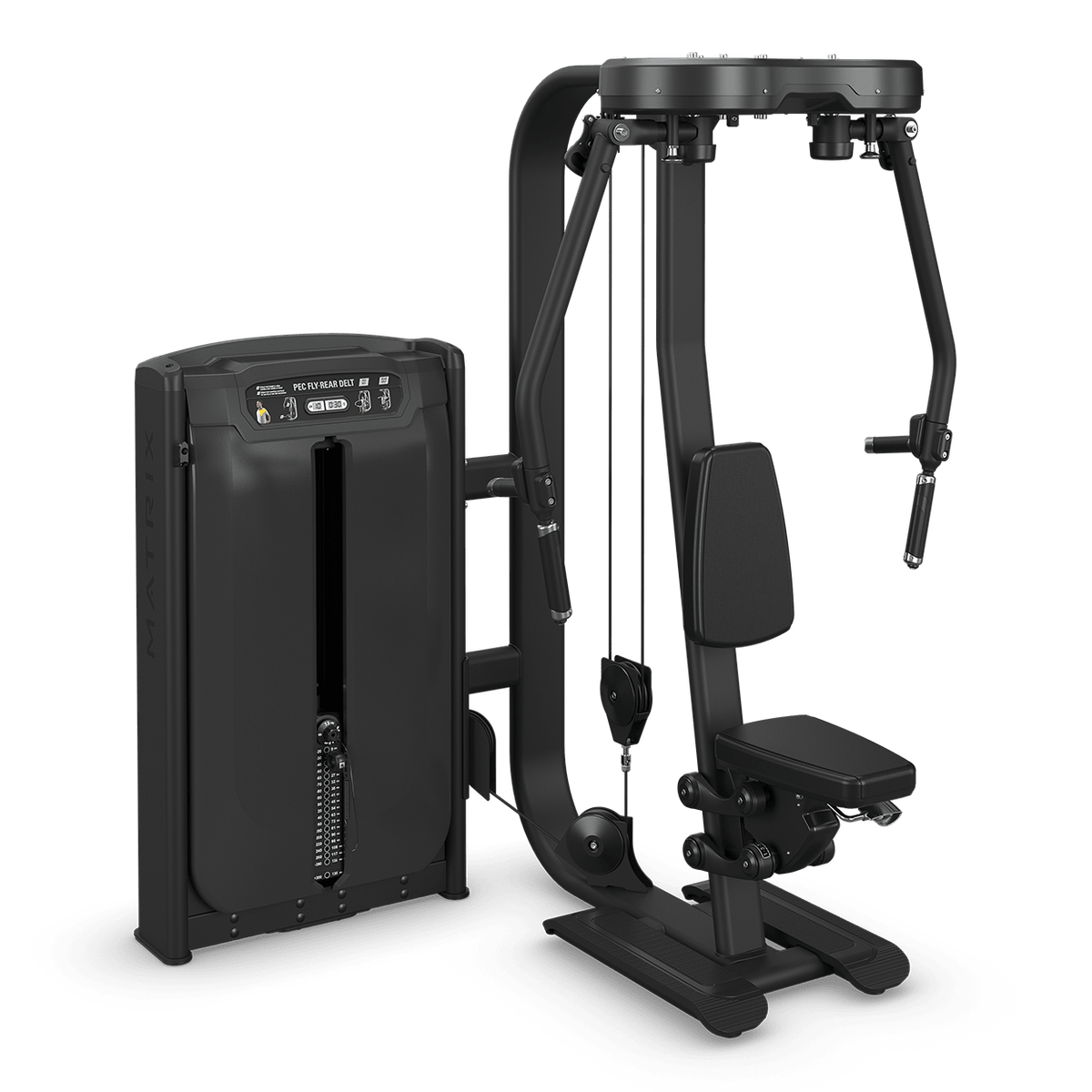

Manufacturer image of the ONYX version in Matte Black.
Version specifications
Display, data & connectivity
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
- Rep counter battery life
- Approximately 3 years
- Rep counter power supply
- Two AA batteries
- Equipment usage tracking
- Service mode tracks total reps and hours of use
Construction, comfort & adjustment
- User adjustment range
- 7 position seat, 8 user arm start positions (4 for Pec Fly and 4 for Rear Delt)
- Rear placards
- Color-coded machine identification, exercise specific stretching
- Integrated leveling system
- Yes, top-down leveler
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- Assisted adjustment
- Spring assisted seat
- Machine anchoring
- Independent machine anchoring brackets
- Available frame colors
- Matte Black
- Action Specific Grips
- Exercise specific grips improving feel, function and form during use
- Front placards
- Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Placard color coding
- Yellow (upper body)
- Color-coded pivots and adjustment points
- Yes
Performance & training system
- Cable system
- Internally lubricated cables & fittings
- Consistent 53-inch weight stack height
- Yes
- Maximum training weight
- 138.4 kg / 307.5 lbs
- Weight stack guarding
- Full front and rear guards
- Weight increments
- 4.5 kg / 10 lbs
- Incremental weight system
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
- Total stack weight
- 135 kg / 300 lbs
Dimensions, weight & installation
- Machine weight
- 322.2 kg / 710.5 lbs.
- In-use dimensions
- 143.5 x 193.5 x 197 cm / 56.4” x 76.1” x 77.6”
- Static dimensions
- 143.5 x 173.5 x 197 cm / 56.4” x 54.1” x 77.6”
