MATRIX / Ultra
Triceps press
G7-S42

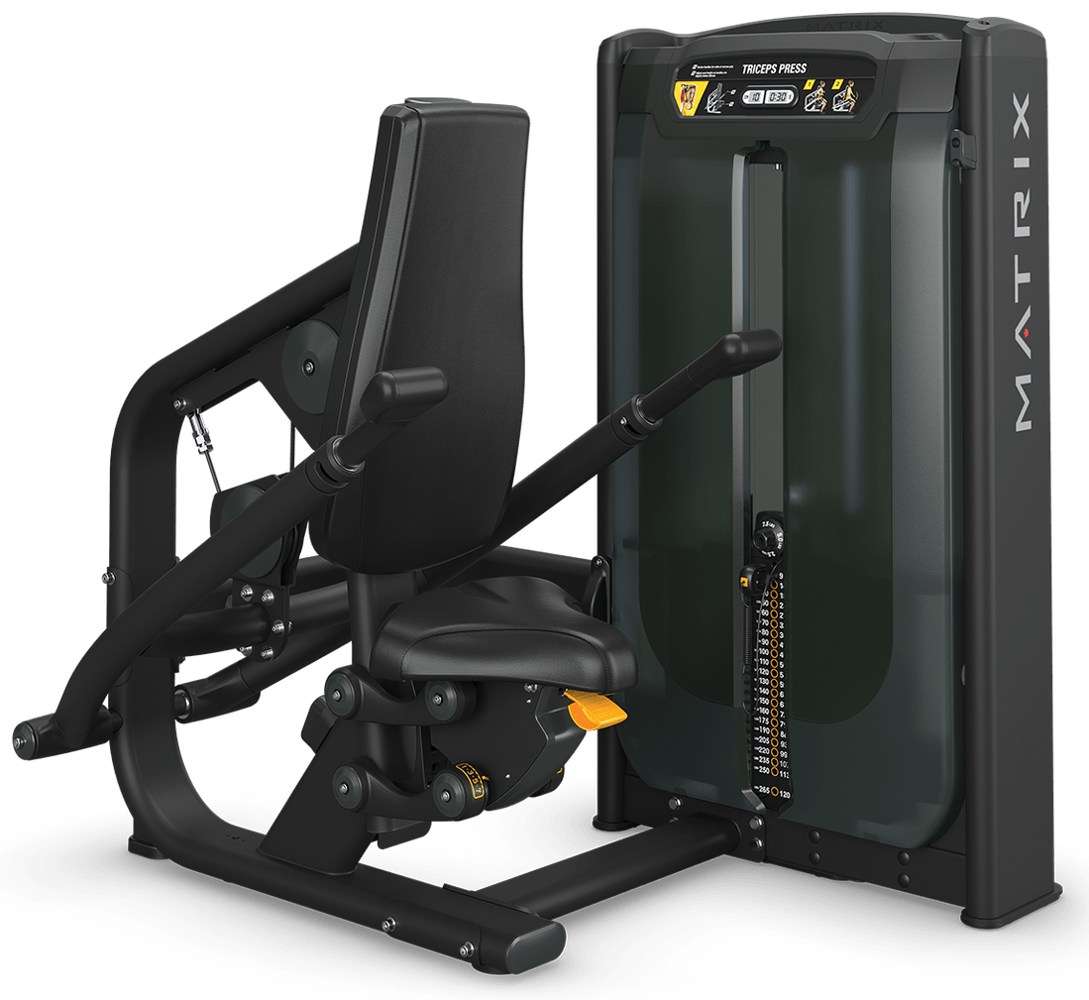

Ultra Triceps Press
A selectorized weight stack station for arm training.
- Contoured seat for support during exercise.
- Dedicated personal storage.
- Static dimensions
- 124 × 121 × 135 cm
- In-use dimensions
- 124 × 121 × 135 cm
- Weight stack
- 120 kg
PRODUCT DATA / G7-S42
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Display, data & connectivity
- Rep counter battery life
- Approximately 3 years
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
- Rep counter power supply
- Two AA batteries
- Equipment usage tracking
- Service mode tracks total reps and hours of use
Construction, comfort & adjustment
- Rear placards
- Color-coded machine identification, exercise specific stretching
- Placard color coding
- Yellow (upper body)
- Contoured seat
- Yes
- Color-coded pivots and adjustment points
- Yes
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Machine anchoring
- Independent machine anchoring brackets
- Integrated leveling system
- Yes, top-down leveler
- Assisted adjustment
- Spring assisted seat
- Action Specific Grips
- Exercise specific grips improving feel, function and form during use, rotating grips for added comfort
- Front placards
- Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Available frame colors
- Iced Silver, Matte Black, Gloss Black, Lace White, Polarized Titanium
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
Performance & training system
- Total stack weight
- 120 kg / 265 lbs
- Incremental weight system
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
- Maximum training weight
- 123.4 kg / 272.5 lbs
- Consistent 53-inch weight stack height
- Yes
- Weight stack guarding
- Full front and rear guards
- Cable system
- Internally lubricated cables & fittings
Dimensions, weight & installation
- In-use dimensions
- 124 x 121 x 135 cm / 48.8” x 47.7” x 53”
- Static dimensions
- 124 x 121 x 135 cm / 48.8” x 47.7” x 53”
- Machine weight
- 298.5 kg / 658 lbs.
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.
Base Heavy
G7-S42BH

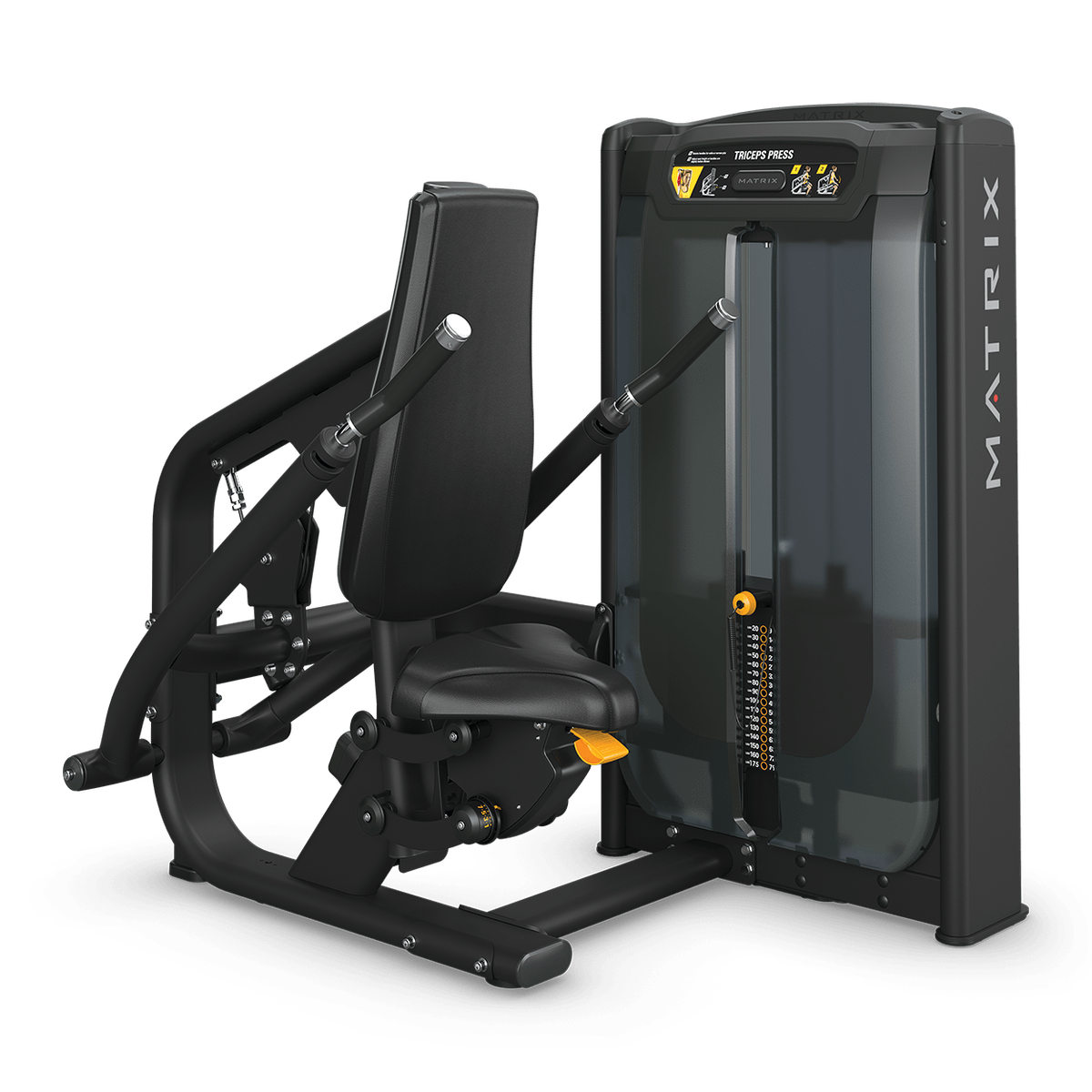

Official Matrix Base Trim image, shared by the B and BH models. The weight stack and specifications shown here refer to BH.
Version specifications
Construction, comfort & adjustment
- Personal storage
- Two tactile storage mats and one personal device cradle
- Action Specific Grips
- No
- Contoured seat
- Yes
- Front placards
- Muscle call outs, exercise-specific stretching, start and finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Placard color coding
- Yellow (upper body)
- Rear placards
- Color-coded machine identification, exercise-specific stretching
- Machine-assisted User Adjustments
- Gas-assisted seat
- Color-coded pivots and adjustment points
- Yes
- Available frame colors
- Iced Silver, Matte Black, Graphite Grey, Gloss Black, Lace White, Polarized Titanium
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Integrated leveling system
- Yes, top-down leveler
- Machine anchoring
- Independent machine anchoring brackets
- User adjustment range
- 7-position seat, 2 hand placement positions (narrow or wide)
Display, data & connectivity
- Rep counter
- No
Performance & training system
- Total Stack Weight (G7-S42BH)
- 120 kg / 265 lbs.
- Weight increments
- 4.5 kg / 10 lbs.
- Stack Height
- 135 cm / 53”
- Weight stack guarding
- Full front and rear guards
- Incremental weight system
- No
- Maximum training weight (G7-S42BH)
- 120 kg / 265 lbs.
- Cable system
- Internally lubricated cables and fittings
Dimensions, weight & installation
- Maximum user weight
- 136 kg / 300 lbs.
- Static dimensions
- 124 x 121 x 135 cm / 48.8” x 47.7” x 53”
- In-use dimensions
- 124 x 121 x 135 cm / 48.8” x 47.7” x 53”
- Machine weight (G7-S42BH)
- 292 kg / 644 lbs.
Premium
G7-S42
Select this versionONYX
G7-S42-OE

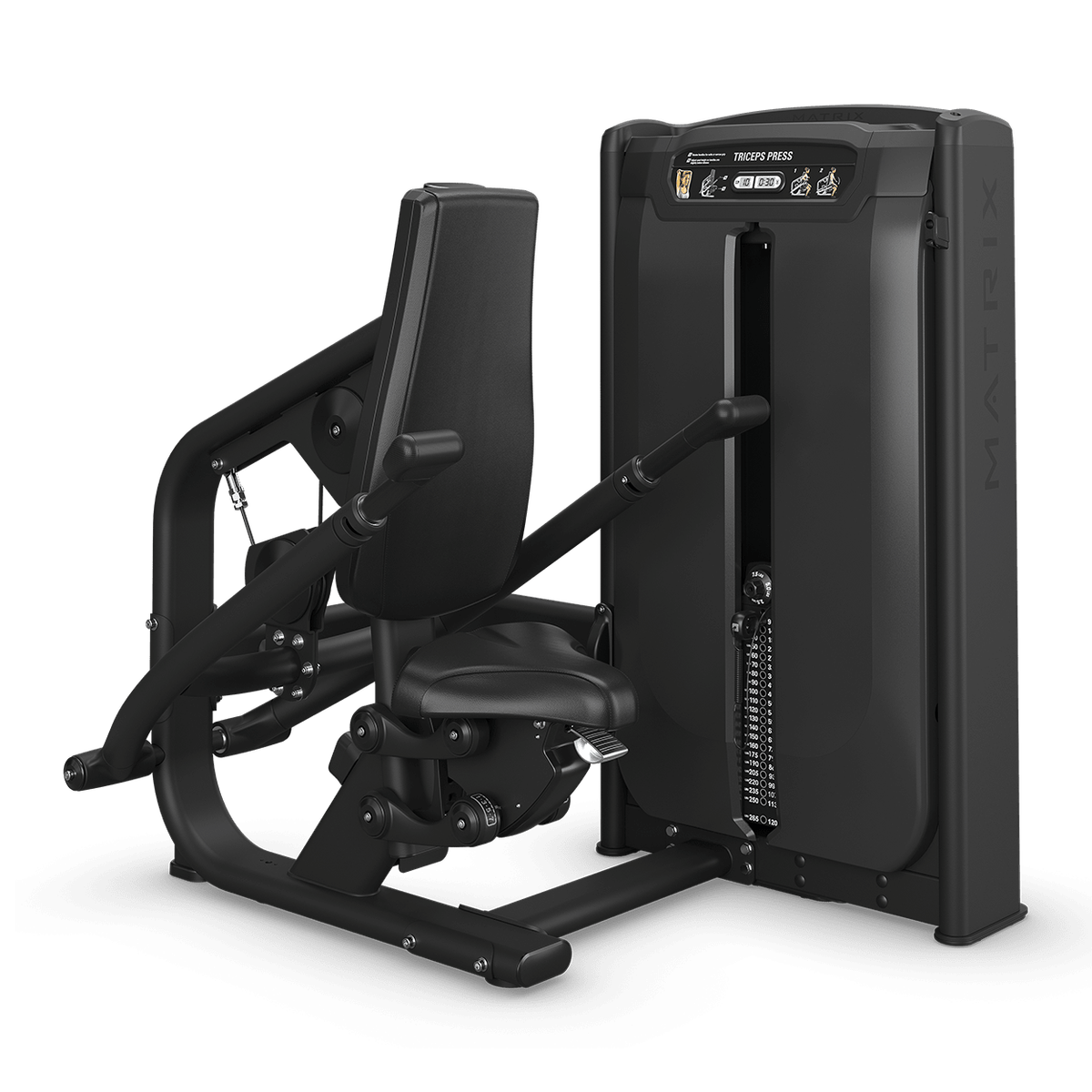

Manufacturer image of the ONYX version in Matte Black.
Version specifications
Display, data & connectivity
- Rep counter battery life
- Approximately 3 years
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
- Rep counter power supply
- Two AA batteries
- Equipment usage tracking
- Service mode tracks total reps and hours of use
Construction, comfort & adjustment
- Rear placards
- Color-coded machine identification, exercise specific stretching
- Placard color coding
- Yellow (upper body)
- Contoured seat
- Yes
- Color-coded pivots and adjustment points
- Yes
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Machine anchoring
- Independent machine anchoring brackets
- Integrated leveling system
- Yes, top-down leveler
- Assisted adjustment
- Spring assisted seat
- Action Specific Grips
- Exercise specific grips improving feel, function and form during use, rotating grips for added comfort
- Front placards
- Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Available frame colors
- Matte Black
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
Performance & training system
- Total stack weight
- 120 kg / 265 lbs
- Incremental weight system
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
- Maximum training weight
- 123.4 kg / 272.5 lbs
- Consistent 53-inch weight stack height
- Yes
- Weight stack guarding
- Full front and rear guards
- Cable system
- Internally lubricated cables & fittings
Dimensions, weight & installation
- In-use dimensions
- 124 x 121 x 135 cm / 48.8” x 47.7” x 53”
- Static dimensions
- 124 x 121 x 135 cm / 48.8” x 47.7” x 53”
- Machine weight
- 298.5 kg / 658 lbs.
DOCUMENTS / STAY IN THE DETAILS
Product dossier & manufacturer documents.
PRODUCT DOSSIER
Printable product dossier
The images, specifications and options on this page, formatted for printing or saving as PDF through your browser.
MATRIX 2026 / OFFICIAL PDF
Strength catalog 2026
The complete manufacturer catalog opens in a separate tab. Your product dossier stays open so you can continue selecting equipment.
Open catalog · PDFMATRIX KNOWLEDGE
Knowledge library
More catalogs, PACE & seca, Resources for planning and equipment selection.
Explore the knowledge librarySources & manufacturer website
Specifications are based on data from MATRIX in this site’s catalog. Manufacturer specifications may change; final configuration, availability, warranty and delivery will be defined in the Eurotec quotation.
