ISRAEL · EUROTEC GROUPBuild your fitness spaceעבריתBack to the collection
MATRIX / Ultra
Independent-arm biceps curl
G7-S40

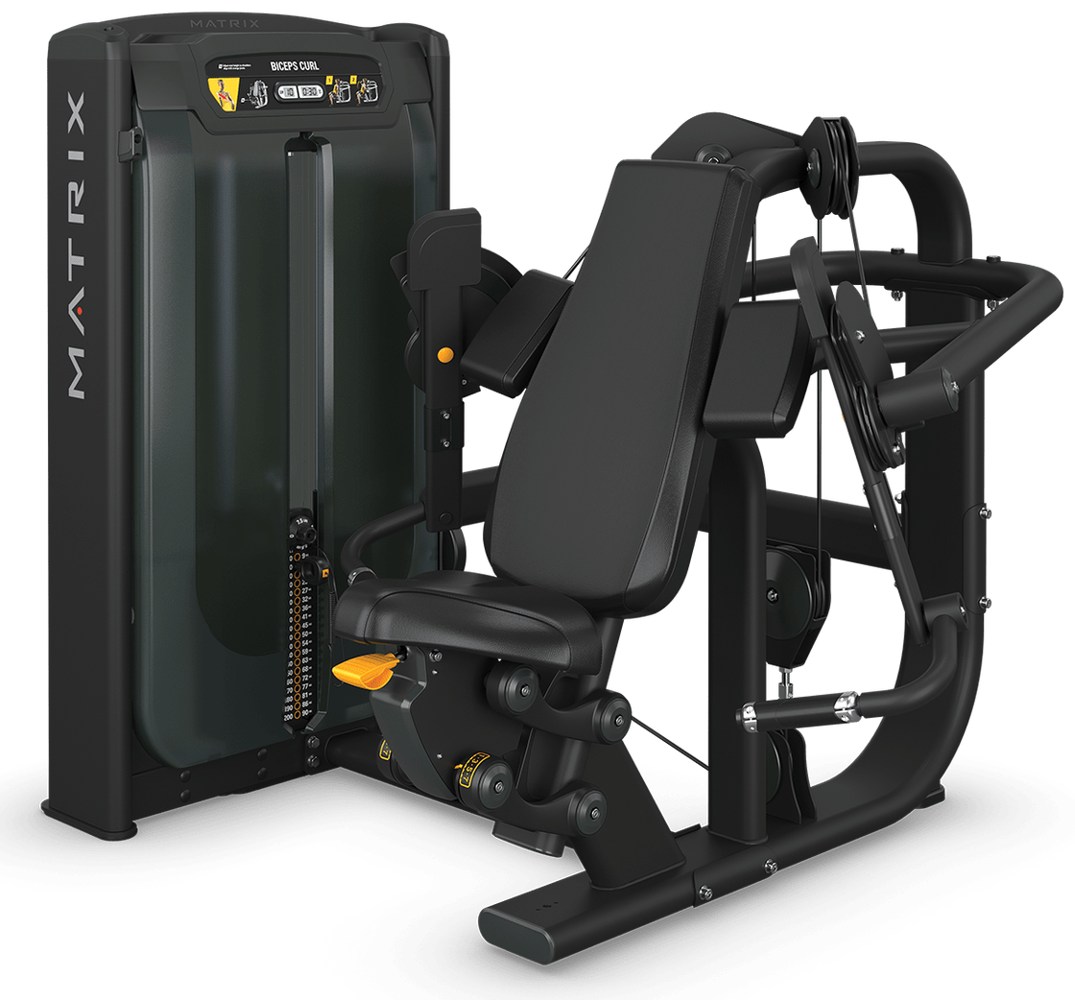

Ultra Independent Biceps Curl
A selectorized weight stack station for arm training.
- Contoured seat for support during exercise.
- Dedicated personal storage.
- Static dimensions
- 135 × 162.5 × 135 cm
- In-use dimensions
- 135 × 168 × 135 cm
- Weight stack
- 90 kg
PRODUCT DATA / G7-S40
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Construction, comfort & adjustment
- Color-coded pivots and adjustment points
- Yes
- User adjustment range
- 7 position seat
- Assisted adjustment
- Spring assisted back pad
- Integrated leveling system
- Yes, top-down leveler
- Machine anchoring
- Independent machine anchoring brackets
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- Elbow guards
- Yes
- Placard color coding
- Yellow (upper body)
- Front placards
- Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Rear placards
- Color-coded machine identification, exercise specific stretching
- Rotating arm supports
- Yes
- Action Specific Grips
- Exercise specific grips improving feel, function and form during use, rotating grips for added comfort
- Available frame colors
- Iced Silver, Matte Black, Gloss Black, Lace White, Polarized Titanium
- Contoured seat
- Yes
- Frame finish
- Manufacturer’s proprietary two-coat powder process
Performance & training system
- Cable system
- Internally lubricated cables & fittings
- Weight increments
- 4.5 kg / 10 lbs
- Maximum training weight
- 93.4 kg / 207.5 lbs
- Consistent 53-inch weight stack height
- Yes
- Weight stack guarding
- Full front and rear guards
- Total stack weight
- 90 kg / 200 lbs.
- Incremental weight system
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
Dimensions, weight & installation
- Machine weight
- 263.6 kg / 581.5 lbs.
- In-use dimensions
- 135 x 168 x 135 cm / 53” x 66.2” x 53”
- Static dimensions
- 135 x 162.5 x 135 cm / 53” x 64” x 53”
Display, data & connectivity
- Equipment usage tracking
- Service mode tracks total reps and hours of use
- Rep counter battery life
- Approximately 3 years
- Rep counter power supply
- Two AA batteries
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.
Base Heavy
G7-S40BH

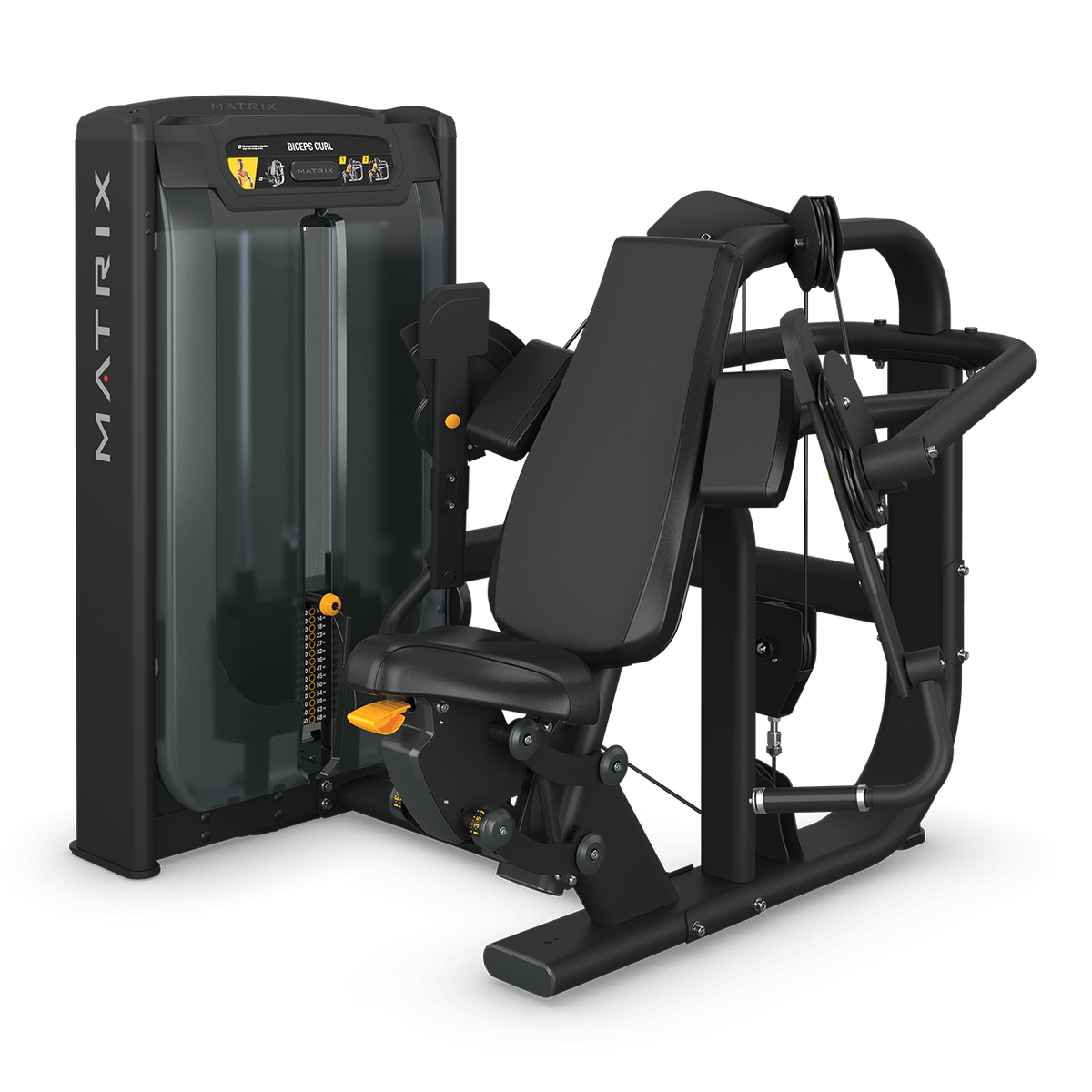

Official Matrix Base Trim image, shared by the B and BH models. The weight stack and specifications shown here refer to BH.
Version specifications
Construction, comfort & adjustment
- Front placards
- Muscle call outs, exercise-specific stretching, start and finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Placard color coding
- Yellow (upper body)
- Rear placards
- Color-coded machine identification, exercise-specific stretching
- Personal storage
- Two tactile storage mats and one personal device cradle
- Elbow guards
- Yes
- Action Specific Grips
- No
- Rotating arm supports
- Yes
- Contoured seat
- Yes
- User adjustment range
- 7-position seat
- Machine-assisted User Adjustments
- Gas-assisted seat
- Color-coded pivots and adjustment points
- Yes
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Available frame colors
- Iced Silver, Matte Black, Graphite Grey, Gloss Black, Lace White, Polarized Titanium
- Machine anchoring
- Independent machine anchoring brackets
- Integrated leveling system
- Yes, top-down leveler
Dimensions, weight & installation
- In-use dimensions
- 135 x 168 x 135 cm / 53” x 66.2” x 53”
- Machine weight (G7-S40BH)
- 257.1 kg / 567 lbs.
- Maximum user weight
- 136 kg / 300 lbs.
- Static dimensions
- 135 x 162.5 x 135 cm / 53” x 64” x 53”
Performance & training system
- Weight increments
- 4.5 kg / 10 lbs.
- Weight stack guarding
- Full front and rear guards
- Stack Height
- 135 cm / 53”
- Maximum training weight (G7-S40BH)
- 90 kg / 200 lbs.
- Incremental weight system
- No
- Total Stack Weight (G7-S40BH)
- 90 kg / 200 lbs.
- Cable system
- Internally lubricated cables and fittings
Display, data & connectivity
- Rep counter
- No
Premium
G7-S40
Select this versionONYX
G7-S40-OE

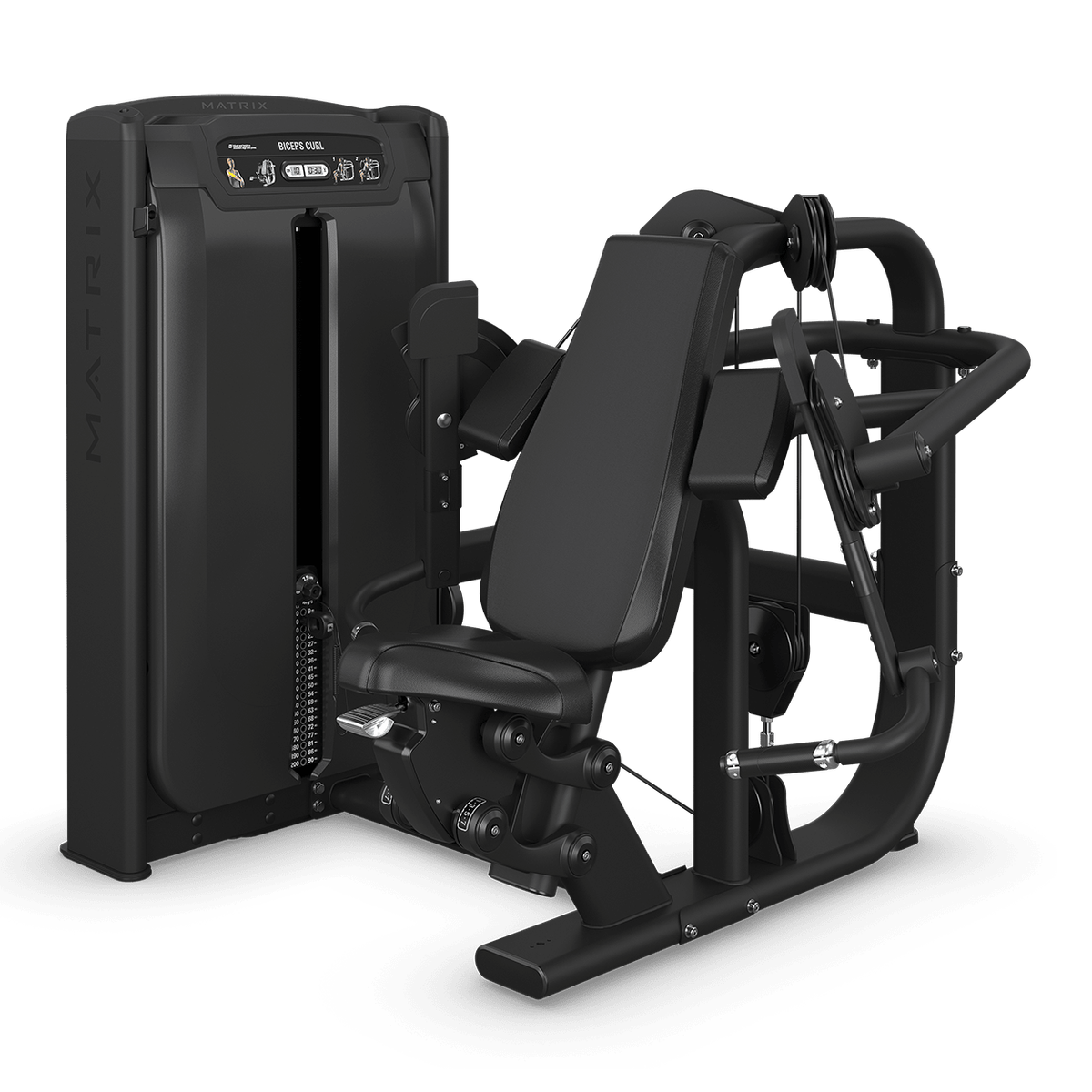

Manufacturer image of the ONYX version in Matte Black.
Version specifications
Construction, comfort & adjustment
- Color-coded pivots and adjustment points
- Yes
- User adjustment range
- 7 position seat
- Assisted adjustment
- Spring assisted back pad
- Integrated leveling system
- Yes, top-down leveler
- Machine anchoring
- Independent machine anchoring brackets
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- Elbow guards
- Yes
- Placard color coding
- Yellow (upper body)
- Front placards
- Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Rear placards
- Color-coded machine identification, exercise specific stretching
- Rotating arm supports
- Yes
- Action Specific Grips
- Exercise specific grips improving feel, function and form during use, rotating grips for added comfort
- Available frame colors
- Matte Black
- Contoured seat
- Yes
- Frame finish
- Manufacturer’s proprietary two-coat powder process
Performance & training system
- Cable system
- Internally lubricated cables & fittings
- Weight increments
- 4.5 kg / 10 lbs
- Maximum training weight
- 93.4 kg / 207.5 lbs
- Consistent 53-inch weight stack height
- Yes
- Weight stack guarding
- Full front and rear guards
- Total stack weight
- 90 kg / 200 lbs.
- Incremental weight system
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
Dimensions, weight & installation
- Machine weight
- 263.6 kg / 581.5 lbs.
- In-use dimensions
- 135 x 168 x 135 cm / 53” x 66.2” x 53”
- Static dimensions
- 135 x 162.5 x 135 cm / 53” x 64” x 53”
Display, data & connectivity
- Equipment usage tracking
- Service mode tracks total reps and hours of use
- Rep counter battery life
- Approximately 3 years
- Rep counter power supply
- Two AA batteries
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
DOCUMENTS / STAY IN THE DETAILS
Product dossier & manufacturer documents.
PRODUCT DOSSIER
Printable product dossier
The images, specifications and options on this page, formatted for printing or saving as PDF through your browser.
MATRIX 2026 / OFFICIAL PDF
Strength catalog 2026
The complete manufacturer catalog opens in a separate tab. Your product dossier stays open so you can continue selecting equipment.
Open catalog · PDFMATRIX KNOWLEDGE
Knowledge library
More catalogs, PACE & seca, Resources for planning and equipment selection.
Explore the knowledge librarySources & manufacturer website
Specifications are based on data from MATRIX in this site’s catalog. Manufacturer specifications may change; final configuration, availability, warranty and delivery will be defined in the Eurotec quotation.
Open the source page at MATRIX ↗EXPLORE THE SERIES
