MATRIX / Ultra
Diverging seated row
G7-S34

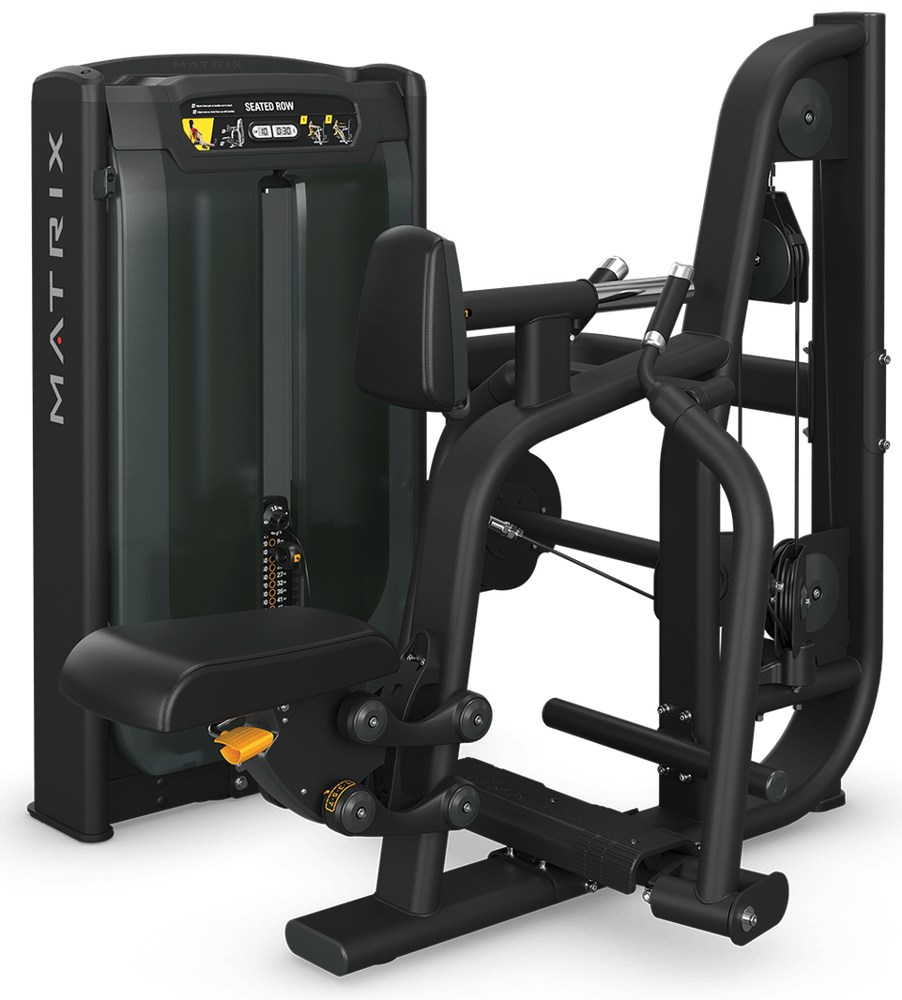

Ultra Diverging Seated Row
A selectorized weight stack station for back training.
- Contoured seat for support during exercise.
- Dedicated personal storage.
- Static dimensions
- 158 × 135.5 × 140.5 cm
- In-use dimensions
- 158 × 138.5 × 140.5 cm
- Weight stack
- 108 kg
PRODUCT DATA / G7-S34
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Construction, comfort & adjustment
- Contoured seat
- Yes
- Rear placards
- Color-coded machine identification, exercise specific stretching
- Placard color coding
- Yellow (upper body)
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- Front placards
- Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Integrated leveling system
- Yes, top-down leveler
- Machine anchoring
- Independent machine anchoring brackets
- Assisted adjustment
- Spring assisted seat, gas assisted chest pad
- User adjustment range
- 7 position seat, 9 position chest pad
- Color-coded pivots and adjustment points
- Yes
- Available frame colors
- Iced Silver, Matte Black, Gloss Black, Lace White, Polarized Titanium
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Action Specific Grips
- Exercise specific grips improving feel, function and form during use
- Foot supports
- Dual foot support positions for comfort
Dimensions, weight & installation
- Static dimensions
- 158 x 135.5 x 140.5 cm / 62.2” x 53.3” x 55.3”
- In-use dimensions
- 158 x 138.5 x 140.5 cm / 62.2” x 54.5” x 55.3”
- Machine weight
- 344 kg / 758.5 lbs.
Display, data & connectivity
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
- Rep counter power supply
- Two AA batteries
- Equipment usage tracking
- Service mode tracks total reps and hours of use
- Rep counter battery life
- Approximately 3 years
Performance & training system
- Cable system
- Internally lubricated cables & fittings
- Total stack weight
- 108 kg / 240 lbs
- Weight increments
- 4.5 kg / 10 lbs
- Incremental weight system
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
- Consistent 53-inch weight stack height
- Yes
- Weight stack guarding
- Full front and rear guards
- Maximum training weight
- 111.4 kg / 247.5 lbs
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.
Base Heavy
G7-S34BH

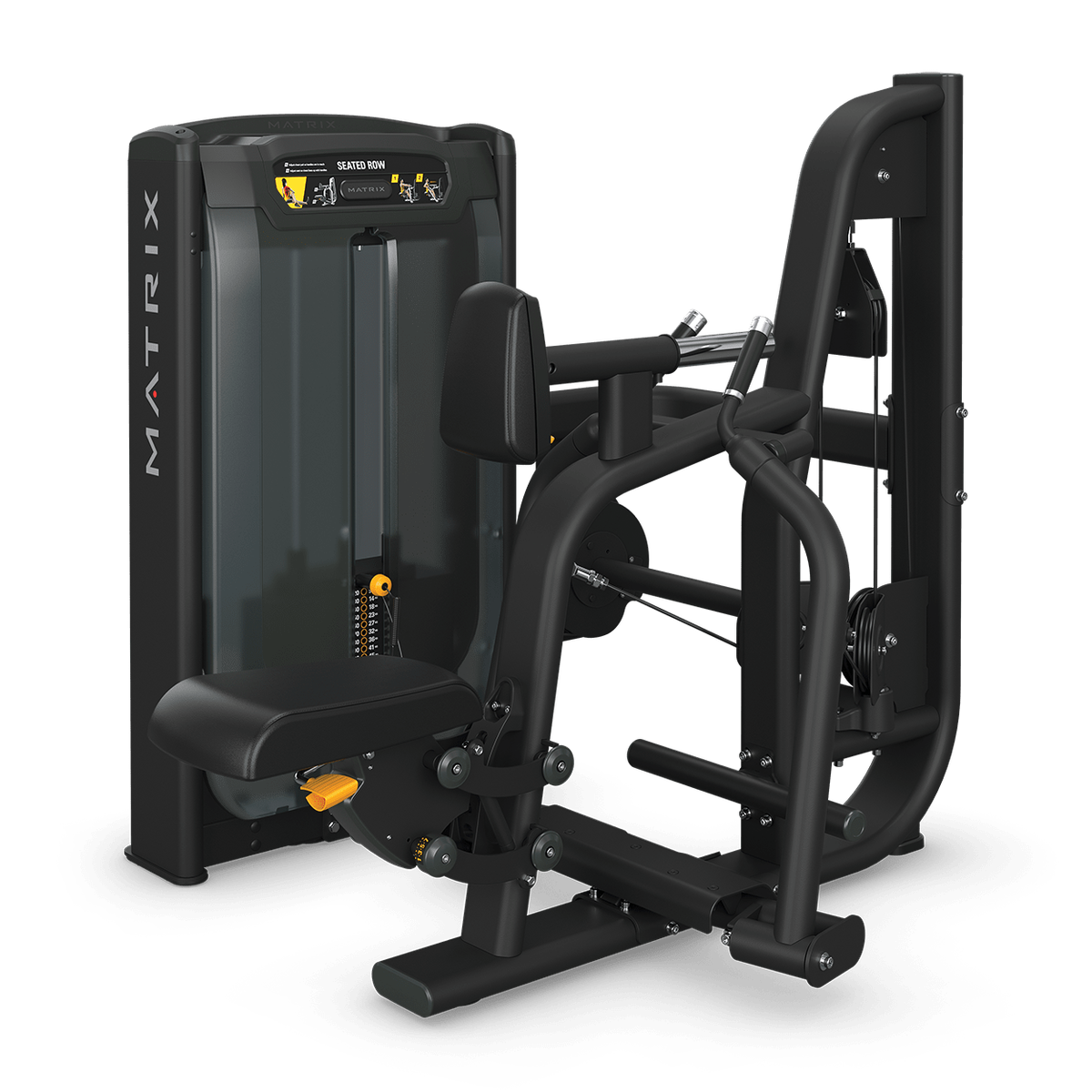

Official Matrix Base Trim image, shared by the B and BH models. The weight stack and specifications shown here refer to BH.
Version specifications
Dimensions, weight & installation
- Static dimensions
- 158 x 135.5 x 140.5 cm / 62.2” x 53.3” x 55.3”
- In-use dimensions
- 158 x 138.5 x 140.5 cm / 62.2” x 54.5” x 55.3”
- Machine weight (G7-S34BH)
- 337.5 kg / 744 lbs.
- Maximum user weight
- 136 kg / 300 lbs.
Performance & training system
- Maximum training weight (G7-S34BH)
- 108 kg / 240 lbs.
- Cable system
- Internally lubricated cables and fittings
- Total Stack Weight (G7-S34BH)
- 108 kg / 240 lbs.
- Weight increments
- 4.5 kg / 10 lbs.
- Incremental weight system
- No
- Stack Height
- 135 cm / 53”
- Weight stack guarding
- Full front and rear guards
Construction, comfort & adjustment
- Front placards
- Muscle call outs, exercise-specific stretching, start and finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Action Specific Grips
- No
- Foot Platform
- Yes
- Personal storage
- Two tactile storage mats and one personal device cradle
- Placard color coding
- Yellow (upper body)
- Rear placards
- Color-coded machine identification, exercise-specific stretching
- Machine-assisted User Adjustments
- Gas-assisted seat
- Color-coded pivots and adjustment points
- Yes
- Available frame colors
- Iced Silver, Matte Black, Graphite Grey, Gloss Black, Lace White, Polarized Titanium
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Machine anchoring
- Independent machine anchoring brackets
- Integrated leveling system
- Yes, top-down leveler
- Contoured seat
- Yes
- User adjustment range
- 7-position thigh pad, 7-position seat
Display, data & connectivity
- Rep counter
- No
Premium
G7-S34
Select this versionONYX
G7-S34-OE

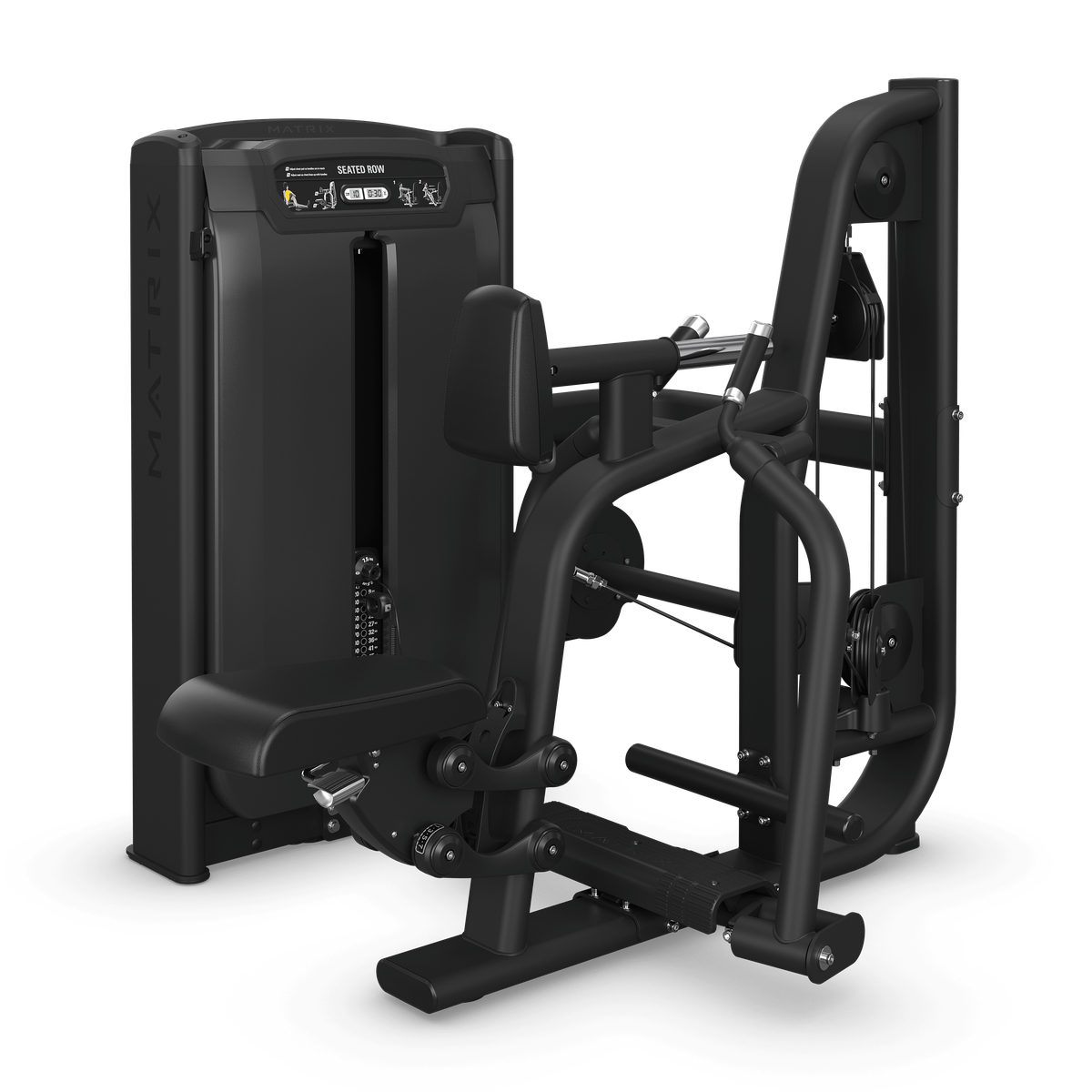

Manufacturer image of the ONYX version in Matte Black.
Version specifications
Construction, comfort & adjustment
- Contoured seat
- Yes
- Rear placards
- Color-coded machine identification, exercise specific stretching
- Placard color coding
- Yellow (upper body)
- Personal storage
- Two tactile storage mats, personal device cradle and towel hook
- Front placards
- Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
- Integrated leveling system
- Yes, top-down leveler
- Machine anchoring
- Independent machine anchoring brackets
- Assisted adjustment
- Spring assisted seat, gas assisted chest pad
- User adjustment range
- 7 position seat, 9 position chest pad
- Color-coded pivots and adjustment points
- Yes
- Available frame colors
- Matte Black
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Action Specific Grips
- Exercise specific grips improving feel, function and form during use
- Foot supports
- Dual foot support positions for comfort
Dimensions, weight & installation
- Static dimensions
- 158 x 135.5 x 140.5 cm / 62.2” x 53.3” x 55.3”
- In-use dimensions
- 158 x 138.5 x 140.5 cm / 62.2” x 54.5” x 55.3”
- Machine weight
- 344 kg / 758.5 lbs.
Display, data & connectivity
- Rep counter
- Electronic counter displaying reps, exercise time and rest time
- Rep counter power supply
- Two AA batteries
- Equipment usage tracking
- Service mode tracks total reps and hours of use
- Rep counter battery life
- Approximately 3 years
Performance & training system
- Cable system
- Internally lubricated cables & fittings
- Total stack weight
- 108 kg / 240 lbs
- Weight increments
- 4.5 kg / 10 lbs
- Incremental weight system
- 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
- Consistent 53-inch weight stack height
- Yes
- Weight stack guarding
- Full front and rear guards
- Maximum training weight
- 111.4 kg / 247.5 lbs
DOCUMENTS / STAY IN THE DETAILS
Product dossier & manufacturer documents.
PRODUCT DOSSIER
Printable product dossier
The images, specifications and options on this page, formatted for printing or saving as PDF through your browser.
MATRIX 2026 / OFFICIAL PDF
Strength catalog 2026
The complete manufacturer catalog opens in a separate tab. Your product dossier stays open so you can continue selecting equipment.
Open catalog · PDFMATRIX KNOWLEDGE
Knowledge library
More catalogs, PACE & seca, Resources for planning and equipment selection.
Explore the knowledge librarySources & manufacturer website
Specifications are based on data from MATRIX in this site’s catalog. Manufacturer specifications may change; final configuration, availability, warranty and delivery will be defined in the Eurotec quotation.
