ISRAEL · EUROTEC GROUPBuild your fitness spaceעבריתBack to the collection
MATRIX / Matrix Home

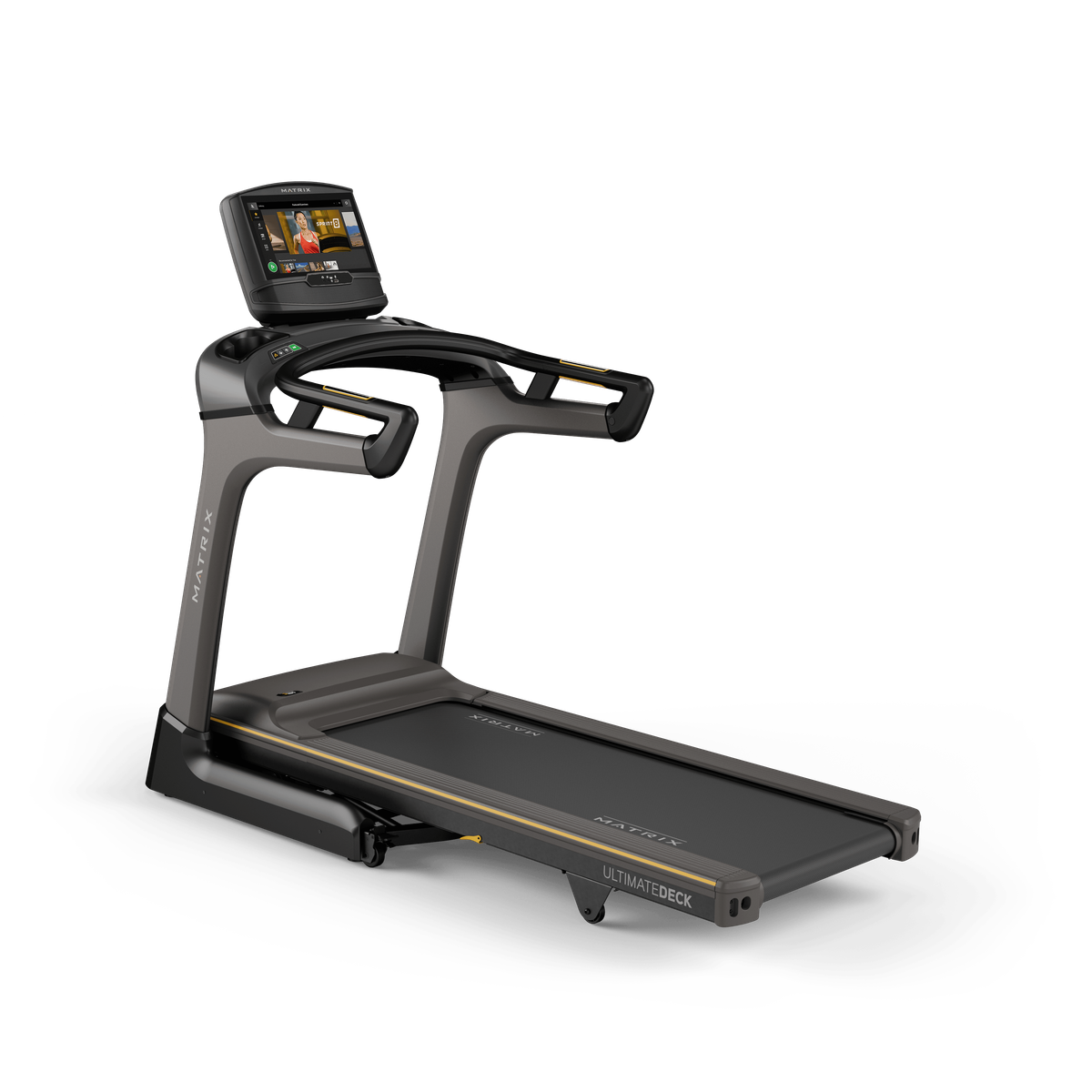

Folding treadmill TF30
TF30
Matrix TF30
Equipment Matrix for home, with specifications and configuration choices.
- Motor
- 3.25 hp continuous-duty DC Johnson Drive System
- Running area
- 51 x 140 cm / 20” x 55”
- Speed range
- 0.8–20 km/h / 0.5–12.5 mph
- Incline range
- 0%–15%
PRODUCT DATA / TF30
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Construction, comfort & adjustment
- Frame construction
- Folding
- Deck Thickness
- 25.4 mm / 1”
- Options
- Water bottle pockets, device rack, heart rate grips, 4-wheel transport system
Performance & training system
- Speed range
- 0.8–20 km/h / 0.5–12.5 mph
- Incline range
- 0%–15%
- Running surface
- 51 x 140 cm / 20” x 55”
- Running Belt
- 2-ply, 1.6 mm
- Cushioning system
- Ultimate Deck System
- Drive system
- 3.25 hp continuous-duty DC Johnson Drive System
Dimensions, weight & installation
- Folded Dimensions
- 106 x 90 x 181 cm / 42” x 35” x 71”
- Maximum user weight
- 159 kg / 350 lbs.
- Assembled dimensions
- 195 x 90 x 157 cm / 77” x 35” x 62”
- Step-on height
- 17.8 cm / 7”
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.
XIR
Console details
Construction, comfort & adjustment
- Frame construction
- Folding
- Deck Thickness
- 25.4 mm / 1”
- Options
- Water bottle pockets, device rack, heart rate grips, 4-wheel transport system
Performance & training system
- Speed range
- 0.8–20 km/h / 0.5–12.5 mph
- Incline range
- 0%–15%
- Running surface
- 51 x 140 cm / 20” x 55”
- Running Belt
- 2-ply, 1.6 mm
- Cushioning system
- Ultimate Deck System
- Drive system
- 3.25 hp continuous-duty DC Johnson Drive System
Dimensions, weight & installation
- Folded Dimensions
- 106 x 90 x 181 cm / 42” x 35” x 71”
- Maximum user weight
- 159 kg / 350 lbs.
- Assembled dimensions
- 195 x 90 x 157 cm / 77” x 35” x 62”
- Step-on height
- 17.8 cm / 7”
- Console · Assembled Weight
- 5.5 kg / 12 lbs.
Display, data & connectivity
- Console · ViewFit Connectivity
- Yes
- Console · Heart Rate
- Bluetooth wireless heart rate, Bluetooth heart rate strap included
- Console · Console Extras
- Integrated reading rack, energy saver mode, audio in/out
- Console · Passport Ready
- No
- Console · Speakers
- 5 Watt
- Console · Console Apps
- My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Kindle Reader, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor
- Console · HDMI Port
- Connect streaming media devices, phones or tablets
- Console · Display Type
- 16” class HD capacitive touchscreen (40 cm)
- Console · WiFi Enabled
- ViewFit Connectivity, entertainment apps, software updates

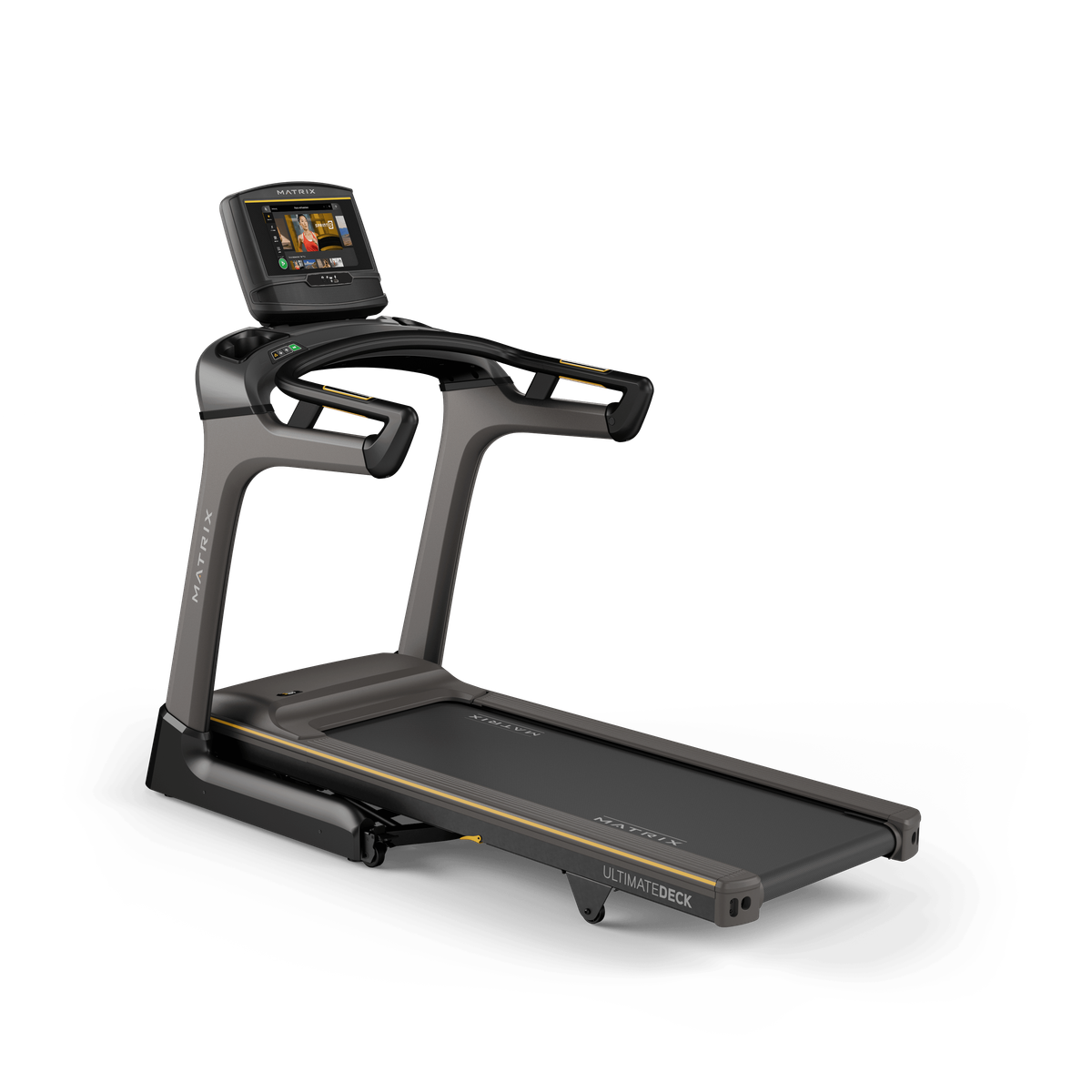

XER
Console details
Construction, comfort & adjustment
- Frame construction
- Folding
- Deck Thickness
- 25.4 mm / 1”
- Options
- Water bottle pockets, device rack, heart rate grips, 4-wheel transport system
Performance & training system
- Speed range
- 0.8–20 km/h / 0.5–12.5 mph
- Incline range
- 0%–15%
- Running surface
- 51 x 140 cm / 20” x 55”
- Running Belt
- 2-ply, 1.6 mm
- Cushioning system
- Ultimate Deck System
- Drive system
- 3.25 hp continuous-duty DC Johnson Drive System
Dimensions, weight & installation
- Folded Dimensions
- 106 x 90 x 181 cm / 42” x 35” x 71”
- Maximum user weight
- 159 kg / 350 lbs.
- Assembled dimensions
- 195 x 90 x 157 cm / 77” x 35” x 62”
- Step-on height
- 17.8 cm / 7”
- Console · Assembled Weight
- 4.5 kg / 10 lbs.
Display, data & connectivity
- Console · ViewFit Connectivity
- Yes
- Console · Heart Rate
- Bluetooth wireless heart rate, Bluetooth heart rate strap included
- Console · Console Extras
- Integrated reading rack, energy saver mode, audio in/out
- Console · Console Apps
- My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
- Console · Passport Ready
- No
- Console · Speakers
- 3 Watt
- Console · HDMI Port
- No
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor
- Console · WiFi Enabled
- ViewFit Connectivity, entertainment apps, software updates
- Console · Display Type
- 10” class capacitive touchscreen (26 cm)
XR
Console details
Construction, comfort & adjustment
- Frame construction
- Folding
- Deck Thickness
- 25.4 mm / 1”
- Options
- Water bottle pockets, device rack, heart rate grips, 4-wheel transport system
Performance & training system
- Speed range
- 0.8–20 km/h / 0.5–12.5 mph
- Incline range
- 0%–15%
- Running surface
- 51 x 140 cm / 20” x 55”
- Running Belt
- 2-ply, 1.6 mm
- Cushioning system
- Ultimate Deck System
- Drive system
- 3.25 hp continuous-duty DC Johnson Drive System
Dimensions, weight & installation
- Folded Dimensions
- 106 x 90 x 181 cm / 42” x 35” x 71”
- Maximum user weight
- 159 kg / 350 lbs.
- Assembled dimensions
- 195 x 90 x 157 cm / 77” x 35” x 62”
- Step-on height
- 17.8 cm / 7”
- Console · Assembled Weight
- 3.5 kg / 8 lbs.
Display, data & connectivity
- Console · Heart Rate
- Bluetooth wireless heart rate
- Console · Console Extras
- Integrated reading rack, energy saver mode
- Console · Console Apps
- No
- Console · Passport Ready
- No
- Console · ViewFit Connectivity
- No
- Console · HDMI Port
- No
- Console · USB Port
- Internal USB port for software updates
- Console · Speakers
- No
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, connect wireless heart rate monitor
- Console · Display
- 8.5” extra-wide blue LCD (22 cm)
- Console · WiFi Enabled
- No
