Elliptical E50
E50
Matrix E50
Equipment Matrix for home, with specifications and configuration choices.
- Dimensions
- 148 x 84 x 173 cm / 58” x 33” x 68.1” (Active footprint: 175 x 84 x 177 cm / 68.9” x 33” x 69.7”)
- Resistance levels
- 30 levels, electronically adjustable
- Stride length
- 51 cm / 20”
- Maximum user weight
- 147 kg / 325 lbs.
PRODUCT DATA / E50
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Construction, comfort & adjustment
- Handlebar design
- Multi-position dual action, stationary with resistance toggles and heart rate grips
- Power requirements
- 120 V AC power, 15 A circuit (voltage may vary outside the USA)
- Frame construction
- Suspension Elliptical Trainer
- Options
- Water bottle holder, accessory tray
Performance & training system
- Pedal spacing
- 6.35 cm / 2.5”
- Pedal type
- Oversized with rubber inserts
- Power Incline
- N/A
- Resistance range
- 30 levels, electronically adjustable
- Resistance system
- Exact Force induction brake
- Stride length
- 51 cm / 20”
Dimensions, weight & installation
- Step-on height
- 23 cm / 9.1”
- Maximum user weight
- 147 kg / 325 lbs.
- Flywheel weight
- N/A
- Assembled weight
- 133 kg / 293 lbs.
- Assembled dimensions
- 148 x 84 x 173 cm / 58” x 33” x 68.1” (Active footprint: 175 x 84 x 177 cm / 68.9” x 33” x 69.7”)
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.

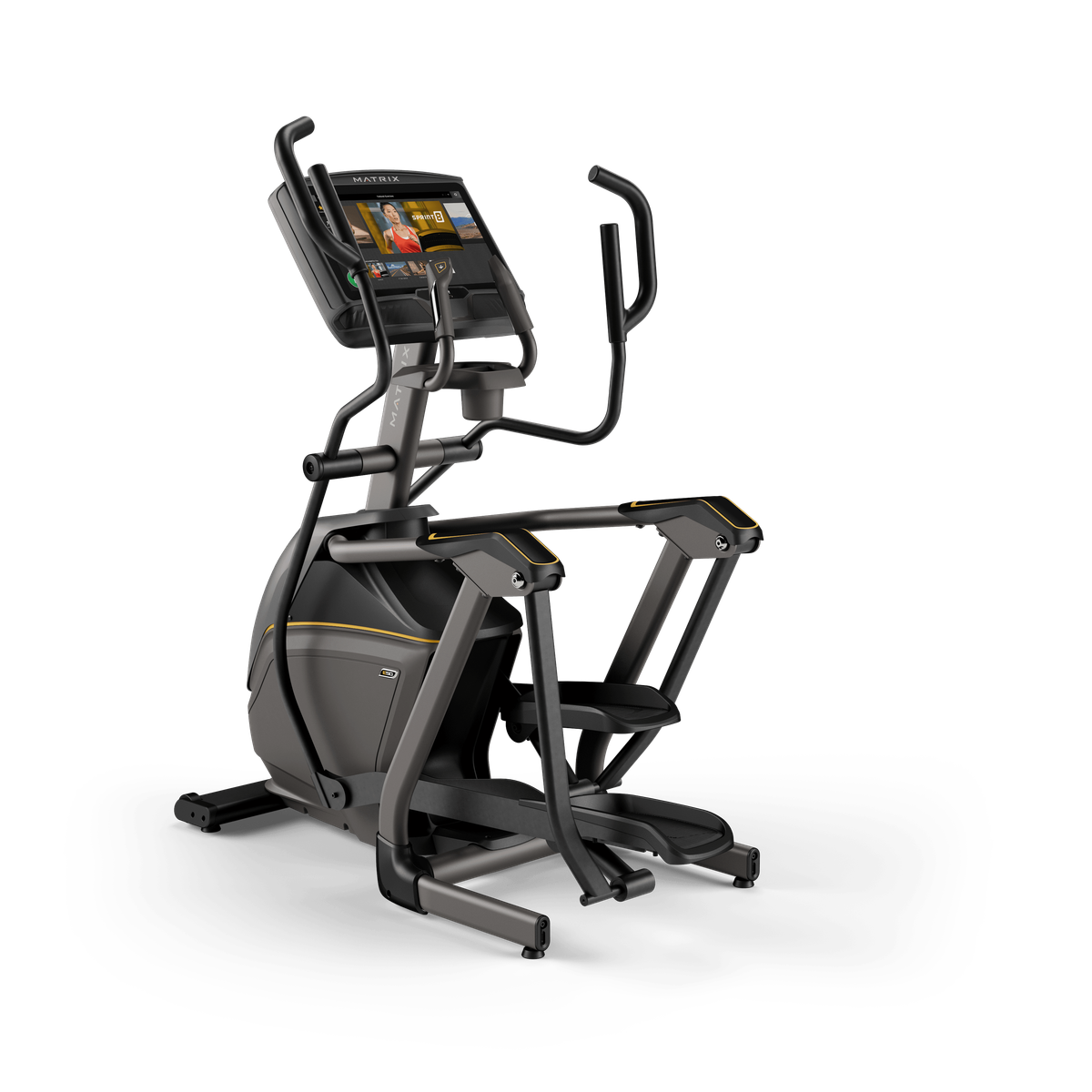

XUR
Console details
Construction, comfort & adjustment
- Handlebar design
- Multi-position dual action, stationary with resistance toggles and heart rate grips
- Power requirements
- 120 V AC power, 15 A circuit (voltage may vary outside the USA)
- Frame construction
- Suspension Elliptical Trainer
- Options
- Water bottle holder, accessory tray
Performance & training system
- Pedal spacing
- 6.35 cm / 2.5”
- Pedal type
- Oversized with rubber inserts
- Power Incline
- N/A
- Resistance range
- 30 levels, electronically adjustable
- Resistance system
- Exact Force induction brake
- Stride length
- 51 cm / 20”
Dimensions, weight & installation
- Step-on height
- 23 cm / 9.1”
- Maximum user weight
- 147 kg / 325 lbs.
- Flywheel weight
- N/A
- Assembled weight
- 133 kg / 293 lbs.
- Assembled dimensions
- 148 x 84 x 173 cm / 58” x 33” x 68.1” (Active footprint: 175 x 84 x 177 cm / 68.9” x 33” x 69.7”)
- Console · Assembled Weight
- 10.5 kg / 23 lbs.
Display, data & connectivity
- Console · Speakers
- 5 Watt
- Console · Console Apps
- My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Kindle Reader, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
- Console · Display Type
- 22” class HD capacitive touchscreen (55.8 cm)
- Console · WiFi Enabled
- ViewFit Connectivity, entertainment apps, software updates
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, connect wireless headphones, connect wireless heart rate monitor
- Console · HDMI Port
- Connect streaming media devices, phones or tablets
- Console · Passport Ready
- No
- Console · ViewFit Connectivity
- Yes
- Console · Heart Rate
- Bluetooth wireless heart rate, Bluetooth heart rate strap included
- Console · Console Extras
- Integrated reading rack, energy saver mode, audio in/out
XIR
Console details
Construction, comfort & adjustment
- Handlebar design
- Multi-position dual action, stationary with resistance toggles and heart rate grips
- Power requirements
- 120 V AC power, 15 A circuit (voltage may vary outside the USA)
- Frame construction
- Suspension Elliptical Trainer
- Options
- Water bottle holder, accessory tray
Performance & training system
- Pedal spacing
- 6.35 cm / 2.5”
- Pedal type
- Oversized with rubber inserts
- Power Incline
- N/A
- Resistance range
- 30 levels, electronically adjustable
- Resistance system
- Exact Force induction brake
- Stride length
- 51 cm / 20”
Dimensions, weight & installation
- Step-on height
- 23 cm / 9.1”
- Maximum user weight
- 147 kg / 325 lbs.
- Flywheel weight
- N/A
- Assembled weight
- 133 kg / 293 lbs.
- Assembled dimensions
- 148 x 84 x 173 cm / 58” x 33” x 68.1” (Active footprint: 175 x 84 x 177 cm / 68.9” x 33” x 69.7”)
- Console · Assembled Weight
- 5.5 kg / 12 lbs.
Display, data & connectivity
- Console · ViewFit Connectivity
- Yes
- Console · Heart Rate
- Bluetooth wireless heart rate, Bluetooth heart rate strap included
- Console · Console Extras
- Integrated reading rack, energy saver mode, audio in/out
- Console · Passport Ready
- No
- Console · Speakers
- 5 Watt
- Console · Console Apps
- My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Kindle Reader, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor
- Console · HDMI Port
- Connect streaming media devices, phones or tablets
- Console · Display Type
- 16” class HD capacitive touchscreen (40 cm)
- Console · WiFi Enabled
- ViewFit Connectivity, entertainment apps, software updates
XER
Console details
Construction, comfort & adjustment
- Handlebar design
- Multi-position dual action, stationary with resistance toggles and heart rate grips
- Power requirements
- 120 V AC power, 15 A circuit (voltage may vary outside the USA)
- Frame construction
- Suspension Elliptical Trainer
- Options
- Water bottle holder, accessory tray
Performance & training system
- Pedal spacing
- 6.35 cm / 2.5”
- Pedal type
- Oversized with rubber inserts
- Power Incline
- N/A
- Resistance range
- 30 levels, electronically adjustable
- Resistance system
- Exact Force induction brake
- Stride length
- 51 cm / 20”
Dimensions, weight & installation
- Step-on height
- 23 cm / 9.1”
- Maximum user weight
- 147 kg / 325 lbs.
- Flywheel weight
- N/A
- Assembled weight
- 133 kg / 293 lbs.
- Assembled dimensions
- 148 x 84 x 173 cm / 58” x 33” x 68.1” (Active footprint: 175 x 84 x 177 cm / 68.9” x 33” x 69.7”)
- Console · Assembled Weight
- 4.5 kg / 10 lbs.
Display, data & connectivity
- Console · ViewFit Connectivity
- Yes
- Console · Heart Rate
- Bluetooth wireless heart rate, Bluetooth heart rate strap included
- Console · Console Extras
- Integrated reading rack, energy saver mode, audio in/out
- Console · Console Apps
- My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
- Console · Passport Ready
- No
- Console · Speakers
- 3 Watt
- Console · HDMI Port
- No
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor
- Console · WiFi Enabled
- ViewFit Connectivity, entertainment apps, software updates
- Console · Display Type
- 10” class capacitive touchscreen (26 cm)

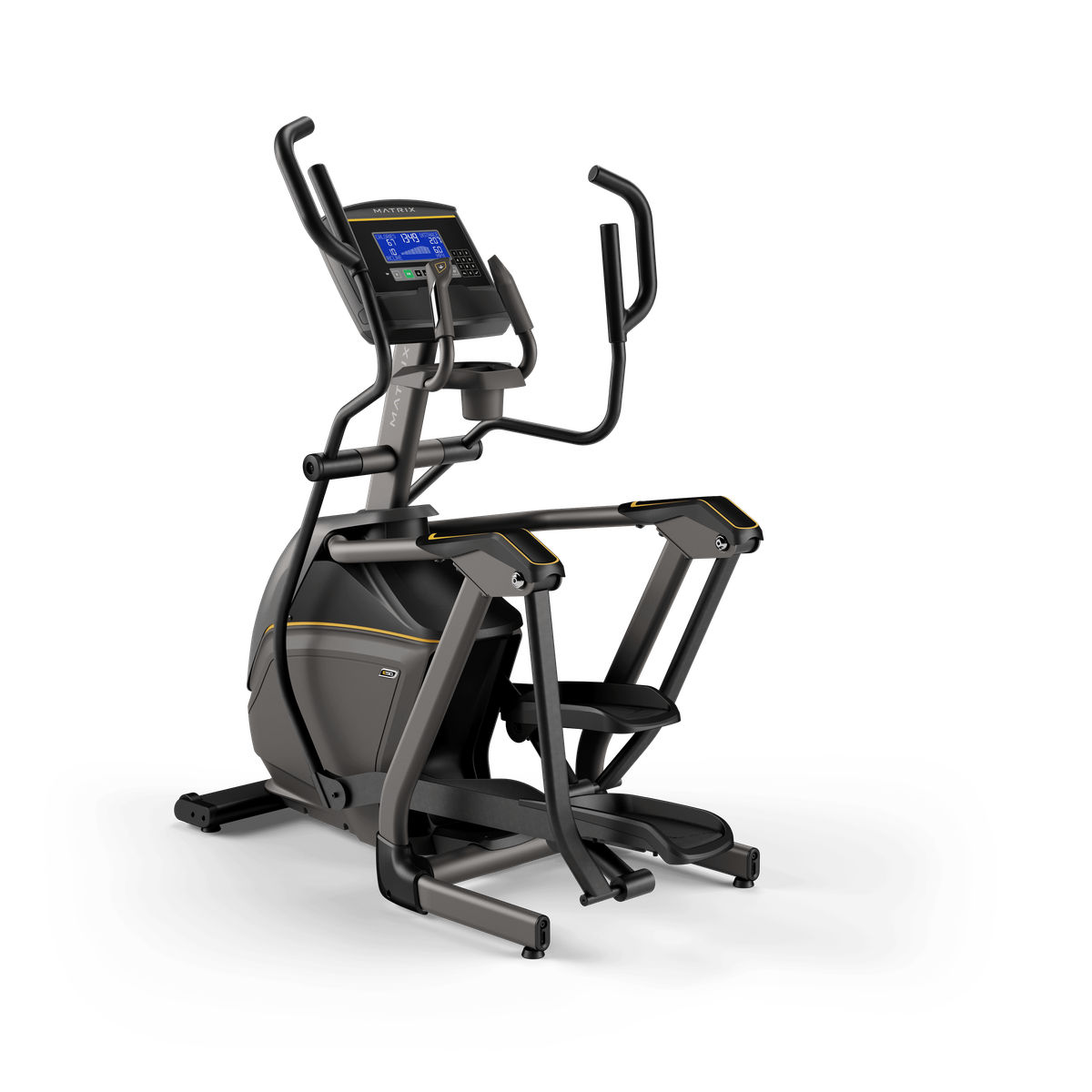

XR
Console details
Construction, comfort & adjustment
- Handlebar design
- Multi-position dual action, stationary with resistance toggles and heart rate grips
- Power requirements
- 120 V AC power, 15 A circuit (voltage may vary outside the USA)
- Frame construction
- Suspension Elliptical Trainer
- Options
- Water bottle holder, accessory tray
Performance & training system
- Pedal spacing
- 6.35 cm / 2.5”
- Pedal type
- Oversized with rubber inserts
- Power Incline
- N/A
- Resistance range
- 30 levels, electronically adjustable
- Resistance system
- Exact Force induction brake
- Stride length
- 51 cm / 20”
Dimensions, weight & installation
- Step-on height
- 23 cm / 9.1”
- Maximum user weight
- 147 kg / 325 lbs.
- Flywheel weight
- N/A
- Assembled weight
- 133 kg / 293 lbs.
- Assembled dimensions
- 148 x 84 x 173 cm / 58” x 33” x 68.1” (Active footprint: 175 x 84 x 177 cm / 68.9” x 33” x 69.7”)
- Console · Assembled Weight
- 3.5 kg / 8 lbs.
Display, data & connectivity
- Console · Heart Rate
- Bluetooth wireless heart rate
- Console · Console Extras
- Integrated reading rack, energy saver mode
- Console · Console Apps
- No
- Console · Passport Ready
- No
- Console · ViewFit Connectivity
- No
- Console · HDMI Port
- No
- Console · USB Port
- Internal USB port for software updates
- Console · Speakers
- No
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, connect wireless heart rate monitor
- Console · Display
- 8.5” extra-wide blue LCD (22 cm)
- Console · WiFi Enabled
- No
