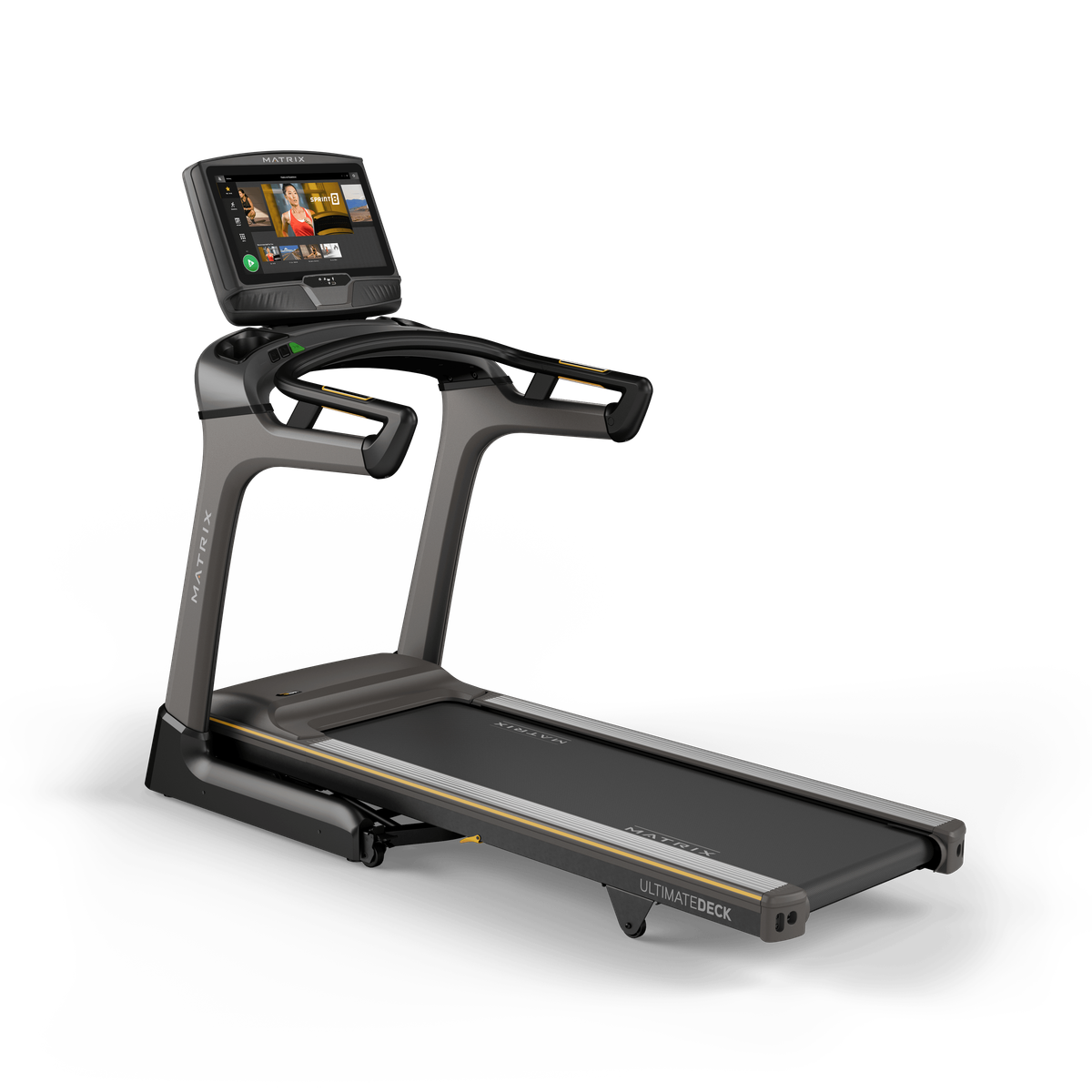

Folding treadmill TF50
TF50
Matrix TF50
Equipment Matrix for home, with specifications and configuration choices.
- Motor
- 3.25 hp continuous-duty DC Johnson Drive System
- Running area
- 51 x 152 cm / 20” x 60”
- Speed range
- 0.8–20 km/h / 0.5–12.5 mph
- Incline range
- 0%–15%
PRODUCT DATA / TF50
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Dimensions, weight & installation
- Folded Dimensions
- 106 x 91 x 192 cm / 42” x 36” x 76”
- Maximum user weight
- 181 kg / 400 lbs.
- Assembled dimensions
- 206 x 91 x 158 cm / 81” x 36” x 62”
- Step-on height
- 17.8 cm / 7”
Performance & training system
- Incline range
- 0%–15%
- Running surface
- 51 x 152 cm / 20” x 60”
- Running Belt
- 2-ply, 2.2 mm
- Speed range
- 0.8–20 km/h / 0.5–12.5 mph
- Drive system
- 3.25 hp continuous-duty DC Johnson Drive System
- Cushioning system
- Ultimate Deck System
Construction, comfort & adjustment
- Options
- Water bottle pockets, device rack, soft-touch buttons, heart rate grips, aluminum side rails, 4-wheel transport system
- Deck Thickness
- 25.4 mm / 1”
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.
XUR
Console details
Dimensions, weight & installation
- Folded Dimensions
- 106 x 91 x 192 cm / 42” x 36” x 76”
- Maximum user weight
- 181 kg / 400 lbs.
- Assembled dimensions
- 206 x 91 x 158 cm / 81” x 36” x 62”
- Step-on height
- 17.8 cm / 7”
- Console · Assembled Weight
- 10.5 kg / 23 lbs.
Performance & training system
- Incline range
- 0%–15%
- Running surface
- 51 x 152 cm / 20” x 60”
- Running Belt
- 2-ply, 2.2 mm
- Speed range
- 0.8–20 km/h / 0.5–12.5 mph
- Drive system
- 3.25 hp continuous-duty DC Johnson Drive System
- Cushioning system
- Ultimate Deck System
Construction, comfort & adjustment
- Options
- Water bottle pockets, device rack, soft-touch buttons, heart rate grips, aluminum side rails, 4-wheel transport system
- Deck Thickness
- 25.4 mm / 1”
Display, data & connectivity
- Console · Speakers
- 5 Watt
- Console · Console Apps
- My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Kindle Reader, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
- Console · Display Type
- 22” class HD capacitive touchscreen (55.8 cm)
- Console · WiFi Enabled
- ViewFit Connectivity, entertainment apps, software updates
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, connect wireless headphones, connect wireless heart rate monitor
- Console · HDMI Port
- Connect streaming media devices, phones or tablets
- Console · Passport Ready
- No
- Console · ViewFit Connectivity
- Yes
- Console · Heart Rate
- Bluetooth wireless heart rate, Bluetooth heart rate strap included
- Console · Console Extras
- Integrated reading rack, energy saver mode, audio in/out

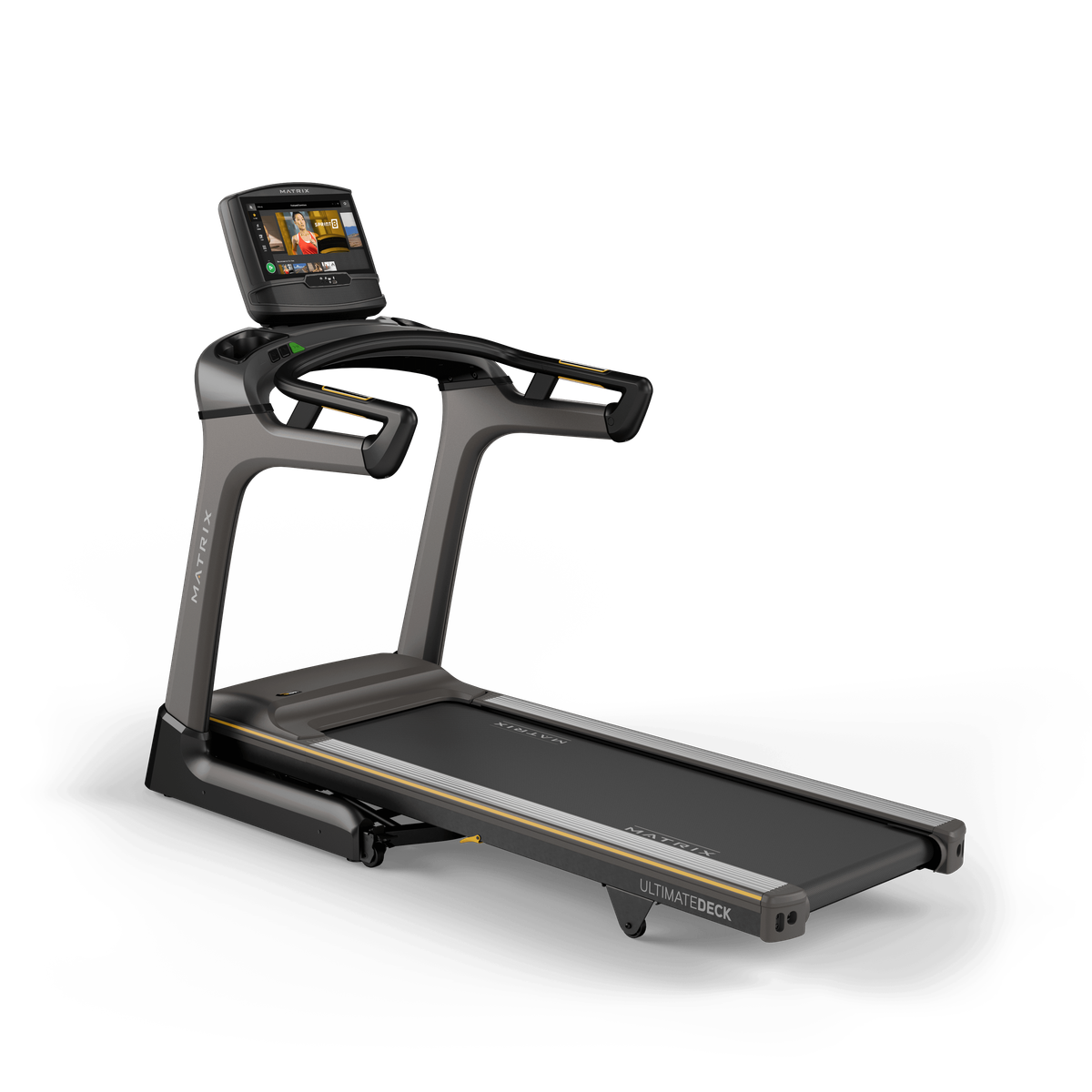

XIR
Console details
Dimensions, weight & installation
- Folded Dimensions
- 106 x 91 x 192 cm / 42” x 36” x 76”
- Maximum user weight
- 181 kg / 400 lbs.
- Assembled dimensions
- 206 x 91 x 158 cm / 81” x 36” x 62”
- Step-on height
- 17.8 cm / 7”
- Console · Assembled Weight
- 5.5 kg / 12 lbs.
Performance & training system
- Incline range
- 0%–15%
- Running surface
- 51 x 152 cm / 20” x 60”
- Running Belt
- 2-ply, 2.2 mm
- Speed range
- 0.8–20 km/h / 0.5–12.5 mph
- Drive system
- 3.25 hp continuous-duty DC Johnson Drive System
- Cushioning system
- Ultimate Deck System
Construction, comfort & adjustment
- Options
- Water bottle pockets, device rack, soft-touch buttons, heart rate grips, aluminum side rails, 4-wheel transport system
- Deck Thickness
- 25.4 mm / 1”
Display, data & connectivity
- Console · ViewFit Connectivity
- Yes
- Console · Heart Rate
- Bluetooth wireless heart rate, Bluetooth heart rate strap included
- Console · Console Extras
- Integrated reading rack, energy saver mode, audio in/out
- Console · Passport Ready
- No
- Console · Speakers
- 5 Watt
- Console · Console Apps
- My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Kindle Reader, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor
- Console · HDMI Port
- Connect streaming media devices, phones or tablets
- Console · Display Type
- 16” class HD capacitive touchscreen (40 cm)
- Console · WiFi Enabled
- ViewFit Connectivity, entertainment apps, software updates

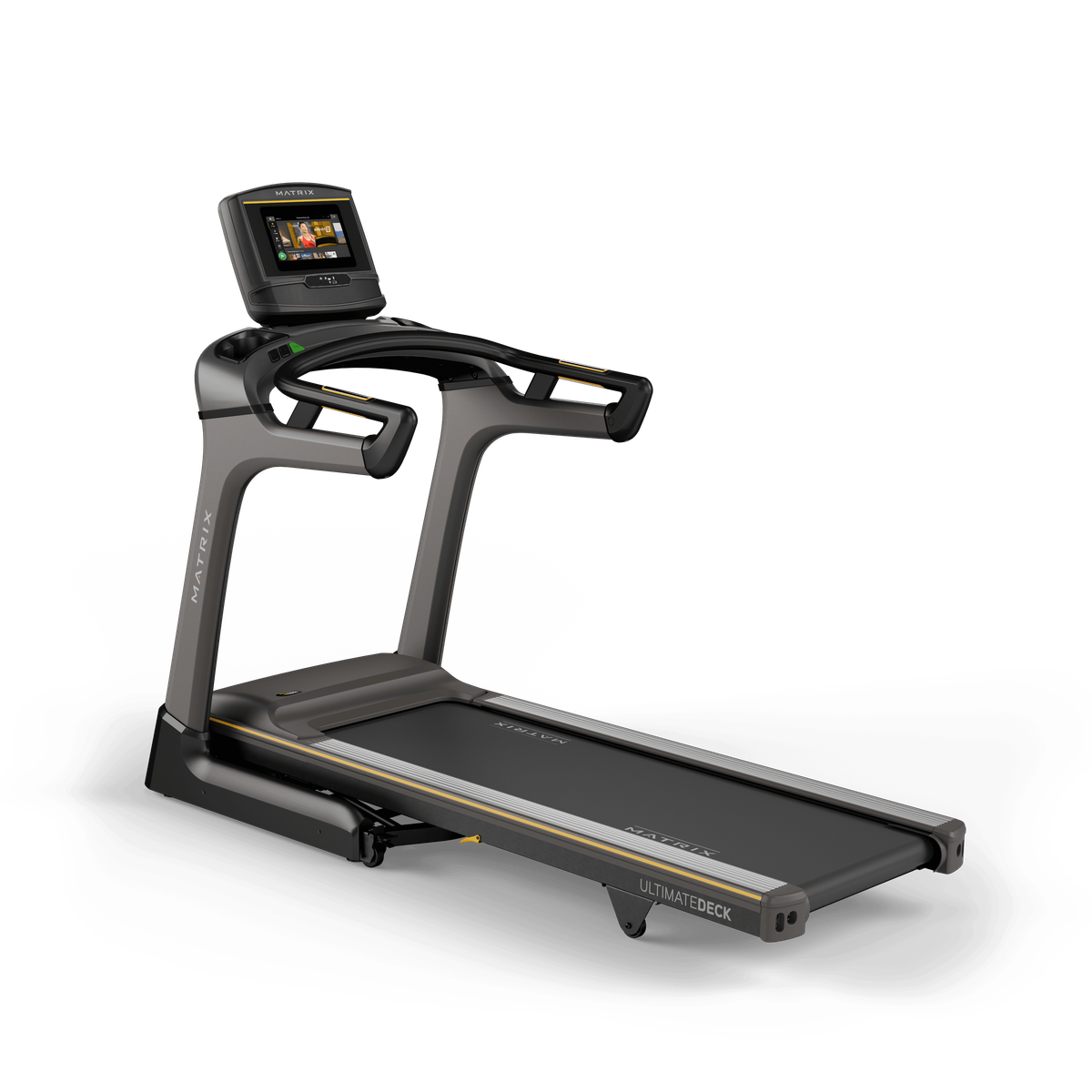

XER
Console details
Dimensions, weight & installation
- Folded Dimensions
- 106 x 91 x 192 cm / 42” x 36” x 76”
- Maximum user weight
- 181 kg / 400 lbs.
- Assembled dimensions
- 206 x 91 x 158 cm / 81” x 36” x 62”
- Step-on height
- 17.8 cm / 7”
- Console · Assembled Weight
- 4.5 kg / 10 lbs.
Performance & training system
- Incline range
- 0%–15%
- Running surface
- 51 x 152 cm / 20” x 60”
- Running Belt
- 2-ply, 2.2 mm
- Speed range
- 0.8–20 km/h / 0.5–12.5 mph
- Drive system
- 3.25 hp continuous-duty DC Johnson Drive System
- Cushioning system
- Ultimate Deck System
Construction, comfort & adjustment
- Options
- Water bottle pockets, device rack, soft-touch buttons, heart rate grips, aluminum side rails, 4-wheel transport system
- Deck Thickness
- 25.4 mm / 1”
Display, data & connectivity
- Console · ViewFit Connectivity
- Yes
- Console · Heart Rate
- Bluetooth wireless heart rate, Bluetooth heart rate strap included
- Console · Console Extras
- Integrated reading rack, energy saver mode, audio in/out
- Console · Console Apps
- My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
- Console · Passport Ready
- No
- Console · Speakers
- 3 Watt
- Console · HDMI Port
- No
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor
- Console · WiFi Enabled
- ViewFit Connectivity, entertainment apps, software updates
- Console · Display Type
- 10” class capacitive touchscreen (26 cm)
XR
Console details
Dimensions, weight & installation
- Folded Dimensions
- 106 x 91 x 192 cm / 42” x 36” x 76”
- Maximum user weight
- 181 kg / 400 lbs.
- Assembled dimensions
- 206 x 91 x 158 cm / 81” x 36” x 62”
- Step-on height
- 17.8 cm / 7”
- Console · Assembled Weight
- 3.5 kg / 8 lbs.
Performance & training system
- Incline range
- 0%–15%
- Running surface
- 51 x 152 cm / 20” x 60”
- Running Belt
- 2-ply, 2.2 mm
- Speed range
- 0.8–20 km/h / 0.5–12.5 mph
- Drive system
- 3.25 hp continuous-duty DC Johnson Drive System
- Cushioning system
- Ultimate Deck System
Construction, comfort & adjustment
- Options
- Water bottle pockets, device rack, soft-touch buttons, heart rate grips, aluminum side rails, 4-wheel transport system
- Deck Thickness
- 25.4 mm / 1”
Display, data & connectivity
- Console · Heart Rate
- Bluetooth wireless heart rate
- Console · Console Extras
- Integrated reading rack, energy saver mode
- Console · Console Apps
- No
- Console · Passport Ready
- No
- Console · ViewFit Connectivity
- No
- Console · HDMI Port
- No
- Console · USB Port
- Internal USB port for software updates
- Console · Speakers
- No
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, connect wireless heart rate monitor
- Console · Display
- 8.5” extra-wide blue LCD (22 cm)
- Console · WiFi Enabled
- No
