MATRIX / Matrix Home
Stair climber C50
C50
Matrix C50
Equipment Matrix for home, with specifications and configuration choices.
- Dimensions
- 135 x 72 x 191 cm / 53” x 28” x 75”
- Resistance levels
- 25 levels, electronically adjustable
PRODUCT DATA / C50
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Dimensions, weight & installation
- Assembled dimensions
- 135 x 72 x 191 cm / 53” x 28” x 75”
- Assembled weight
- 134.5 kg / 297 lbs.
- Step-on height
- 26.7 cm / 10.5”
Construction, comfort & adjustment
- Options
- Water bottle holder
- Frame construction
- ClimbMill
- Handlebar design
- Multi-position with in reach controls and heart rate grips
- Electrical Requirements
- 120 V AC power, 15 A circuit (voltage may vary outside the USA)
- Step Depth
- 23 cm / 9”
- Steps Per Minute
- 24–137 SPM
- User Weight Range
- Minimum: 45 kg / 99 lbs. Maximum: 136 kg / 300 lbs.
Performance & training system
- Resistance range
- 25 levels, electronically adjustable
- Resistance system
- Exact Force induction brake
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.

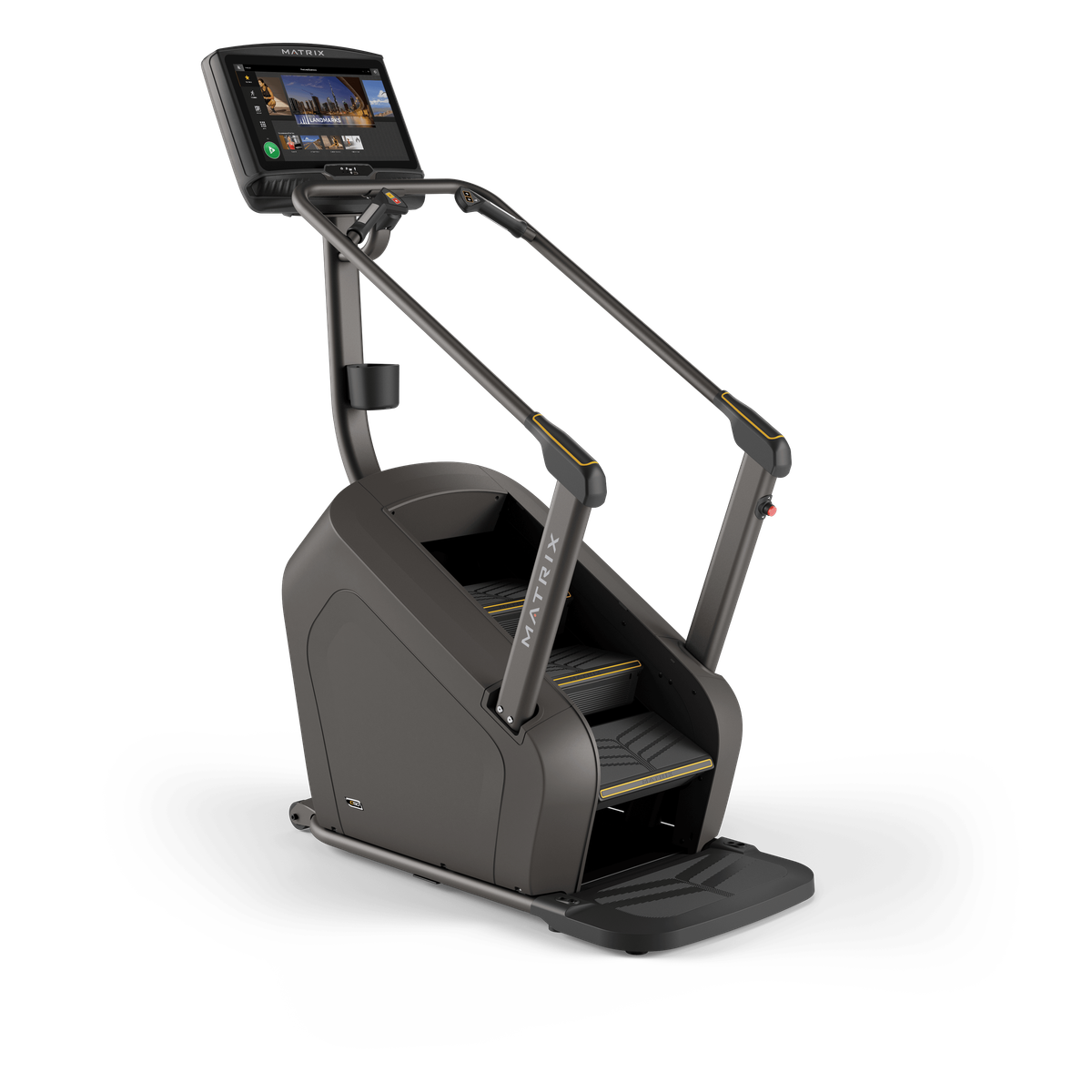

XUR
Console details
Dimensions, weight & installation
- Assembled dimensions
- 135 x 72 x 191 cm / 53” x 28” x 75”
- Assembled weight
- 134.5 kg / 297 lbs.
- Step-on height
- 26.7 cm / 10.5”
- Console · Assembled Weight
- 10.5 kg / 23 lbs.
Construction, comfort & adjustment
- Options
- Water bottle holder
- Frame construction
- ClimbMill
- Handlebar design
- Multi-position with in reach controls and heart rate grips
- Electrical Requirements
- 120 V AC power, 15 A circuit (voltage may vary outside the USA)
- Step Depth
- 23 cm / 9”
- Steps Per Minute
- 24–137 SPM
- User Weight Range
- Minimum: 45 kg / 99 lbs. Maximum: 136 kg / 300 lbs.
Performance & training system
- Resistance range
- 25 levels, electronically adjustable
- Resistance system
- Exact Force induction brake
Display, data & connectivity
- Console · Speakers
- 5 Watt
- Console · Console Apps
- My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Kindle Reader, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
- Console · Display Type
- 22” class HD capacitive touchscreen (55.8 cm)
- Console · WiFi Enabled
- ViewFit Connectivity, entertainment apps, software updates
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, connect wireless headphones, connect wireless heart rate monitor
- Console · HDMI Port
- Connect streaming media devices, phones or tablets
- Console · Passport Ready
- No
- Console · ViewFit Connectivity
- Yes
- Console · Heart Rate
- Bluetooth wireless heart rate, Bluetooth heart rate strap included
- Console · Console Extras
- Integrated reading rack, energy saver mode, audio in/out

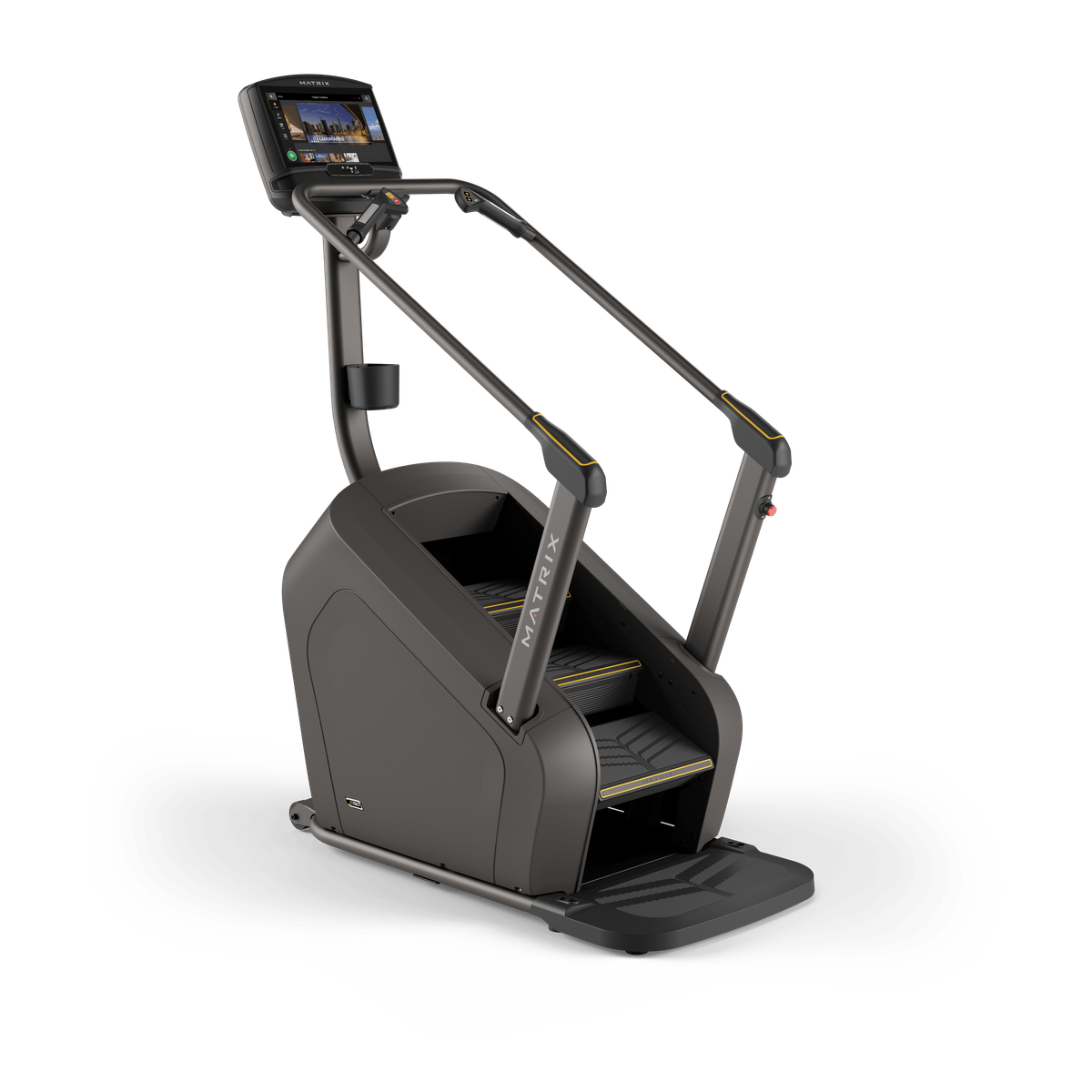

XIR
Console details
Dimensions, weight & installation
- Assembled dimensions
- 135 x 72 x 191 cm / 53” x 28” x 75”
- Assembled weight
- 134.5 kg / 297 lbs.
- Step-on height
- 26.7 cm / 10.5”
- Console · Assembled Weight
- 5.5 kg / 12 lbs.
Construction, comfort & adjustment
- Options
- Water bottle holder
- Frame construction
- ClimbMill
- Handlebar design
- Multi-position with in reach controls and heart rate grips
- Electrical Requirements
- 120 V AC power, 15 A circuit (voltage may vary outside the USA)
- Step Depth
- 23 cm / 9”
- Steps Per Minute
- 24–137 SPM
- User Weight Range
- Minimum: 45 kg / 99 lbs. Maximum: 136 kg / 300 lbs.
Performance & training system
- Resistance range
- 25 levels, electronically adjustable
- Resistance system
- Exact Force induction brake
Display, data & connectivity
- Console · ViewFit Connectivity
- Yes
- Console · Heart Rate
- Bluetooth wireless heart rate, Bluetooth heart rate strap included
- Console · Console Extras
- Integrated reading rack, energy saver mode, audio in/out
- Console · Passport Ready
- No
- Console · Speakers
- 5 Watt
- Console · Console Apps
- My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Kindle Reader, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor
- Console · HDMI Port
- Connect streaming media devices, phones or tablets
- Console · Display Type
- 16” class HD capacitive touchscreen (40 cm)
- Console · WiFi Enabled
- ViewFit Connectivity, entertainment apps, software updates
XER
Console details
Dimensions, weight & installation
- Assembled dimensions
- 135 x 72 x 191 cm / 53” x 28” x 75”
- Assembled weight
- 134.5 kg / 297 lbs.
- Step-on height
- 26.7 cm / 10.5”
- Console · Assembled Weight
- 4.5 kg / 10 lbs.
Construction, comfort & adjustment
- Options
- Water bottle holder
- Frame construction
- ClimbMill
- Handlebar design
- Multi-position with in reach controls and heart rate grips
- Electrical Requirements
- 120 V AC power, 15 A circuit (voltage may vary outside the USA)
- Step Depth
- 23 cm / 9”
- Steps Per Minute
- 24–137 SPM
- User Weight Range
- Minimum: 45 kg / 99 lbs. Maximum: 136 kg / 300 lbs.
Performance & training system
- Resistance range
- 25 levels, electronically adjustable
- Resistance system
- Exact Force induction brake
Display, data & connectivity
- Console · ViewFit Connectivity
- Yes
- Console · Heart Rate
- Bluetooth wireless heart rate, Bluetooth heart rate strap included
- Console · Console Extras
- Integrated reading rack, energy saver mode, audio in/out
- Console · Console Apps
- My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
- Console · Passport Ready
- No
- Console · Speakers
- 3 Watt
- Console · HDMI Port
- No
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor
- Console · WiFi Enabled
- ViewFit Connectivity, entertainment apps, software updates
- Console · Display Type
- 10” class capacitive touchscreen (26 cm)

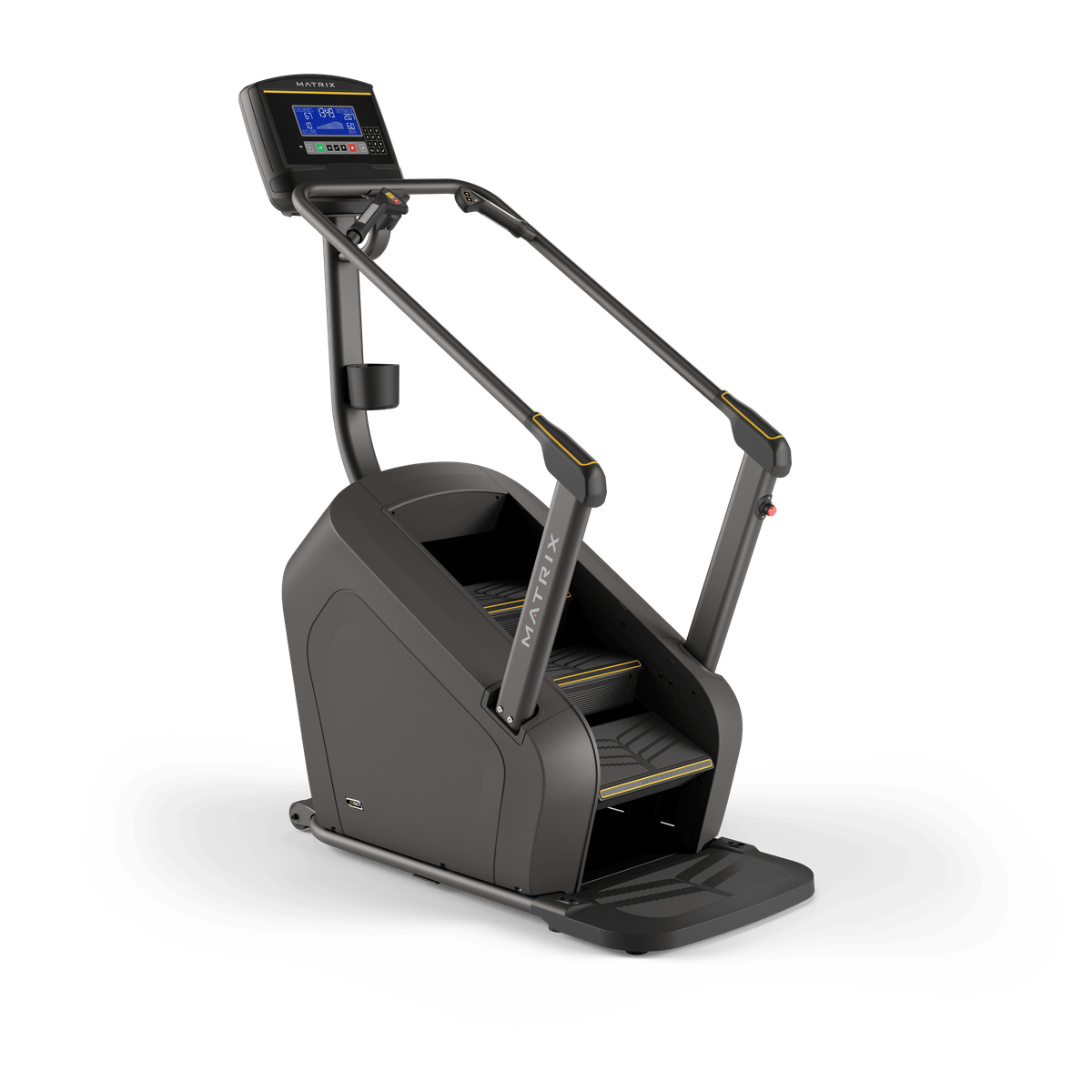

XR
Console details
Dimensions, weight & installation
- Assembled dimensions
- 135 x 72 x 191 cm / 53” x 28” x 75”
- Assembled weight
- 134.5 kg / 297 lbs.
- Step-on height
- 26.7 cm / 10.5”
- Console · Assembled Weight
- 3.5 kg / 8 lbs.
Construction, comfort & adjustment
- Options
- Water bottle holder
- Frame construction
- ClimbMill
- Handlebar design
- Multi-position with in reach controls and heart rate grips
- Electrical Requirements
- 120 V AC power, 15 A circuit (voltage may vary outside the USA)
- Step Depth
- 23 cm / 9”
- Steps Per Minute
- 24–137 SPM
- User Weight Range
- Minimum: 45 kg / 99 lbs. Maximum: 136 kg / 300 lbs.
Performance & training system
- Resistance range
- 25 levels, electronically adjustable
- Resistance system
- Exact Force induction brake
Display, data & connectivity
- Console · Heart Rate
- Bluetooth wireless heart rate
- Console · Console Extras
- Integrated reading rack, energy saver mode
- Console · Console Apps
- No
- Console · Passport Ready
- No
- Console · ViewFit Connectivity
- No
- Console · HDMI Port
- No
- Console · USB Port
- Internal USB port for software updates
- Console · Speakers
- No
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, connect wireless heart rate monitor
- Console · Display
- 8.5” extra-wide blue LCD (22 cm)
- Console · WiFi Enabled
- No
