MATRIX / Matrix Home

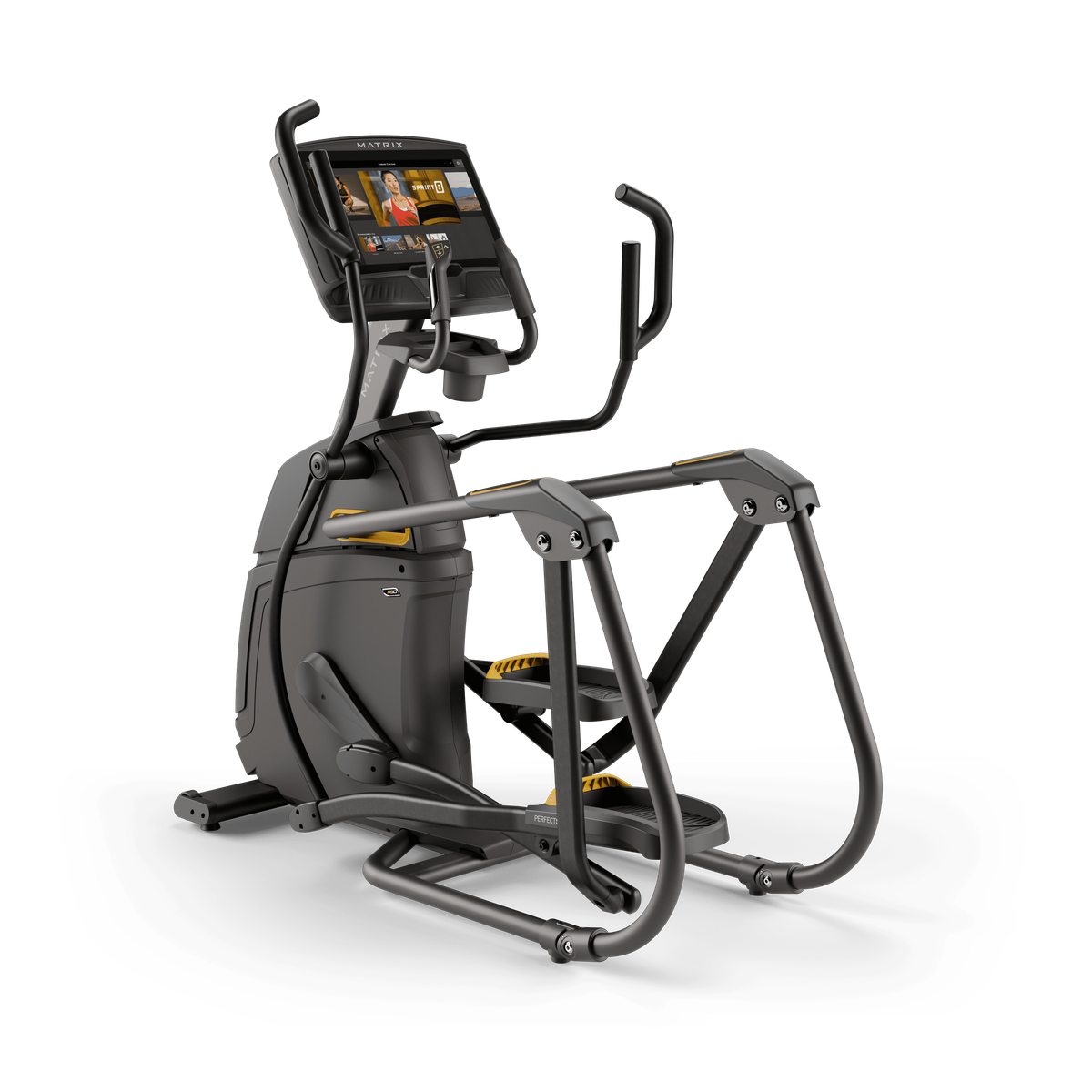

Ascent Trainer A50
A50
Matrix A50
Equipment Matrix for home, with specifications and configuration choices.
- Dimensions
- 191 x 86 x 174 cm / 75.2” x 33.9” x 68.5”
- Resistance levels
- 30 levels, electronically adjustable
- Stride length
- 51–61 cm / 20”–24”
- Maximum user weight
- 159 kg / 350 lbs.
PRODUCT DATA / A50
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Dimensions, weight & installation
- Step-on height
- 22 cm / 8.7”
- Maximum user weight
- 159 kg / 350 lbs.
- Flywheel weight
- N/A
- Assembled weight
- 148.5 kg / 327 lbs.
- Assembled dimensions
- 191 x 86 x 174 cm / 75.2” x 33.9” x 68.5”
Performance & training system
- Stride length
- 51–61 cm / 20”–24”
- Resistance system
- Exact Force induction brake
- Resistance range
- 30 levels, electronically adjustable
- Power Incline
- 24%–54%
- Pedal type
- Oversized with rubber inserts
- Pedal spacing
- 6.5 cm / 2.6”
- Incline range
- 24%-54%
Construction, comfort & adjustment
- Power requirements
- 120 V AC power, 15 A circuit (voltage may vary outside the USA)
- Handlebar design
- Multi-position dual action, stationary with resistance / incline toggles and heart rate grips
- Frame construction
- Ascent Trainer
- Options
- Water bottle holder, accessory tray
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.
XUR
Console details
Dimensions, weight & installation
- Step-on height
- 22 cm / 8.7”
- Maximum user weight
- 159 kg / 350 lbs.
- Flywheel weight
- N/A
- Assembled weight
- 148.5 kg / 327 lbs.
- Assembled dimensions
- 191 x 86 x 174 cm / 75.2” x 33.9” x 68.5”
- Console · Assembled Weight
- 10.5 kg / 23 lbs.
Performance & training system
- Stride length
- 51–61 cm / 20”–24”
- Resistance system
- Exact Force induction brake
- Resistance range
- 30 levels, electronically adjustable
- Power Incline
- 24%–54%
- Pedal type
- Oversized with rubber inserts
- Pedal spacing
- 6.5 cm / 2.6”
- Incline range
- 24%-54%
Construction, comfort & adjustment
- Power requirements
- 120 V AC power, 15 A circuit (voltage may vary outside the USA)
- Handlebar design
- Multi-position dual action, stationary with resistance / incline toggles and heart rate grips
- Frame construction
- Ascent Trainer
- Options
- Water bottle holder, accessory tray
Display, data & connectivity
- Console · Speakers
- 5 Watt
- Console · Console Apps
- My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Kindle Reader, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
- Console · Display Type
- 22” class HD capacitive touchscreen (55.8 cm)
- Console · WiFi Enabled
- ViewFit Connectivity, entertainment apps, software updates
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, connect wireless headphones, connect wireless heart rate monitor
- Console · HDMI Port
- Connect streaming media devices, phones or tablets
- Console · Passport Ready
- No
- Console · ViewFit Connectivity
- Yes
- Console · Heart Rate
- Bluetooth wireless heart rate, Bluetooth heart rate strap included
- Console · Console Extras
- Integrated reading rack, energy saver mode, audio in/out

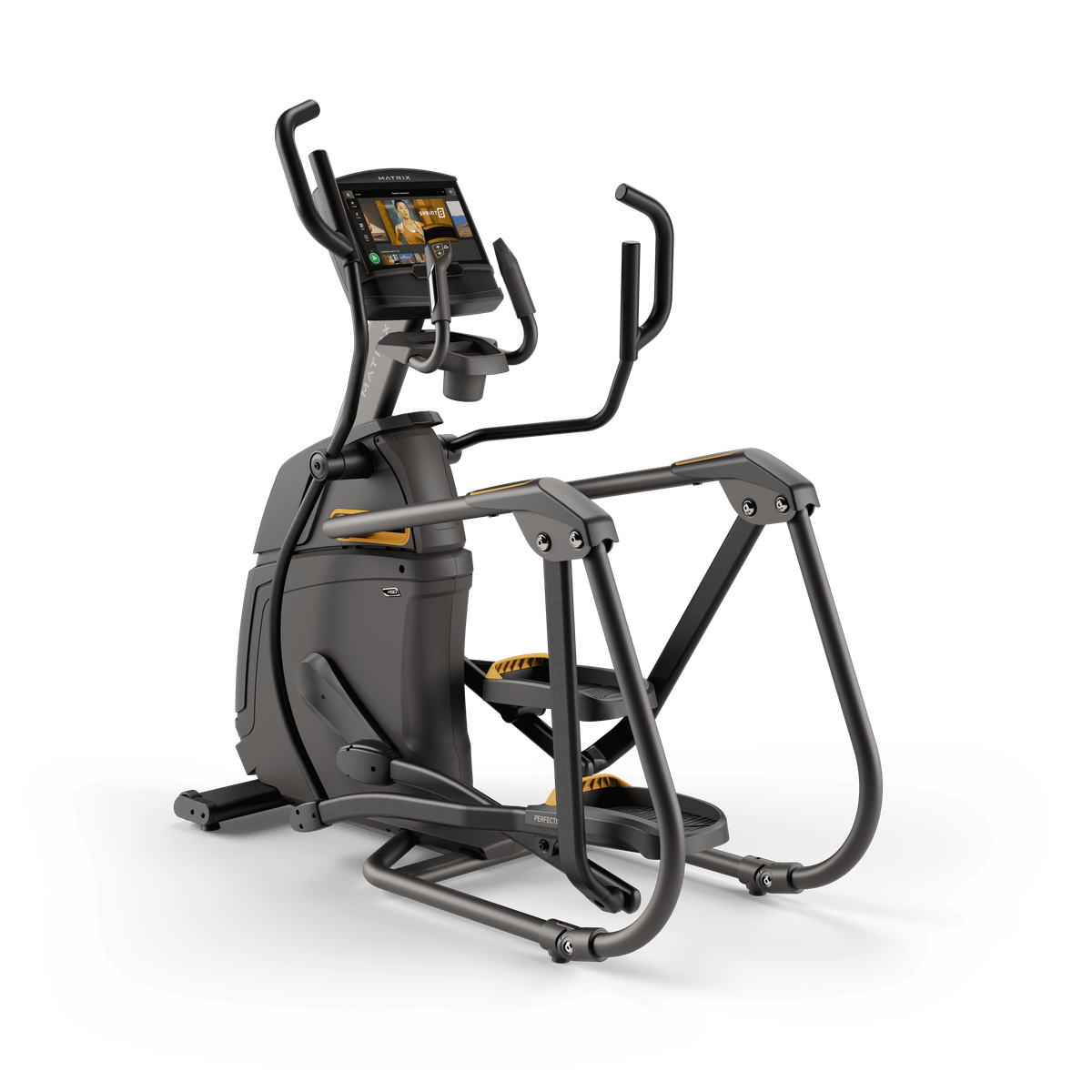

XIR
Console details
Dimensions, weight & installation
- Step-on height
- 22 cm / 8.7”
- Maximum user weight
- 159 kg / 350 lbs.
- Flywheel weight
- N/A
- Assembled weight
- 148.5 kg / 327 lbs.
- Assembled dimensions
- 191 x 86 x 174 cm / 75.2” x 33.9” x 68.5”
- Console · Assembled Weight
- 5.5 kg / 12 lbs.
Performance & training system
- Stride length
- 51–61 cm / 20”–24”
- Resistance system
- Exact Force induction brake
- Resistance range
- 30 levels, electronically adjustable
- Power Incline
- 24%–54%
- Pedal type
- Oversized with rubber inserts
- Pedal spacing
- 6.5 cm / 2.6”
- Incline range
- 24%-54%
Construction, comfort & adjustment
- Power requirements
- 120 V AC power, 15 A circuit (voltage may vary outside the USA)
- Handlebar design
- Multi-position dual action, stationary with resistance / incline toggles and heart rate grips
- Frame construction
- Ascent Trainer
- Options
- Water bottle holder, accessory tray
Display, data & connectivity
- Console · ViewFit Connectivity
- Yes
- Console · Heart Rate
- Bluetooth wireless heart rate, Bluetooth heart rate strap included
- Console · Console Extras
- Integrated reading rack, energy saver mode, audio in/out
- Console · Passport Ready
- No
- Console · Speakers
- 5 Watt
- Console · Console Apps
- My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Kindle Reader, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor
- Console · HDMI Port
- Connect streaming media devices, phones or tablets
- Console · Display Type
- 16” class HD capacitive touchscreen (40 cm)
- Console · WiFi Enabled
- ViewFit Connectivity, entertainment apps, software updates

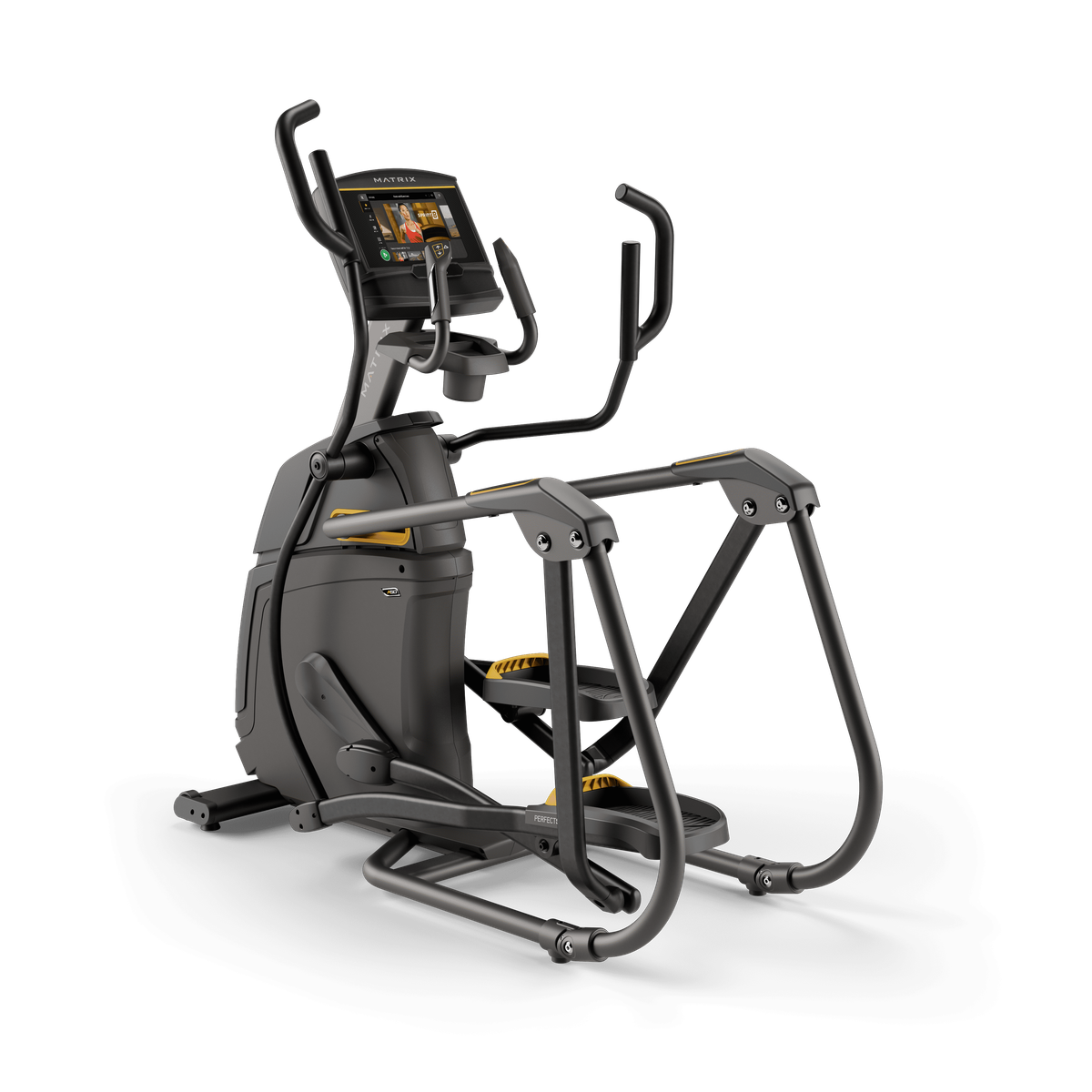

XER
Console details
Dimensions, weight & installation
- Step-on height
- 22 cm / 8.7”
- Maximum user weight
- 159 kg / 350 lbs.
- Flywheel weight
- N/A
- Assembled weight
- 148.5 kg / 327 lbs.
- Assembled dimensions
- 191 x 86 x 174 cm / 75.2” x 33.9” x 68.5”
- Console · Assembled Weight
- 4.5 kg / 10 lbs.
Performance & training system
- Stride length
- 51–61 cm / 20”–24”
- Resistance system
- Exact Force induction brake
- Resistance range
- 30 levels, electronically adjustable
- Power Incline
- 24%–54%
- Pedal type
- Oversized with rubber inserts
- Pedal spacing
- 6.5 cm / 2.6”
- Incline range
- 24%-54%
Construction, comfort & adjustment
- Power requirements
- 120 V AC power, 15 A circuit (voltage may vary outside the USA)
- Handlebar design
- Multi-position dual action, stationary with resistance / incline toggles and heart rate grips
- Frame construction
- Ascent Trainer
- Options
- Water bottle holder, accessory tray
Display, data & connectivity
- Console · ViewFit Connectivity
- Yes
- Console · Heart Rate
- Bluetooth wireless heart rate, Bluetooth heart rate strap included
- Console · Console Extras
- Integrated reading rack, energy saver mode, audio in/out
- Console · Console Apps
- My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
- Console · Passport Ready
- No
- Console · Speakers
- 3 Watt
- Console · HDMI Port
- No
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor
- Console · WiFi Enabled
- ViewFit Connectivity, entertainment apps, software updates
- Console · Display Type
- 10” class capacitive touchscreen (26 cm)

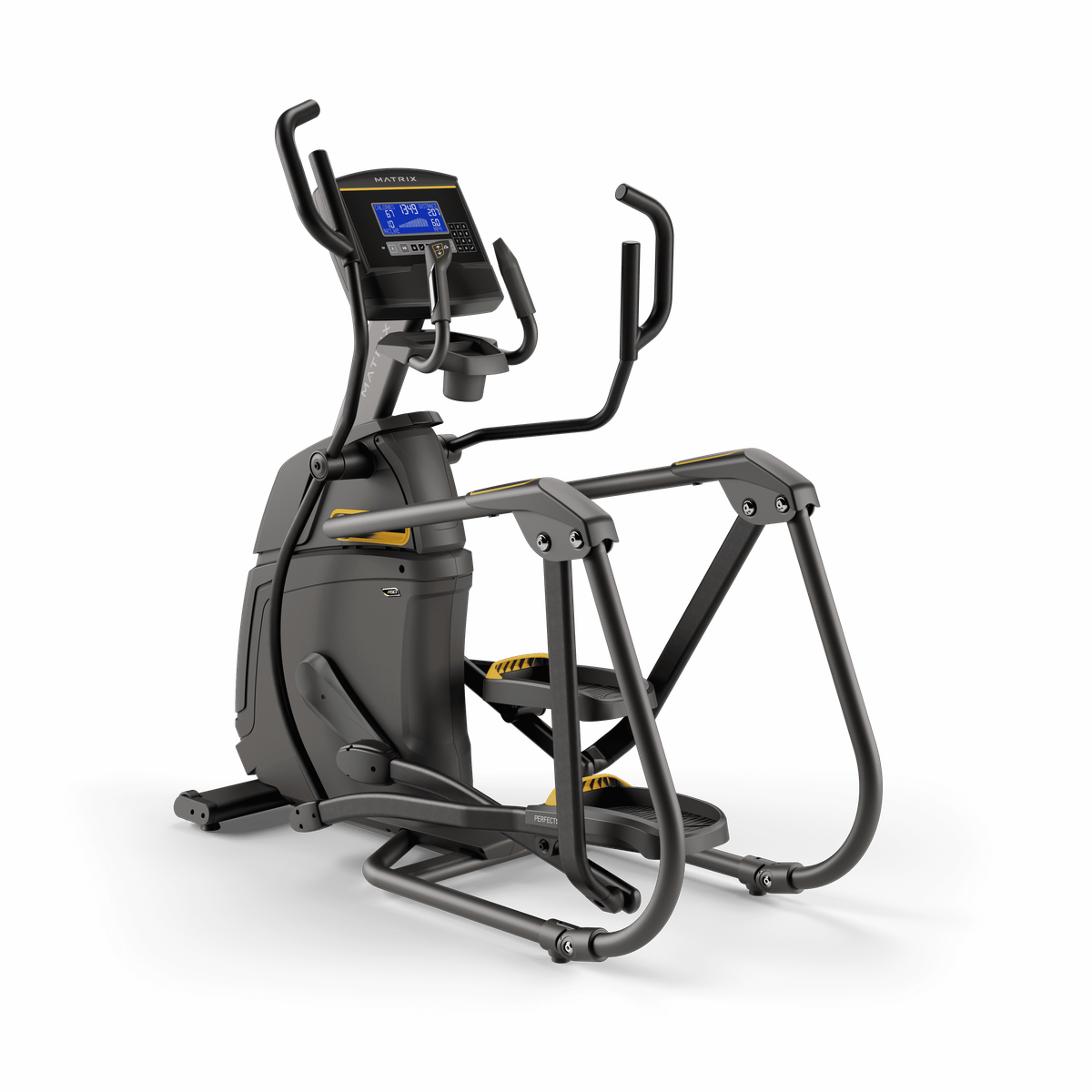

XR
Console details
Dimensions, weight & installation
- Step-on height
- 22 cm / 8.7”
- Maximum user weight
- 159 kg / 350 lbs.
- Flywheel weight
- N/A
- Assembled weight
- 148.5 kg / 327 lbs.
- Assembled dimensions
- 191 x 86 x 174 cm / 75.2” x 33.9” x 68.5”
- Console · Assembled Weight
- 3.5 kg / 8 lbs.
Performance & training system
- Stride length
- 51–61 cm / 20”–24”
- Resistance system
- Exact Force induction brake
- Resistance range
- 30 levels, electronically adjustable
- Power Incline
- 24%–54%
- Pedal type
- Oversized with rubber inserts
- Pedal spacing
- 6.5 cm / 2.6”
- Incline range
- 24%-54%
Construction, comfort & adjustment
- Power requirements
- 120 V AC power, 15 A circuit (voltage may vary outside the USA)
- Handlebar design
- Multi-position dual action, stationary with resistance / incline toggles and heart rate grips
- Frame construction
- Ascent Trainer
- Options
- Water bottle holder, accessory tray
Display, data & connectivity
- Console · Heart Rate
- Bluetooth wireless heart rate
- Console · Console Extras
- Integrated reading rack, energy saver mode
- Console · Console Apps
- No
- Console · Passport Ready
- No
- Console · ViewFit Connectivity
- No
- Console · HDMI Port
- No
- Console · USB Port
- Internal USB port for software updates
- Console · Speakers
- No
- Console · Bluetooth Enabled
- Connect to popular training and coaching apps, connect wireless heart rate monitor
- Console · Display
- 8.5” extra-wide blue LCD (22 cm)
- Console · WiFi Enabled
- No
DOCUMENTS / STAY IN THE DETAILS
Product dossier & manufacturer documents.
PRODUCT DOSSIER
Printable product dossier
The images, specifications and options on this page, formatted for printing or saving as PDF through your browser.
MATRIX KNOWLEDGE
Knowledge library
More catalogs, PACE & seca, Resources for planning and equipment selection.
Explore the knowledge librarySources & manufacturer website
Specifications are based on data from MATRIX in this site’s catalog. Manufacturer specifications may change; final configuration, availability, warranty and delivery will be defined in the Eurotec quotation.
