Studio bike ICR50
Matrix ICR50
A model in the regional collection of Matrix. Specifications and availability in Israel are confirmed with Eurotec.
- Dimensions
- 135 x 57 x 109 cm / 53” x 22.5” x 43”
PRODUCT DATA / ICR50
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Performance & training system
- Pedal type
- Dual-sided with SPD and toe cage
- Resistance system
- Magnetic with 11-position, quick-adjust lever, emergency push-to-stop
- Crank design
- Forged steel 170 mm / 6.7”
- Drive system
- Belt drive
- Flywheel
- Rear, aluminum, evenly weighted
Construction, comfort & adjustment
- Accessories
- Water bottle holder
- Seat adjustment
- Vertical and horizontal
- Frame construction
- Indoor cycle
- Handlebar design
- Ergo-formed, multi-position, soft PVC
- User Weight Capacity
- 136 kg / 300 lbs.
- Home Warranty — Labor
- 1 Year
- Home Warranty — Parts
- 3 Years
- Home Warranty — Frame
- 5 Years
- User Height Range
- 155–195 cm / 5'– 6'4”
- Q-Factor
- 159 mm / 6.3”
- Seat Type
- Padded sport saddle
Dimensions, weight & installation
- Assembled weight
- 52 kg / 114 lbs.
- Assembled dimensions
- 135 x 57 x 109 cm / 53” x 22.5” x 43”
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.

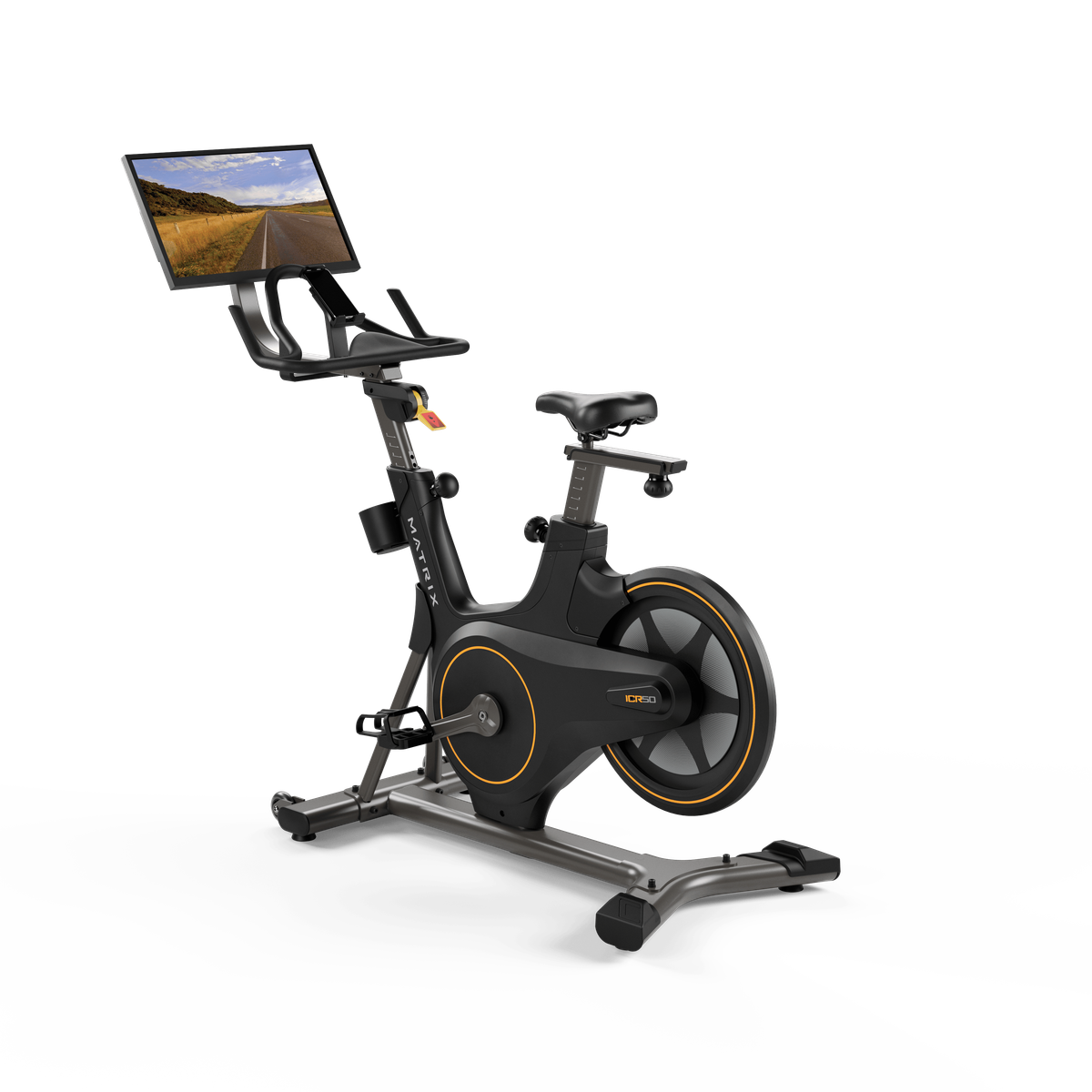

IX
Console details
Performance & training system
- Pedal type
- Dual-sided with SPD and toe cage
- Resistance system
- Magnetic with 11-position, quick-adjust lever, emergency push-to-stop
- Crank design
- Forged steel 170 mm / 6.7”
- Drive system
- Belt drive
- Flywheel
- Rear, aluminum, evenly weighted
Construction, comfort & adjustment
- Accessories
- Water bottle holder
- Seat adjustment
- Vertical and horizontal
- Frame construction
- Indoor cycle
- Handlebar design
- Ergo-formed, multi-position, soft PVC
- User Weight Capacity
- 136 kg / 300 lbs.
- Home Warranty — Labor
- 1 Year
- Home Warranty — Parts
- 3 Years
- Home Warranty — Frame
- 5 Years
- User Height Range
- 155–195 cm / 5'– 6'4”
- Q-Factor
- 159 mm / 6.3”
- Seat Type
- Padded sport saddle
Dimensions, weight & installation
- Assembled weight
- 52 kg / 114 lbs.
- Assembled dimensions
- 135 x 57 x 109 cm / 53” x 22.5” x 43”

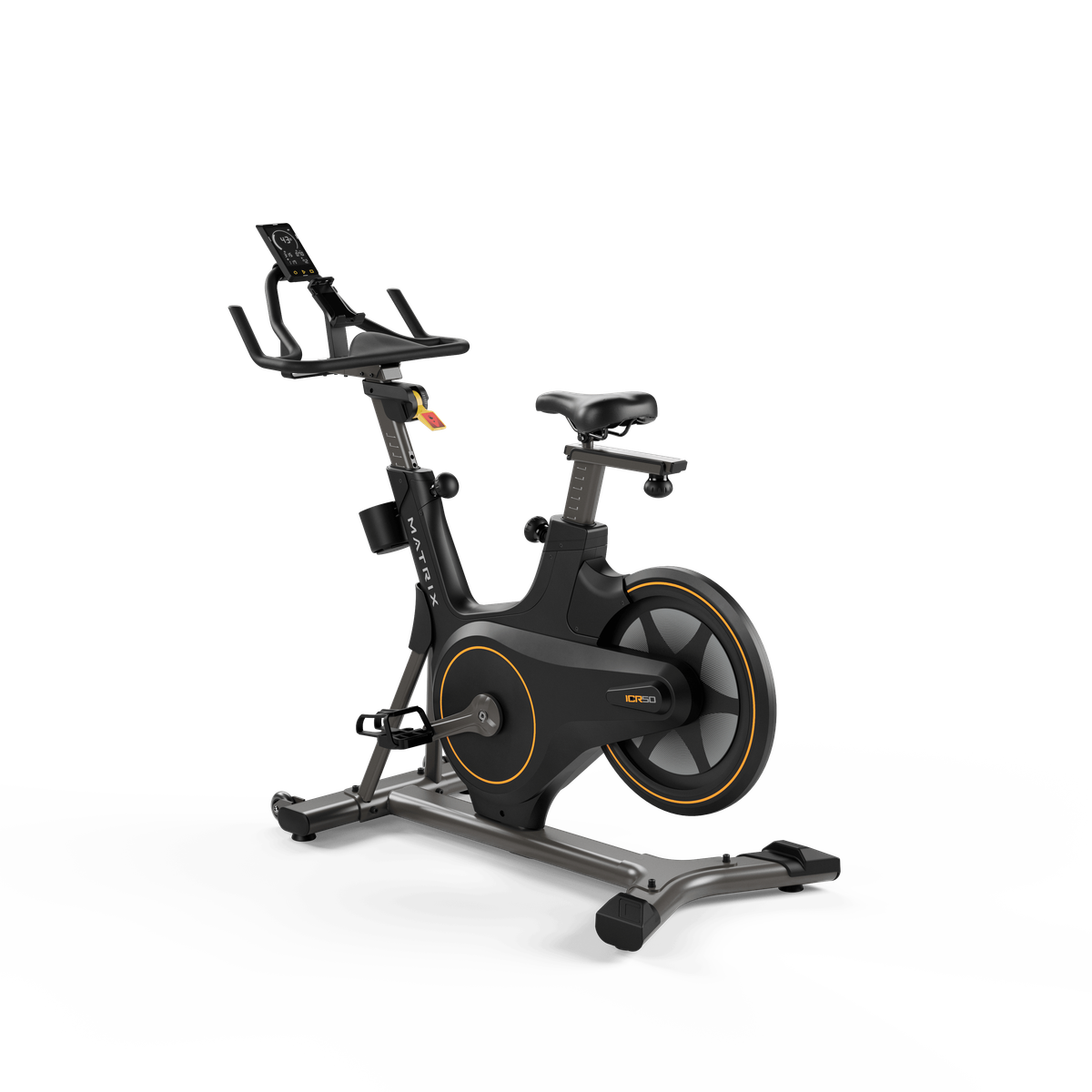

LCD
Console details
Performance & training system
- Pedal type
- Dual-sided with SPD and toe cage
- Resistance system
- Magnetic with 11-position, quick-adjust lever, emergency push-to-stop
- Crank design
- Forged steel 170 mm / 6.7”
- Drive system
- Belt drive
- Flywheel
- Rear, aluminum, evenly weighted
Construction, comfort & adjustment
- Accessories
- Water bottle holder
- Seat adjustment
- Vertical and horizontal
- Frame construction
- Indoor cycle
- Handlebar design
- Ergo-formed, multi-position, soft PVC
- User Weight Capacity
- 136 kg / 300 lbs.
- Home Warranty — Labor
- 1 Year
- Home Warranty — Parts
- 3 Years
- Home Warranty — Frame
- 5 Years
- User Height Range
- 155–195 cm / 5'– 6'4”
- Q-Factor
- 159 mm / 6.3”
- Seat Type
- Padded sport saddle
Dimensions, weight & installation
- Assembled weight
- 52 kg / 114 lbs.
- Assembled dimensions
- 135 x 57 x 109 cm / 53” x 22.5” x 43”
