MATRIX / Magnum

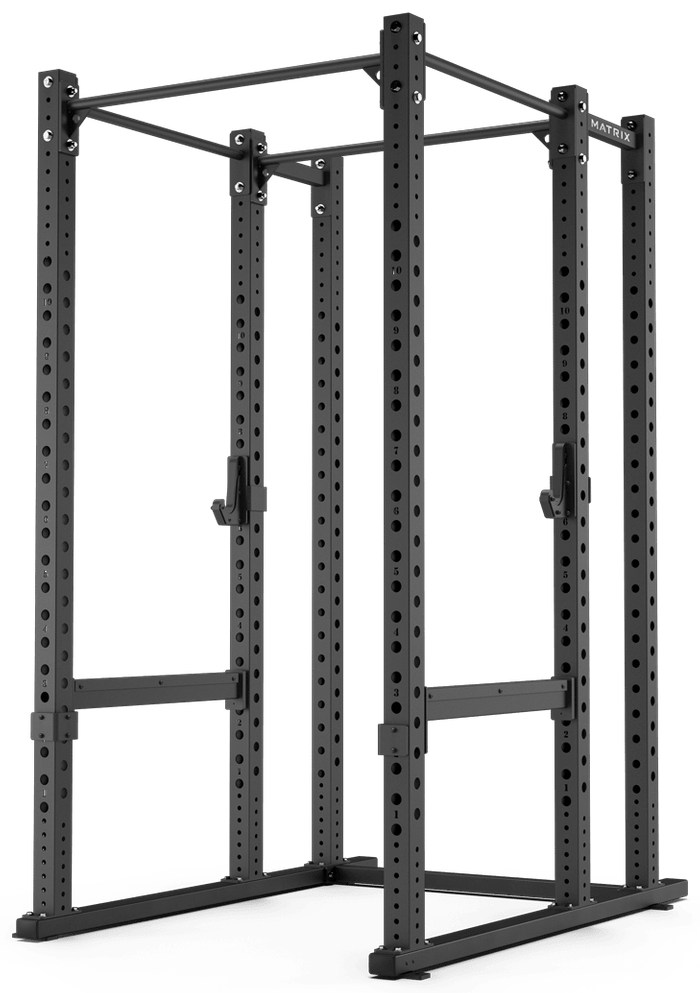

Rack PRO with configuration options
Magnum PRO Configurable Power Rack
A foundation for barbell and weight training, configured for the space.
- Maximum user weight
- 136 kg
PRODUCT DATA / MG-PRO47C-03
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Dimensions, weight & installation
- 7' Overall Dimensions (L x W x H)
- 178 x 132 x 212.5 cm / 70” x 52” x 83.5”
- 8' Overall Dimensions (L x W x H)
- 178 x 132 x 243 cm / 70” x 52” x 95.5”
- 7' Product Weight
- 153 kg / 337 lbs.
- 8' Product Weight
- 165 kg / 363 lbs.
- Maximum user weight
- 136 kg / 300 lbs.
Performance & training system
- Maximum training weight
- 317.5 kg / 700 lbs.
Construction, comfort & adjustment
- Frame Construction
- 7.6 x 7.6 cm / 3” x 3”, 11-gauge steel uprights
- Weight Storage
- Optional chromed weight horns or storage shelves available
Product features — manufacturer details
- Includes adjustable safety arms, j-hooks, and 4 straight chin bars
- J-hooks made of high density polyethylene (HDPE) to protect bar knurling from scratches
- Optional chromed weight horns and/or storage shelves can be added to create a variety of storage solutions
- Fully enclosed style offers ideal spotting abilities
- Also available: MG-PRO47C-7 7' Configurable Power Rack
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.
Configuration and SKU are confirmed with Eurotec.
