MATRIX / Aura

Leg extension

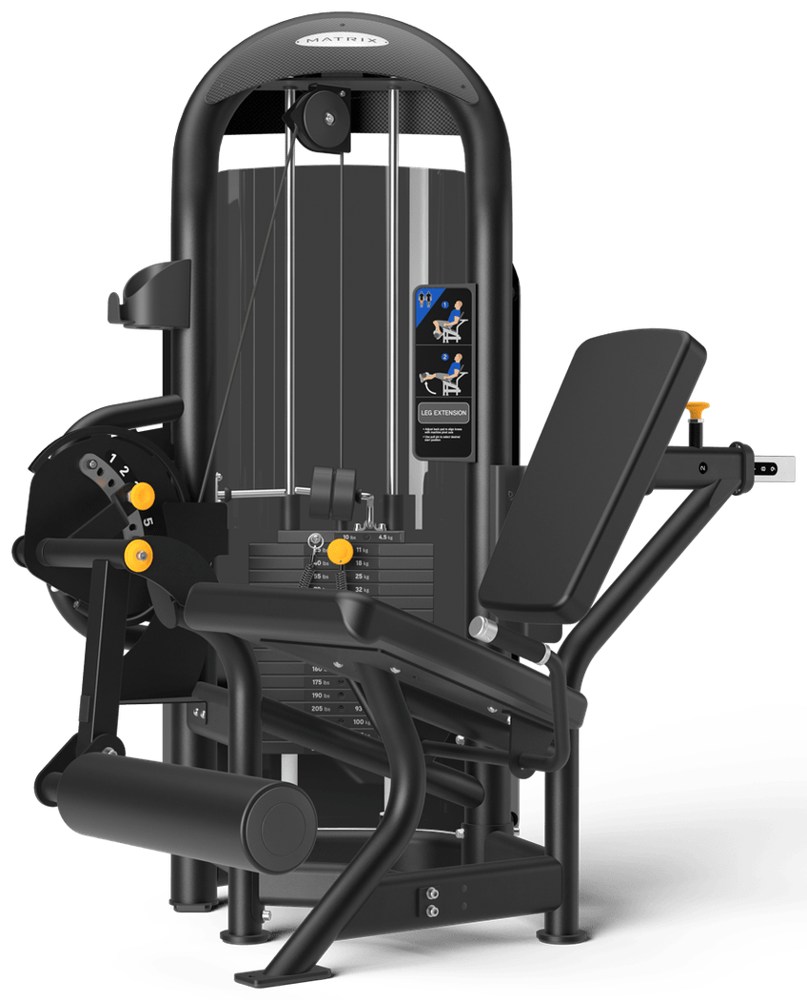

Name: Leg extension G3-S71
Brand: MATRIX

G3-S71

Aura Leg Extension

A selectorized weight stack station for leg and glute training.

Static dimensions: 121.5 × 111.5 × 175 cm
In-use dimensions: 180.5 × 111.5 × 175 cm
Weight stack: 113 kg
Maximum user weight: 136 kg

Choose a configuration & add to request View full specifications

PRODUCT DATA / G3-S71

All the details in one place.

Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.

Dimensions, weight & installation

Maximum user weight: 136 kg / 300 lbs.
In-use dimensions: 180.5 x 111.5 x 175 cm / 71” x 44” x 69”
Static dimensions: 121.5 x 111.5 x 175 cm / 48” x 44” x 69”
Machine weight: 245.5 kg / 542 lbs.

Performance & training system

Maximum training weight: 117.6 kg / 260 lbs.
Weight stack: 113 kg / 250 lbs.
Incremental weights: Yes, 2 x 2.3 kg / 5 lbs. Sliding Weights

Construction, comfort & adjustment

Color-coded Pivots & Adjustments: Yes
Bottle & towel holder: Yes
Instruction placards: Yes
Frame finish: Manufacturer’s proprietary two-coat powder process

CONFIGURE YOUR MATRIX

Configuration is part of the choice.

The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.

Configuration and SKU are confirmed with Eurotec.

Check configurations & request a quote

DOCUMENTS / STAY IN THE DETAILS

Product dossier & manufacturer documents.

PRODUCT DOSSIER

Printable product dossier

The images, specifications and options on this page, formatted for printing or saving as PDF through your browser.

MATRIX 2026 / OFFICIAL PDF

Strength catalog 2026

The complete manufacturer catalog opens in a separate tab. Your product dossier stays open so you can continue selecting equipment.

Open catalog · PDF

MATRIX KNOWLEDGE

Knowledge library

More catalogs, PACE & seca, Resources for planning and equipment selection.

Explore the knowledge library

Sources & manufacturer website

Specifications are based on data from MATRIX in this site’s catalog. Manufacturer specifications may change; final configuration, availability, warranty and delivery will be defined in the Eurotec quotation.

Open the source page at MATRIX ↗
