MATRIX / 3 Series

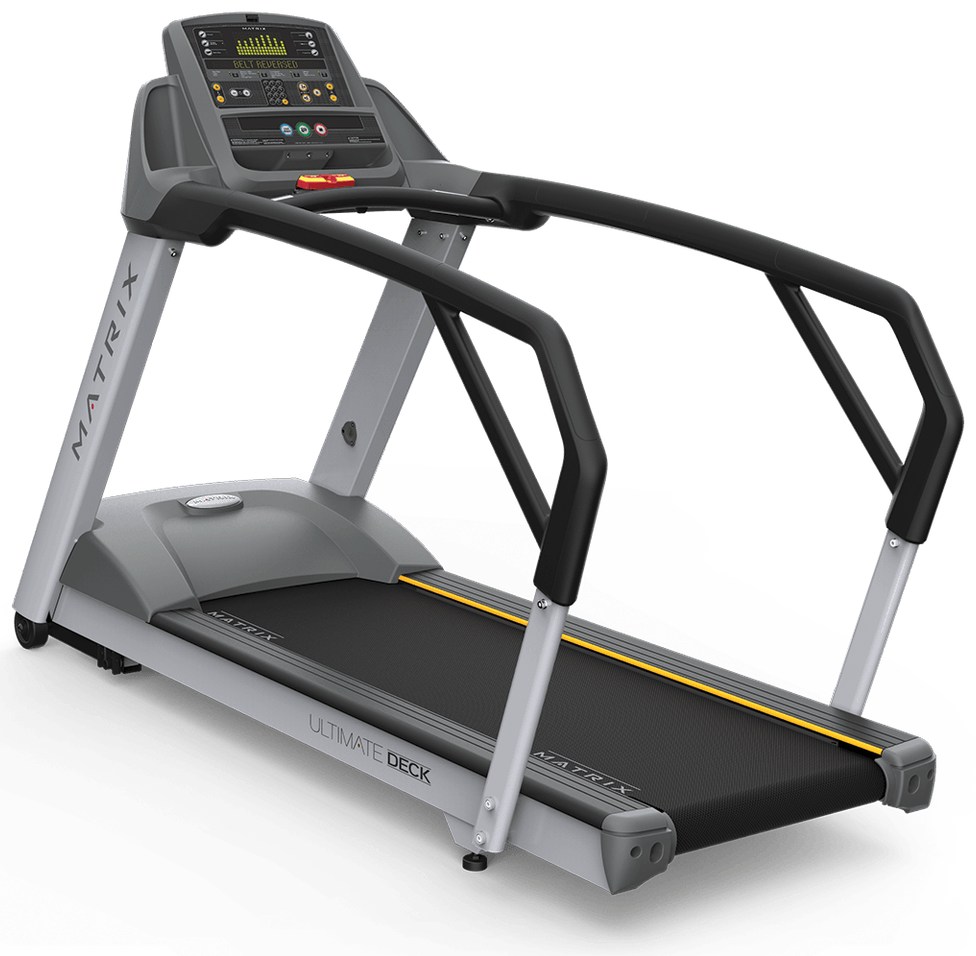

Treadmill T3xm
T3xm Treadmill
A treadmill for walking and running, with display options to tailor the workout experience.
- Motor
- Matrix 4.2 hp AC Dynamic Response Drive System
- Running area
- 152 x 51 cm / 60” x 20”
- Speed
- 0.16 – 19.3 km/h / 0.1 – 12 mph forward / 0.16 - 6.4 km/h 0.1 - 4 mph reverse
- Incline
- 0-15% (590-kg / 1,300-lb. thrust elevation motor)
PRODUCT DATA / T3xm
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Dimensions, weight & installation
- Step-on height
- 19 cm / 7.5”
- Assembled weight
- 172 kg / 378 lbs.
- Maximum user weight
- 182 kg / 400 lbs.
- Shipping weight
- 186 kg / 409 lbs.
- Assembled dimensions
- 215 x 85 x 142 cm / 84.6” x 33.5” x 56”
Construction, comfort & adjustment
- CSAFE Ready-FitLinxx Certified
- No
- Pro:Idiom Compatible
- No
- Web Connectivity
- No
- Multimedia Playback
- No
- IPTV Compatible
- No
- Virtual Active Compatible
- No
- Reading Rack
- No
- Integrated Vista Clear Television Technology
- No
- FitTouch Technology
- No
- Personal Trainer Portal Compatible
- No
- Personal Fan
- No
- Electrical Receptacle & Plug
- NEMA 220v 6-20R
- Power requirements
- 20-amp dedicated circuit required, non-looped grounded
- Tread Sense
- Yes. Engages above 0.8 kph / 0.5 mph
- Facility Communication Portal/Calendar
- No
- Crossbar Controls
- No
- One-button Start
- Yes
- Pause Function
- Yes
- Deck Type
- Ultimate hard-wax reversible 1” deck
- iPod / iPhone Compatible
- Charging only
- FITCONNEXION Ready
- No
- On-the-fly Program Change
- Yes
Display, data & connectivity
- Display type
- Dot-matrix LED with profile display
- Connection USB
- Yes
- Bluetooth Enabled
- No
- RFID Compatible
- No
- Secondary Data Display
- No
- Workout programs
- Manual, Rolling Hills, Fat Burn, 5k, 10k, Target HR, Gerkin Protocol, Army PFT, Navy PRT, Marine PFT, Air Force PRT, Physical Efficiency Battery (PEB), WFI Protocol
- User-defined Multi-language Display
- Accessible only through manager menu: English, German, French, Italian, Spanish, Dutch, Portuguese, Japanese, Swedish, Finnish, Turkish, Polish, Russian, Danish
- Contact & telemetric heart rate
- Yes
- Connectivity Wi-Fi
- Optional
- Workout feedback
- Time of Day, Time Elapsed, Time Remaining, Distance (Kilometers or Miles), Calories, Calories per Hour, Speed, Incline, Pace, Average Pace, Heart Rate, METs, Watts, Workout Profile, Forward/Reverse
- Workout Tracking Network Compatible
- No
- Asset management compatibility
- Yes
Performance & training system
- Incline range
- 0-15% (590-kg / 1,300-lb. thrust elevation motor)
- Belt Type
- Habasit, 2-ply commercial grade
- Speed range
- 0.16 – 19.3 km/h / 0.1 – 12 mph forward / 0.16 - 6.4 km/h 0.1 - 4 mph reverse
- Drive system
- Matrix 4.2 hp AC Dynamic Response Drive System
- Cushion System
- Ultimate Deck cushioning system
- Running Area
- 152 x 51 cm / 60” x 20”
