MATRIX / Aura
Biceps curl

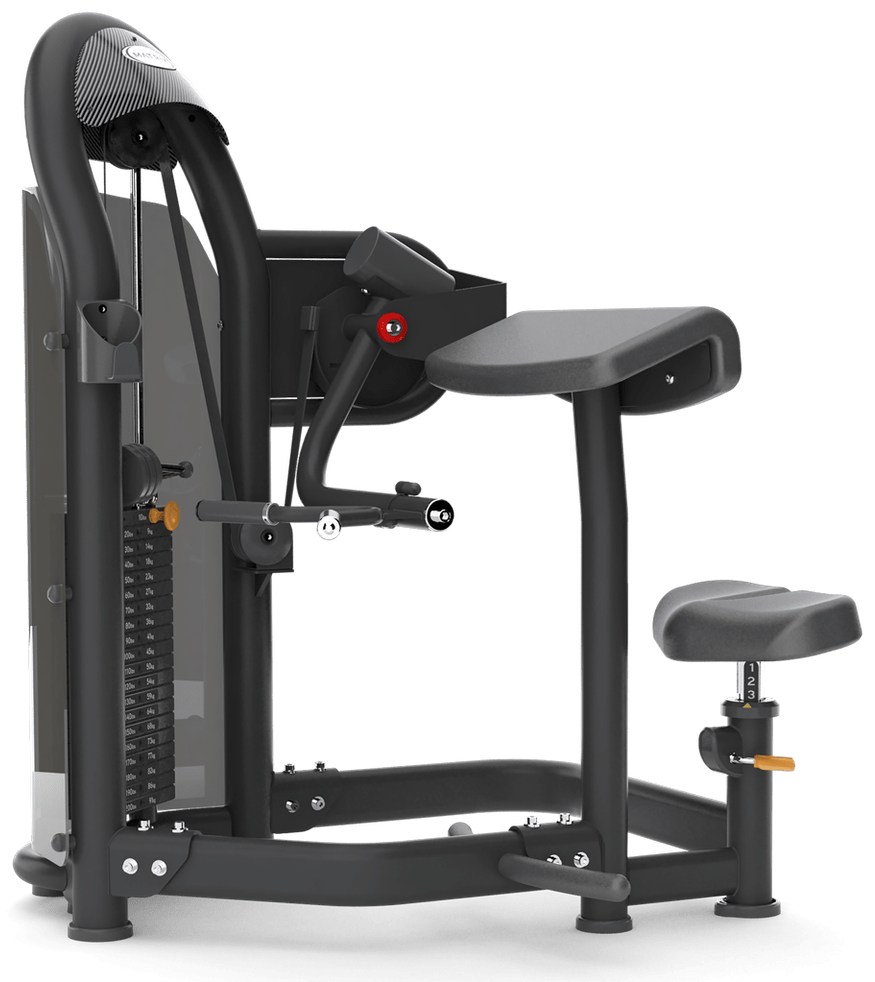

Aura Arm Curl
A selectorized weight stack station for arm training.
- Color-coded adjustment points.
- Dimensions (L × W × H)
- 122.2 × 108.6 × 150.6 cm
- Weight stack
- 91 kg
PRODUCT DATA / G3-S40
All the details in one place.
Manufacturer specifications for the displayed version. Static and in-use dimensions are listed separately where published. Clearance, electrical and anchoring requirements will be verified during installation planning.
Performance & training system
- Belt transmission
- Reinforced 15/16” flat Kevlar/urethane belt
- Weight selection pins
- Magnetic & tethered
- Self-lubricating weight stack bushings
- Solid cold-rolled steel plate, with Teflon inner bushings.
- Cushioning system
- 3-Point Design
- Weight stack
- 91 kg / 200 lbs.
- Upholstery Ergo Form
- Yes
Dimensions, weight & installation
- Dimensions (L × W × H)
- 122.2 x 108.6 x 150.6 cm / 48.1” x 42.8” x 59.3”
- Shipping weight
- 245 kg / 540 lbs.
- Total weight
- 228 kg / 502 lbs.
Construction, comfort & adjustment
- Pulley covers & guards
- Yes
- Instruction placards
- Yes
- Bottle & towel holder
- Yes
- Pivot & adjustment markings
- Yes
- Frame finish
- Manufacturer’s proprietary two-coat powder process
- Internal frame tubing
- Yes
- Frame color
- Iced Silver
Product features — manufacturer details
- Optimized pivot location creates a biomechanically correct range of motion
- Angled hand grips ensure optimal wrist position
- Arm pad is angled for stability, and limits unwanted shoulder movement during exercise
CONFIGURE YOUR MATRIX
Configuration is part of the choice.
The model, display, finish and weight stack depend on the available options. The selection tool lists Eurotec configurations and lets you add the required version to your equipment list.
Configuration and SKU are confirmed with Eurotec.
DOCUMENTS / STAY IN THE DETAILS
Product dossier & manufacturer documents.
Printable product dossier
The images, specifications and options on this page, formatted for printing or saving as PDF through your browser.
Strength catalog 2026
The complete manufacturer catalog opens in a separate tab. Your product dossier stays open so you can continue selecting equipment.
Open catalog · PDFKnowledge library
More catalogs, PACE & seca, Resources for planning and equipment selection.
Explore the knowledge librarySources & manufacturer website
Specifications are based on data from MATRIX in this site’s catalog. Manufacturer specifications may change; final configuration, availability, warranty and delivery will be defined in the Eurotec quotation.
Open the source page at MATRIX ↗EXPLORE THE SERIES
